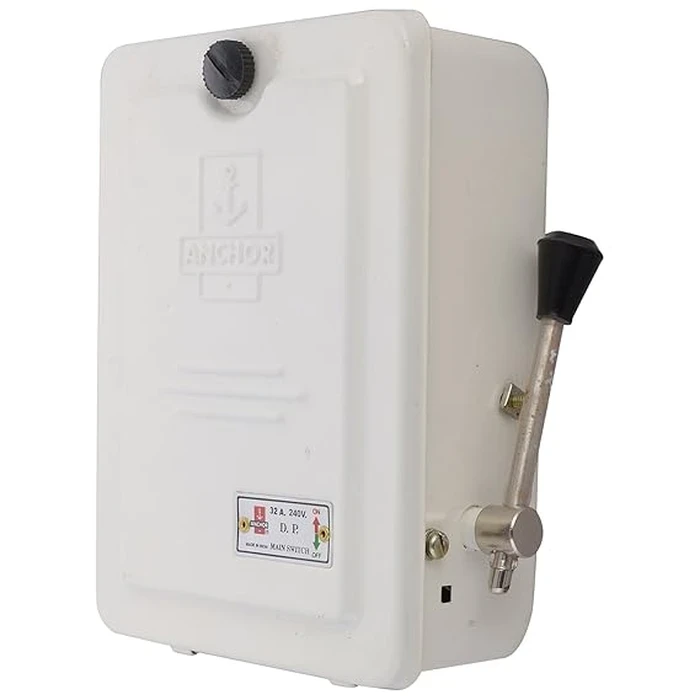

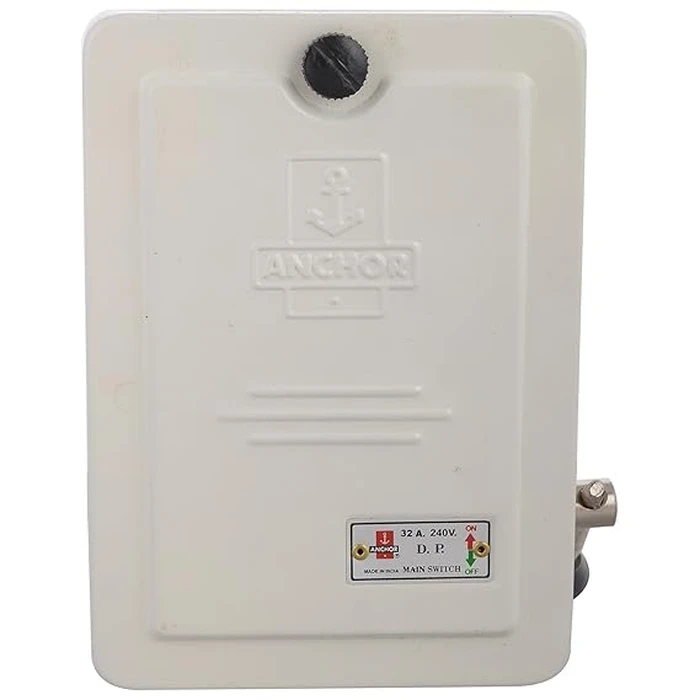

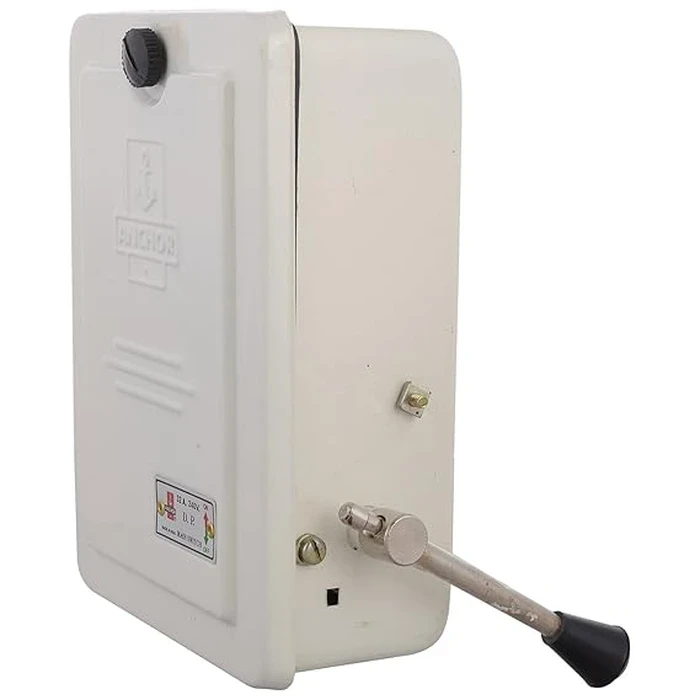

Anchor by Panasonic 32A 240V Double Pole Metal Clad Main Switch | Single-Phase Heavy-Duty Circuit Disconnector & Isolator for Distribution Panels | 17626
| Specification Category | Specification Detail |
| Brand Profile | Anchor by Panasonic |
| Model Number | 17626 |
| Product Series | Industrial Switchgear / Metal Series |
| Product Category / Type | Double Pole Main Switch (Circuit Disconnector / Isolator) |
| Rated Current Capacity | 32 Amp |
| Rated Operating Voltage | 240 V AC |
| Operating Frequency | 50 Hz |
| Number of Poles | Double Pole (2 Pole / 2P / D.P. - Phase + Neutral) |
| Switching Action | Manual Load Break / Positive Circuit Isolation (ON-OFF) |
| Contact / Terminal Material | Heavy-Gauge High-Conductivity Electrolytic Copper / Brass |
| Terminal / Connector Type | Heavy-Duty Screw Terminals for Cable Conductors |
| Enclosure Material | Metal-Clad Housing with Durable White Powder Coating |
| Product Weight | Approx. 0.320 kg (320 g) |
| Mounting / Placement | Wall Mount / Distribution Board Enclosure / Meter Service Panels |
| Ideal Applications | Residential Sub-Mains, Small Commercial Shops, Workshop Sub-Boards, Inverter & Pump Feeds |
| Best Used For | 32A Single-Phase Main Circuit Disconnection & Complete Dual-Pole Isolation across Nepal |
-
Reliable 32A Double-Pole Capacity: Engineered to safely carry and isolate continuous single-phase balanced live and neutral loads up to 32 Amps at 240V.
-
Dual-Line Positive Isolation: Simultaneously disconnects both phase and neutral lines in the OFF position, ensuring total electrical safety during servicing and emergencies.
-
High-Conductivity Copper Contacts: Heavy-gauge electrolytic copper contact blades and sturdy screw-clamp terminals minimize contact resistance and resist terminal overheating under continuous load.
-
Durable Metal-Clad Enclosure: Built inside a protective powder-coated metal housing with arc-resistant internal dielectric barriers for superior mechanical and environmental protection.
-
Positive Mechanical ON-OFF Action: Features a robust manual lever mechanism delivering clear, unambiguous tactile feedback between ON and OFF operational positions.
