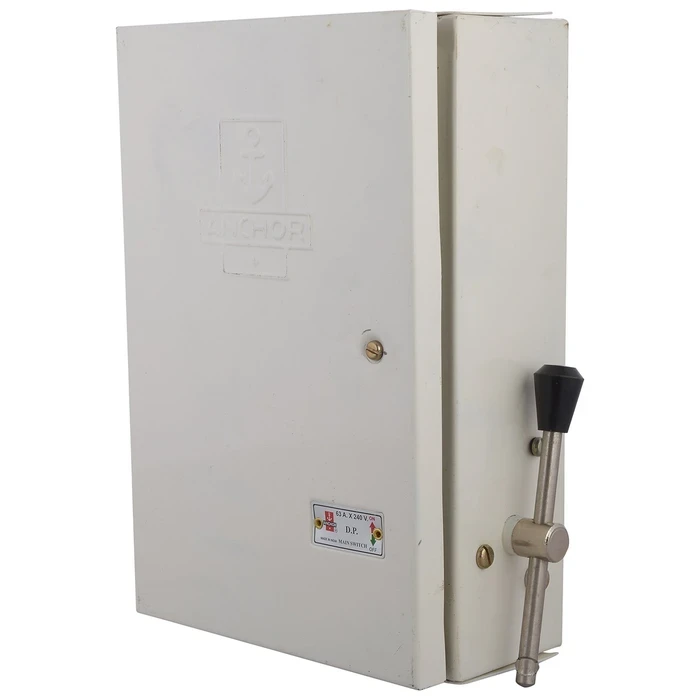

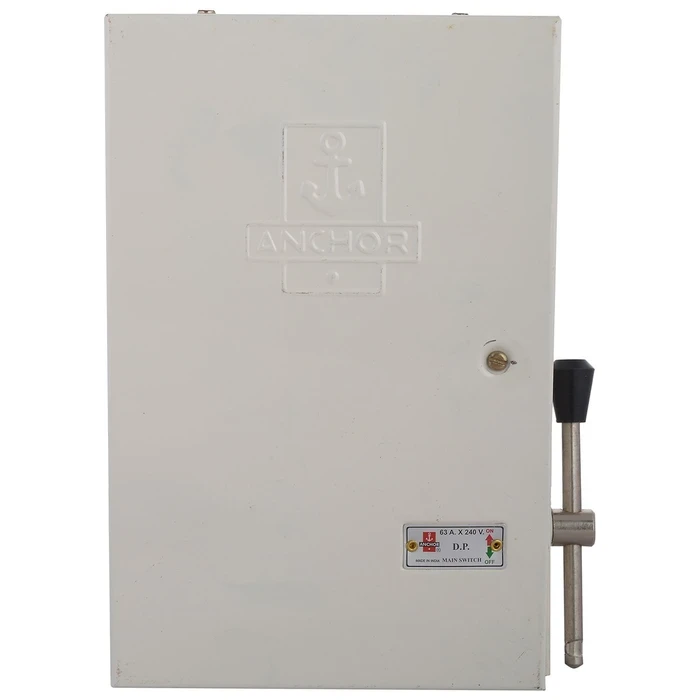

Anchor by Panasonic 63A 240V Double Pole Metal Clad Main Switch | Single-Phase Heavy-Duty Circuit Disconnector & Isolator for Distribution Panels | 17692
| Specification Category | Specification Detail |
| Brand Profile | Anchor by Panasonic |
| Model Number | 17692 |
| Product Series | Industrial Switchgear / Metal Series |
| Product Category / Type | Double Pole Main Switch (Circuit Disconnector / Isolator) |
| Rated Current Capacity | 63 Amp |
| Rated Operating Voltage | 240 V AC |
| Operating Frequency | 50 Hz |
| Number of Poles | Double Pole (2 Pole / 2P / D.P. - Phase + Neutral) |
| Switching Action | Manual Load Break / Positive Circuit Isolation (ON-OFF) |
| Contact / Terminal Material | Heavy-Gauge High-Conductivity Electrolytic Copper / Brass |
| Terminal / Connector Type | Heavy-Duty Screw Terminals for Heavy Cable Conductors |
| Enclosure Material | Metal-Clad Housing with Durable White Powder Coating |
| Physical Dimensions (L x W x H) | 23.0 x 23.0 x 7.0 cm |
| Mounting / Placement | Wall Mount / Distribution Board Enclosure / Meter Service Panels |
| Ideal Applications | Residential Main Service Panels, Commercial Retail Showrooms, Workshop Sub-Boards, High-Load Appliance Feeds |
| Best Used For | 63A Single-Phase Main Circuit Disconnection & Complete Dual-Pole Isolation across Nepal |
-
Robust 63A Double-Pole Capacity: Engineered to safely carry and isolate continuous single-phase balanced live and neutral loads up to 63 Amps at 240V.
-
Dual-Line Positive Isolation: Simultaneously disconnects both phase and neutral lines in the OFF position, providing complete electrical safety during servicing and emergencies.
-
High-Conductivity Copper Contacts: Heavy-gauge electrolytic copper contact blades and sturdy screw-clamp terminals minimize contact resistance and resist terminal overheating under continuous load.
-
Durable Metal-Clad Enclosure: Built inside a 23 x 23 x 7 cm powder-coated metal housing with arc-resistant internal dielectric barriers for superior mechanical and environmental protection.
-
Positive Mechanical ON-OFF Action: Features a robust manual lever mechanism delivering clear, unambiguous tactile feedback between ON and OFF operational positions.
