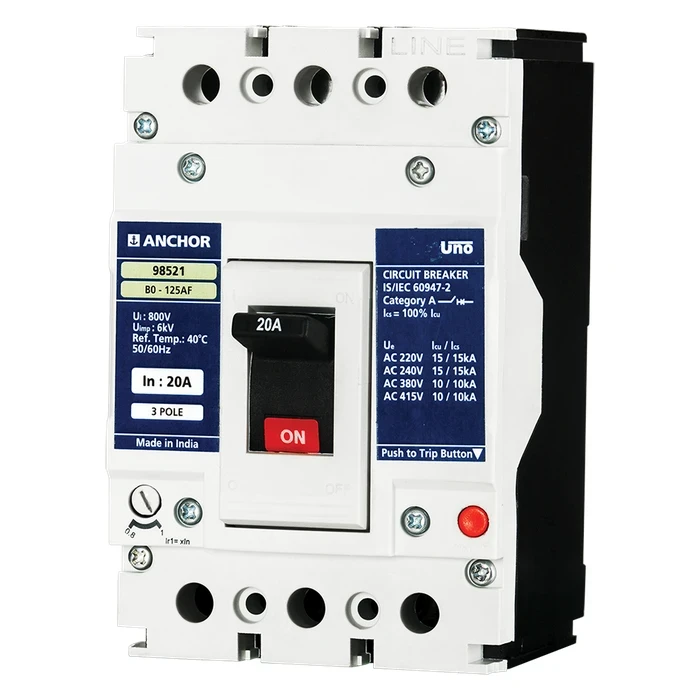

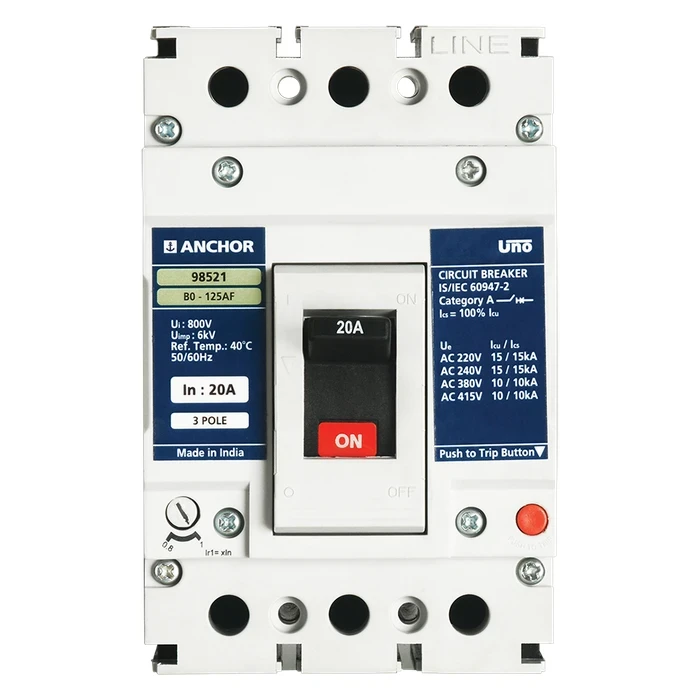

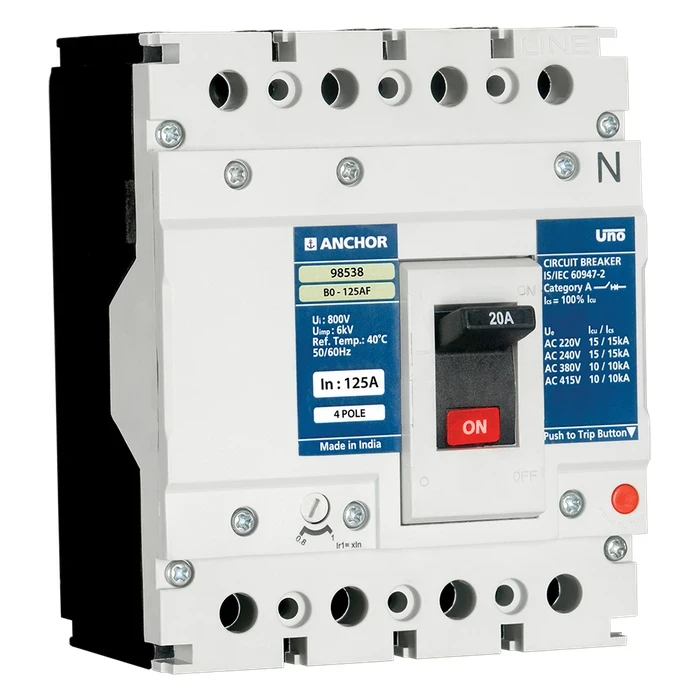

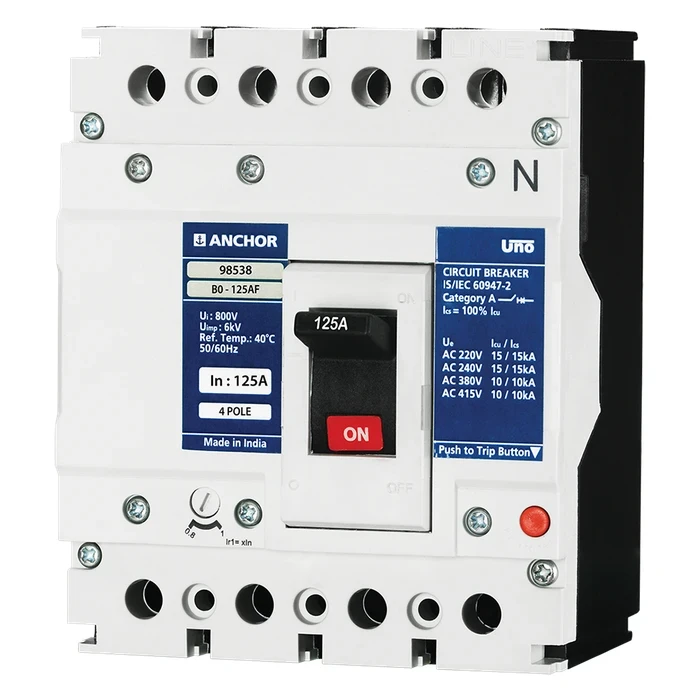

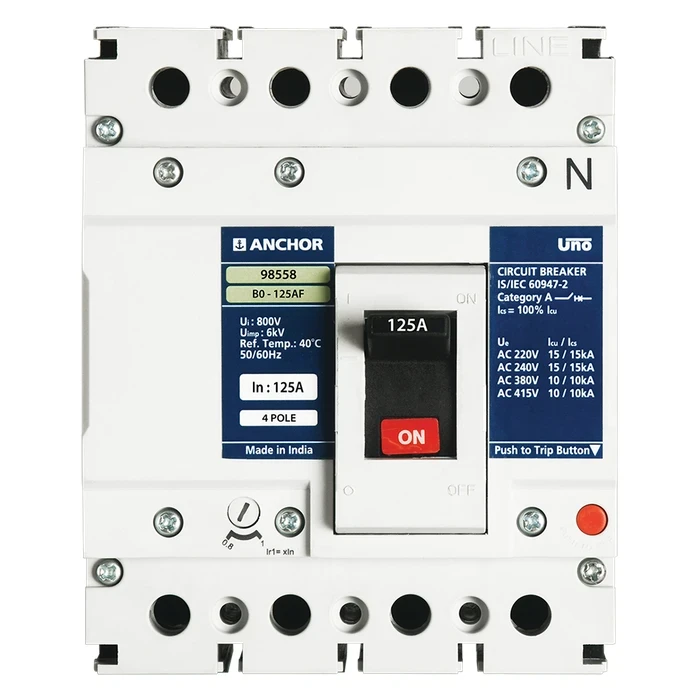

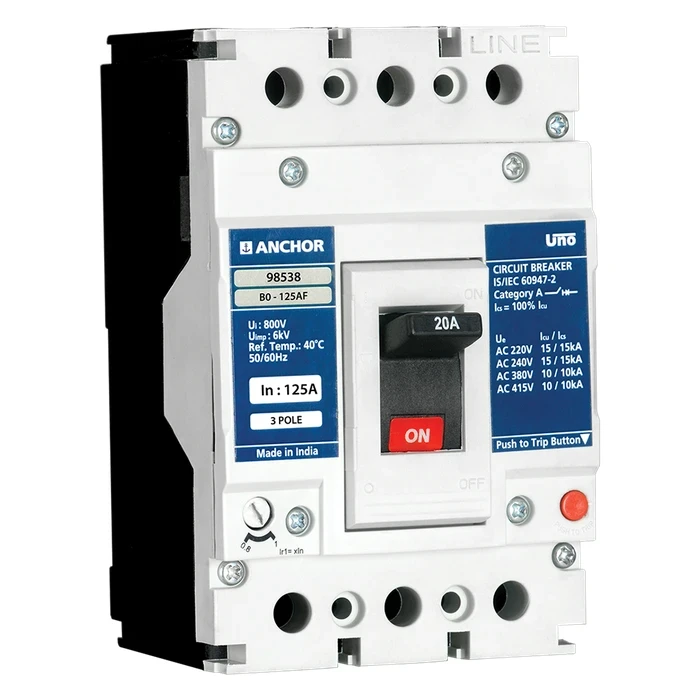

Anchor UNO B0 MCCB Series | 20A - 125A Range | 3P & 4P | 125AF 10kA | Adjustable Thermal Release Logic
| Specification | Technical Details (3-Pole Series) | Technical Details (4-Pole Series) |
| Brand | Anchor | Anchor |
| Model Numbers | 98521 to 98529 | 98530 to 98538 |
| Rated Current (In) | 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A | 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A |
| Poles | 3P (3-Pole) | 4P (4-Pole) |
| Frame Size | 125AF | 125AF |
| Breaking Capacity (Icu) | 10kA | 10kA |
| Service Capacity (Ics) | 100% Icu | 100% Icu |
| Operational Voltage (Ue) | 415V~ AC | 415V~ AC |
| Insulation Voltage (Ui) | 800V | 800V |
| Impulse Withstand (Uimp) | 6kV | 6kV |
| Release Type | Adjustable Thermal (0.8-1.0In) | Adjustable Thermal (0.8-1.0In) |
| Dimensions (LxBxH) | 15.1 x 10.5 x 8.3 CM | 17.7 x 10 x 10.16 CM |
| Unit Weight | 1 kg | 1 kg |
| Standard Compliance | IEC-60947 Part 2 | IEC-60947 Part 2 |
-
10kA High-Fidelity Breaking Logic: Engineered by Anchor to safely interrupt short-circuit currents up to 10kA, providing a robust safety shield for industrial power distribution systems.
-
Adjustable Thermal Release Matrix: Features a flexible thermal setting (0.8 to 1.0In), allowing for precise load-matching and preventing nuisance tripping in varied electrical environments.
-
3-Pole and 4-Pole Structural Versatility: Available in both 3P and 4P configurations to support comprehensive phase isolation and neutral-line protection in 415V AC infrastructures.
-
High-Durability Operational Shield: Designed for longevity with 15,000 mechanical and 3,000 electrical operations, ensuring stable performance in high-demand commercial settings.
-
IEC-60947 Certified Safety Logic: Fully compliant with international safety standards, featuring 800V insulation voltage and 6kV impulse withstand for superior electrical resilience.
