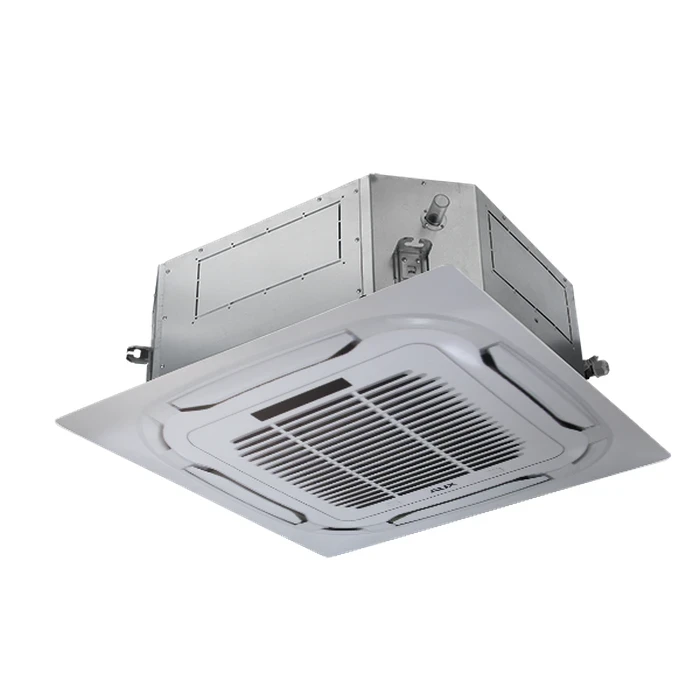

AUX 1.5 TR Ceiling Cassette Air Conditioner | 18000 BTU Cooling & 18500 BTU Heating | ALCA-H18/4DR3AB-R 4-Way Flush-Mount Commercial System
| Specification : | |
| Brand Profile | AUX Commercial Climate Control Technology |
| Series Portfolio | Freedom Commercial Series |
| Model Code Matrix | ALCA-H18/4DR3AB-R |
| Product Category | Flush-Mounted Ceiling Cassette Heating & Cooling Systems |
| Volumetric Capacity Rating | 1.5 Ton (1.5 TR Commercial Volume Suitability Profile) |
| Compressor Base Architecture | High-Stability Fixed Speed (Reliable Constant Velocity Motor) |
| Cooling Thermal Output | 18,000 BTU/h (British Thermal Units Per Hour Capacity) |
| Heating Thermal Output | 18,500 BTU/h (British Thermal Units Per Hour Capacity) |
| Air Management Matrix | Omnidirectional 4-Way Multi-Directional Air Flow Throw Panel |
| Power Consumption Band | 1150 Watts – 1230 Watts Operational Current Draw |
| Running Line Current | 14.9 A – 15.7 A Peak Current Intensity Bounds |
| Power Supply Source | 208-230V / Single Phase / 60Hz Electrical Grid |
| Refrigerant Gas Matrix | R410A High-Efficiency Heat Exchange Fluid Compound |
| Internal Pressure Bounds | Max Discharge: 4.15 MPa | Max Suction: 1.15 MPa |
| Indoor Acoustic Index | 42 dB(A) – 51 dB(A) Quiet Commercial Performance Range |
| Indoor Chassis Dimensions | 1130 mm x 330 mm x 216 mm (Net Body Profile Size) |

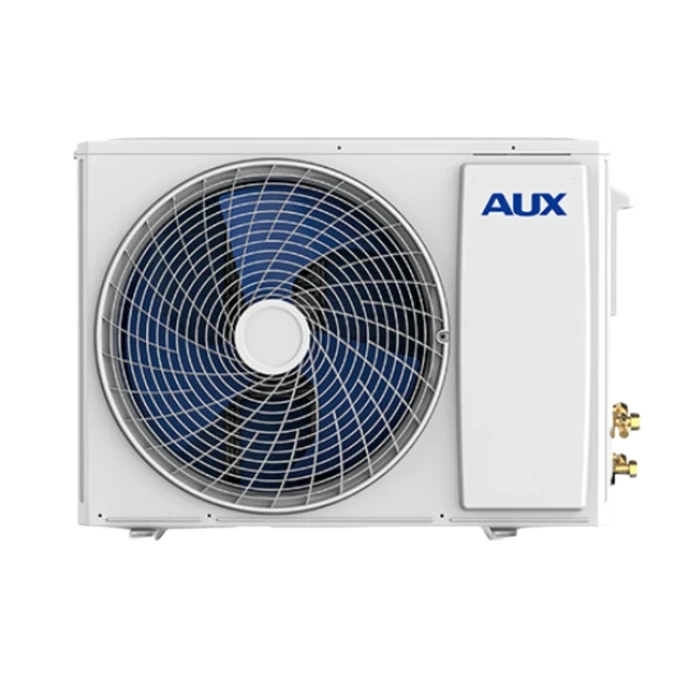

| Outdoor Condenser Dimensions | 902 mm x 635 mm x 300 mm (Net Compressor Body Size) |
| Target Application Scope | Executive Boardrooms, Commercial Offices, Retail Showrooms, Banks |
-
Flush-Mounted Architectural Integration: Sits completely flush within standard ceiling grids, keeping floor and wall spaces totally free while matching upscale modern interiors.
-
High-Capacity 4-Way Air Distribution: Outfitted with an automated 4-way motorized louver matrix that distributes large volumes of air uniformly across massive corporate or retail rooms.
-
Powerful Dual Heat & Cool Performance: Generates a robust 18,000 BTU cooling output for intense summer relief, paired with an 18,500 BTU heating mode for cold winter shifts.
-
Balanced Energy-Saving Consumption: Operates efficiently between 1150 and 1230 Watts on single-phase lines, utilizing optimized R410A fluid dynamics to minimize monthly power overheads.
-
Acoustically Dampened Low-Noise Profile: Features advanced interior fan styling that keeps acoustic vibration between 42 and 51 decibels, ensuring quiet operation during office board meetings.
