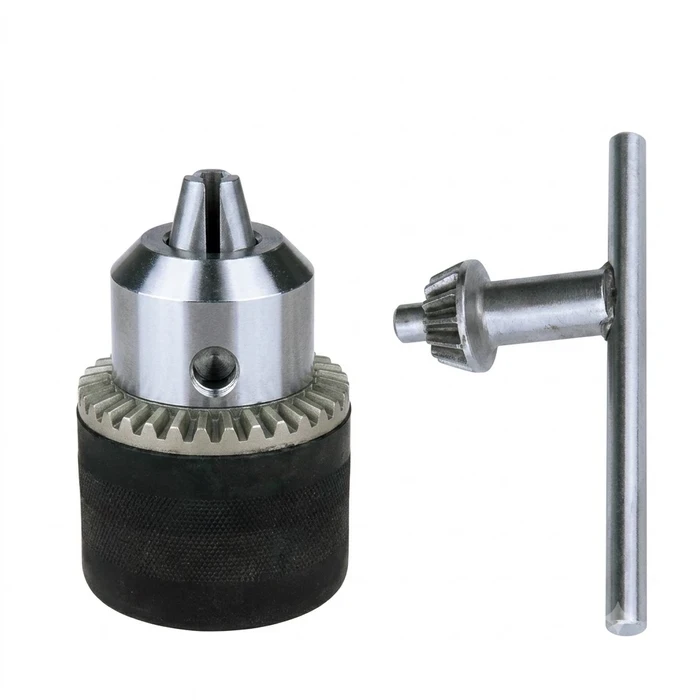

Baum Heavy Duty Key Type Drill Chuck With Hardened Steel 3-Jaw Spindle Mount For 10mm 3/8"-24UNF & 13mm 1/2"-20UNF Drilling Spindles Art-236
| Specification : | |
| Brand | Baum |
| Model Number | Art-236 |
| Type | Key Type Drill Chuck (Hardened Jaws & Scroll) |
| Body Material | Premium Industrial Grade Steel Alloy |
| Jaw Configuration | 3-Jaw Concentric Clamping Matrix |
| 10mm Variant Code | J3510D3/8-24UNF ($10 \times 10$) |
| 13mm Variant Code | J351341/2-20UNF ($13 \times 13$) |
| Mounting Threads | 3/8"-24UNF (10mm) / 1/2"-20UNF (13mm) |
| Tightening Interface | Manual Bevel Gear Chuck Key Driven |
| Durability Threshold | High-Torque Heavy Duty Resilient |
| Application Suitability | Hand Drills, Impact Hammers, Lathes, Benchtop Presses |
| Net Quantity | 1 Unit (Chuck Body + Tightening Key) |
| Ideal For | Automotive Engineering Garages, Industrial CNC Machine Shops, Metal Fabrication Plants, Construction Framing Work, Masonry Drilling Tasks, and Tool Repair Stations across Nepal |
-
Induction-Hardened 3-Jaw Core: Engineered with a premium, wear-resistant steel three-jaw layout that advances concentrically to eliminate drill bit slippage and concentricity runout.
-
Dual Spindle Thread Variations: Precision-forged into two standardized mounting setups, featuring a compact $10\text{mm}$ size matching 3/8"-24UNF threads or an industrial $13\text{mm}$ body utilizing a 1/2"-20UNF track.
-
Heavy-Duty Steel Chuck Key: Supplied with a robust, high-torque steel tightening key configured with matching bevel gear teeth to provide effortless mechanical leverage during bit changes.
-
Rugged All-Metal Protective Sleeve: Constructed from thick, commercial-grade alloy steel sheets to guard internal scroll tracks from abrasive concrete dust and metallic grit accumulation.
-
Optimized for Impact & Stationary Presses: Specially built to handle heavy rotational strains and impact stresses, making it ideal for portable hand drills, rotary hammers, and benchtop drill presses.
