Dongcheng DG Heavy-Duty Hydraulic Bottle Jack Series (3T, 5T, 10T, 16T, 32T, 50T) | Built-in Safety Overload Valve with Forged Steel Base & Welded Cylinder Body | DG Series
| Model / Capacity | Min. Height | Hydraulic Lift | Extension Screw | Max. Height | Net Weight | Primary Application |

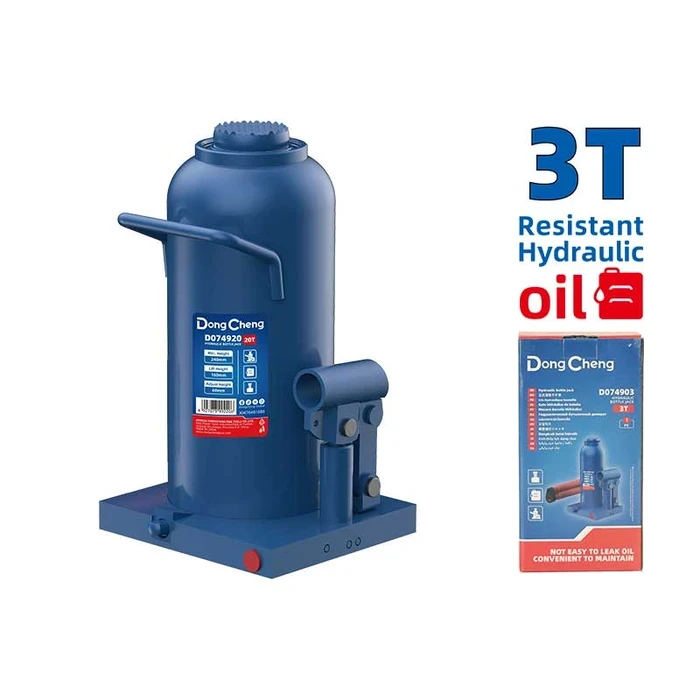

| DG 3T (3 Ton) | 193 mm | 120 mm | 60 mm | 373 mm | 2.58 kg | Sedans, SUVs, Light Pickups, Roadside Kits |
| DG 5T (5 Ton) | 210 mm | 140 mm | 70 mm | 420 mm | 3.30 kg | Delivery Vans, Small Trucks, Agricultural Tractors |
| DG 10T (10 Ton) | 230 mm | 150 mm | 80 mm | 460 mm | 5.76 kg | Commercial Trucks, City Buses, Workshop Bays |

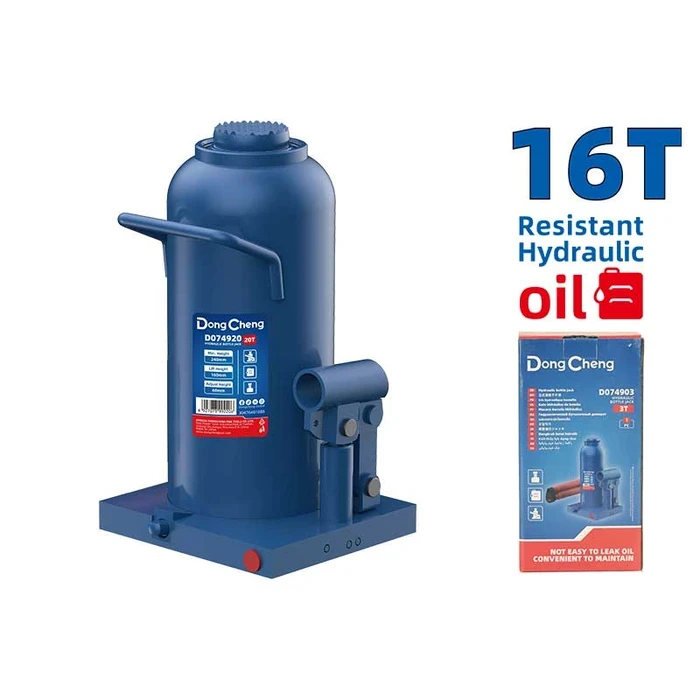

| DG 16T (16 Ton) | 230 mm | 150 mm | 80 mm | 460 mm | 7.70 kg | Multi-Axle Freight Trucks, Tipper Trucks, Heavy Fleets |

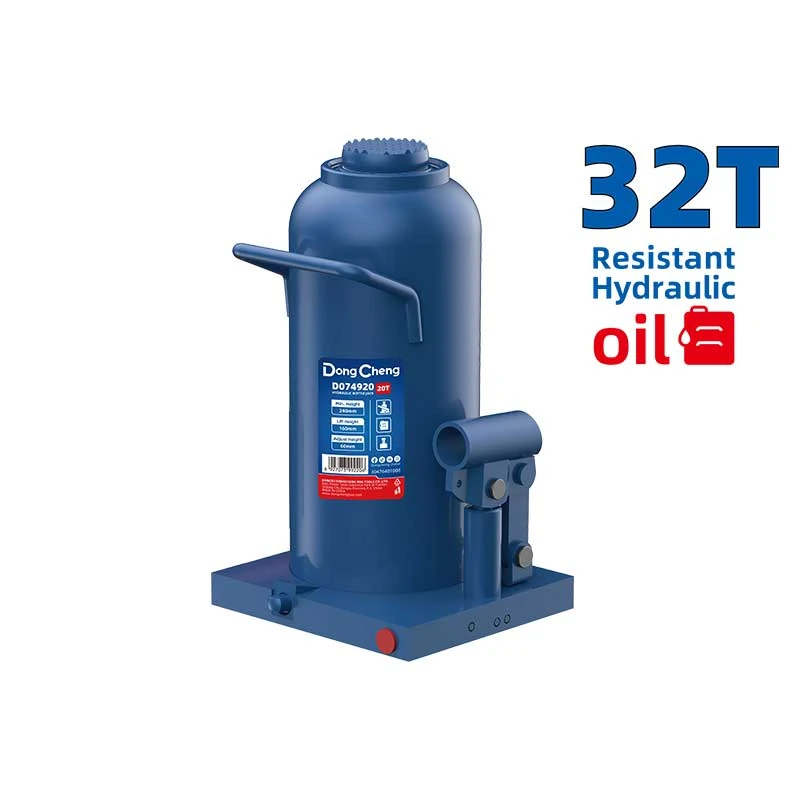

| DG 32T (32 Ton) | 260 mm | 170 mm | N/A (Direct Ram) | 430 mm | 15.85 kg | Mining Dumpers, Construction Plants, Heavy Rigging |

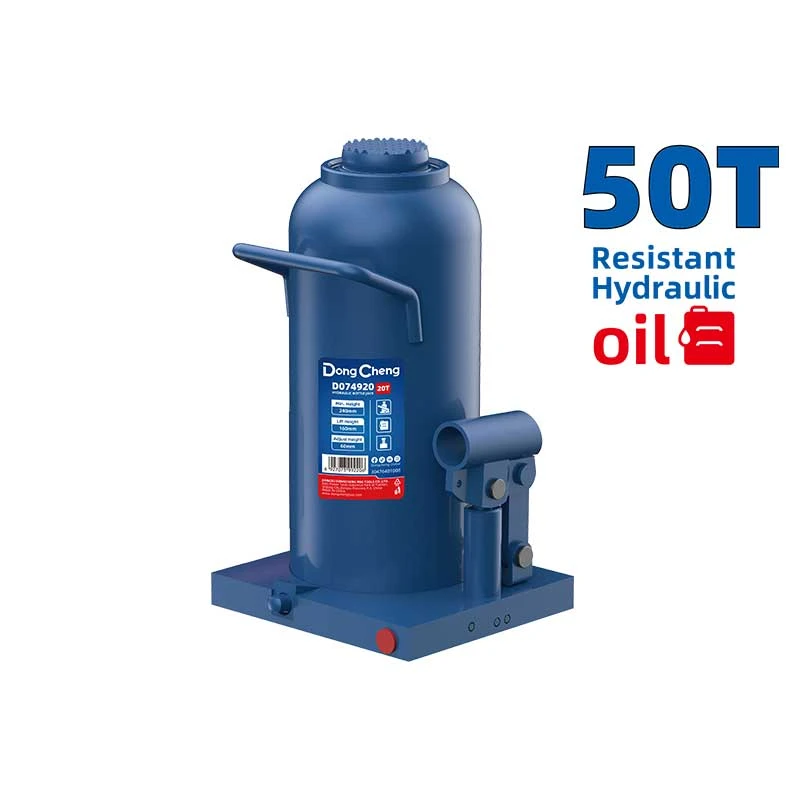

| DG 50T (50 Ton) | 280 mm | 190 mm | N/A (Direct Ram) | 470 mm | 22.60 kg | Bridges, Hydropower Sites, Locomotives, Civil Works |
-
Broad 3-Ton to 50-Ton Capacity Range: Provides precise load coverage across personal vehicles, commercial trucks, buses, tractors, mining equipment, and civil structural installations.
-
Integrated Safety Overload Bypass Valve: Factory-calibrated pressure release valve prevents operation beyond rated limits, safeguarding internal seals, equipment chassis, and operators.
-
Flexible Multi-Stage Height Adaptation: The 3T to 16T models feature smooth hydraulic ram strokes combined with threaded top extension screws to bridge chassis gaps quickly without pre-jacking.
-
Direct High-Tonnage Ram Power (32T & 50T): Extreme-tonnage models feature heavy-duty solid saddles, induction-hardened piston rams, and thick cylinder walls for massive infrastructure loads.
-
Solid Welded Steel & Cast Stabilizer Base: High-strength welded construction eliminates fluid leakage, while the wide footing footprint ensures solid balance on uneven surfaces across Nepal.
