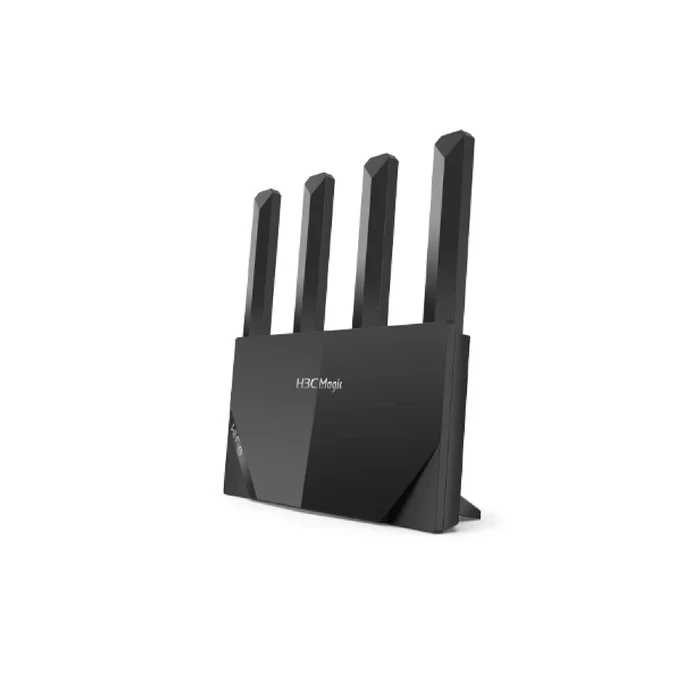

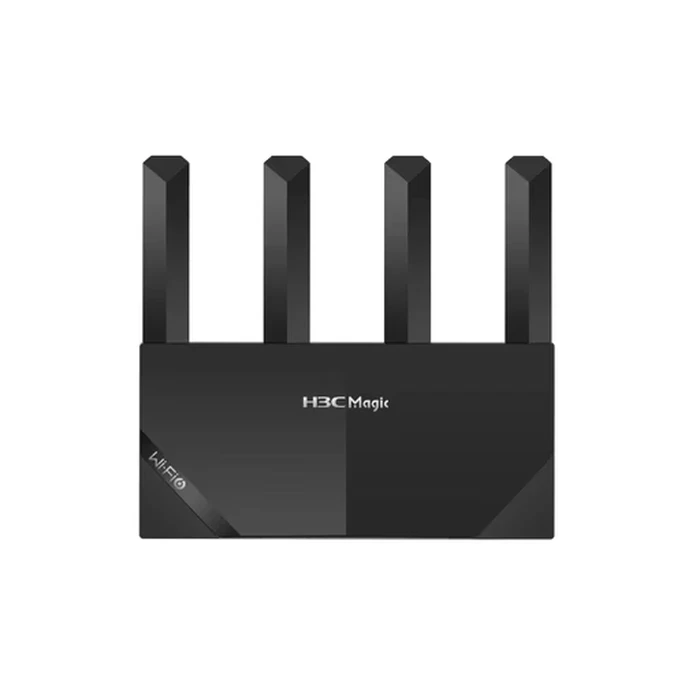

H3C Magic NX15 Wi-Fi 6 Dual-Band Gigabit Router | 1500 Mbps Wireless Rate with 4 High-Gain Antennas & Mesh Support | NX15
| Specification : | |
| Brand Profile | H3C Magic Network Solutions |
| Model Code Matrix | NX15 / H3C Magic NX15 |
| Wireless Protocol Standard | 2.4GHz: 802.11n/g/b | 5GHz: 802.11ax/ac/n/a (Wi-Fi 6) |
| Total Wireless Transmission Speed | Concurrent Dual-Band 1501 Mbps (1201 Mbps @ 5GHz + 300 Mbps @ 2.4GHz) |
| Physical Ethernet Ports | 4 x 10/100/1000BASE-T Auto-Negotiation Gigabit Ports |
| Antenna Configuration | 4 x External 5 dBi High-Gain Omnidirectional Antennas |
| MIMO & Spatial Streams | 2.4GHz 2×2 MIMO + 5GHz 2×2 MIMO (Upstream & Downstream MU-MIMO) |
| Wireless Roaming Protocol | IEEE 802.11k/v Seamless Handover |
| Network Security Protocols | WPA3, Anti-Piggybacking, Built-in Firewall, DMZ |
| Thermal Management System | Passive Cooling with Stereoscopic Heat Dissipation Channels |
| Power Consumption Index | Less than or equal to 12 W |
| Management Interfaces | H3C Magic APP (iOS & Android) and Web Management GUI |
| Internet Connection Modes | Routing Mode (DHCP/PPPoE/Static IP) | Bridge Mode (Wired/Wireless Repeating) |
| Special Software Features | Mesh Support, QoS Traffic Shaping, IPv6, DDNS, VPN Client (PPTP/L2TP) |
| Physical Chassis Dimensions | 180 mm x 195 mm x 57.3 mm (7.09 in x 7.68 in x 2.26 in) |
| Package Contents | NX15 Integrated Unit, Power Adapter, Ethernet Cable, Quick Start Guide |
| Ideal Application Environments | Modern Apartments, Corporate Offices, Retail Outlets, and High-Density Home Networks |
-
Next-Gen Wi-Fi 6 Performance: Utilizes 802.11ax technology on the 5GHz band to deliver combined wireless speeds up to 1501 Mbps (1201 Mbps on 5GHz + 300 Mbps on 2.4GHz) for ultra-fast browsing and 4K streaming.
-
4 Full Gigabit Network Ports: Outfitted with 4 high-speed 10/100/1000 Mbps Ethernet ports, providing max-bandwidth wired connectivity for desktop PCs, smart TVs, and gaming consoles.
-
Intelligent Band Steering & Mesh Support: Automatically steers connected devices to the optimal frequency band (2.4GHz or 5GHz) and integrates with H3C Mesh for seamless whole-home roaming.
-
Vertical Chassis with Stereoscopic Cooling: Designed with an elegant, space-saving vertical footprint featuring passive stereoscopic ventilation channels to ensure stable 24/7 thermal operation.
-
Advanced WPA3 Security & App Management: Fortified with cutting-edge WPA3 encryption, parental controls, and firewall safeguards, all easily configured via the intuitive H3C Magic mobile app.
