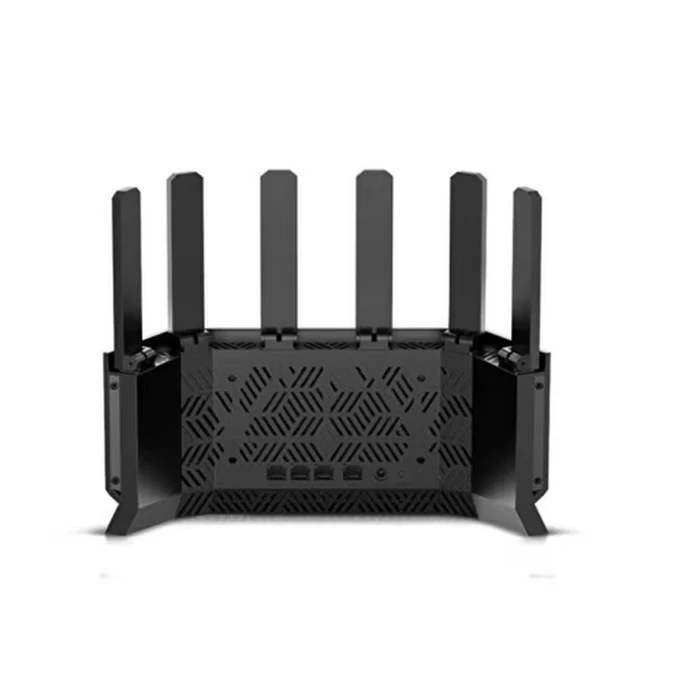

H3C Magic NX54 Wi-Fi 6 Dual-Band Gigabit Router | 5400 Mbps Speed with Qualcomm Dual-Core CPU, 4K QAM & 6 Signal Amplifiers | NX54
| Specification : | |
| Brand Profile | H3C Magic Network Solutions |
| Model Code Matrix | NX54 / H3C Magic NX54 |
| Wireless Protocol Standard | 2.4 GHz: 802.11ax/n/g/b | 5 GHz: 802.11ax/ac/n/a (Wi-Fi 6) |
| Processor & Hardware Core | Qualcomm Dual-Core 1.0 GHz CPU + Standalone NPU Engine / 6 Signal Amplifiers |
| Total Wireless Transmission Speed | Concurrent Dual-Frequency 5,378 Mbps (4,804 Mbps @ 5GHz + 574 Mbps @ 2.4GHz) |
| Physical Ethernet Ports | 4 x 10/100/1000Base-T Auto-Negotiation Gigabit Ethernet Ports |
| Antenna Configuration | 6 x External 5 dBi High-Gain Omnidirectional Antennas |
| Coverage Area Baseline | Up to 2500 Square Feet (approximate structural coverage) |
| MIMO & Spatial Flow | 2.4 GHz 2x2 MIMO + 5 GHz 4x4 MIMO (Upstream & Downstream MU-MIMO) |
| Advanced Modulation Tech | 4K QAM (20% increased data throughput capacity) |
| Channel Bandwidth Support | 2.4G: HT20/HT40 | 5G: HT20/HT40/HT80/HT160 (4T4R Channel) |
| Mesh & Gaming Accelerators | EasyMesh Topology Support + Built-in NetEase UU Game Booster |
| Security & Attack Defense | WPA3 Encryption, Anti-Wi-Fi Squatting, Wireless IDS, Firewall, DMZ, DoS Protection |
| Power Supply Requirement | 12V ⎓ 2A Power Adapter |
| Management Interfaces | H3C Magic APP (iOS & Android) and Web Management GUI |
| Physical Chassis Dimensions | 286 mm x 87 mm x 234 mm (Vertical Form Factor Layout) |
| Package Contents | NX54 Unit, Power Adapter, Cat 5e Networking Cable, Quick Start Guide |
| Ideal Application Environments | High-Bandwidth Modern Homes, Gaming Setups, Corporate Offices, and Multi-Device Commercial Spaces |
-
Enterprise Qualcomm CPU & 5400 Mbps Wi-Fi 6: Powered by a Qualcomm dual-core 1.0 GHz processor with a dedicated NPU engine, delivering concurrent wireless speeds up to 5378 Mbps (4804 Mbps on 5GHz + 574 Mbps on 2.4GHz).
-
6 External Antennas with Signal Amplifiers: Equipped with 6 external 5 dBi high-gain omnidirectional antennas and 6 independent signal amplifiers to extend reliable Wi-Fi coverage across up to 2500 sq. ft.
-
4K QAM & 160 MHz 4T4R Channel: Features 160 MHz ultra-wide bandwidth on the 5GHz 4x4 MU-MIMO stream paired with advanced 4K QAM technology, boosting data transmission density by 20%.
-
Built-in NetEase UU Game Booster: Comes pre-integrated with all-terminal gaming acceleration software to minimize ping, eliminate packet loss, and ensure smooth online multiplayer sessions.
-
EasyMesh Expansion & WPA3 Security: Supports EasyMesh topology for seamless multi-node whole-home Wi-Fi roaming, protected by WPA3 encryption, Wireless IDS, and anti-Wi-Fi squatting defense.
