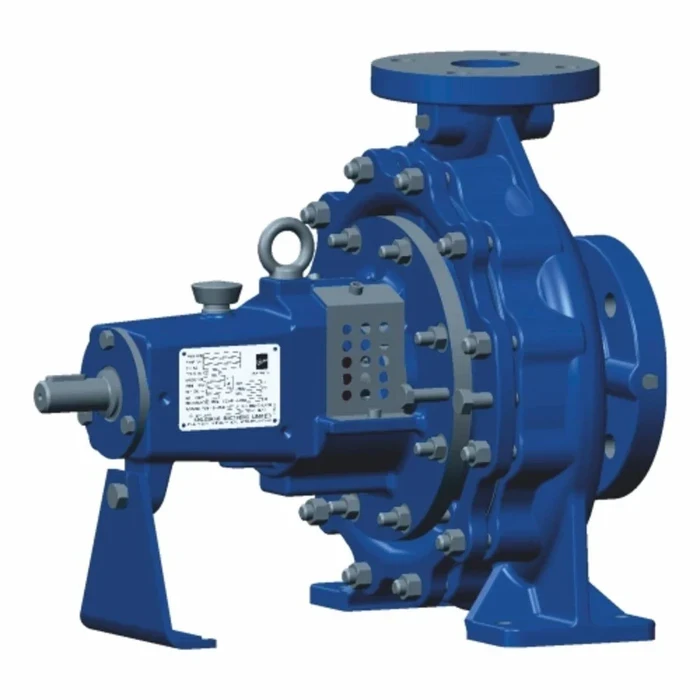

Kirloskar DBxe Series Back-Pull-Out End-Suction Centrifugal Pump | EN733 / ISO 2858 High-Efficiency 550 m³/hr Industrial Water Pump for HVAC & Utilities

Description

Specification	Parameter
Brand	Kirloskar
Series	DBxe Series
Pump Type	Horizontal Single-Stage Centrifugal End-Suction (Back-Pull-Out)
Design Standard	EN 733 / ISO 2858 Compliant
Delivery Size Range	32 mm to 150 mm
Discharge Capacity	Up to 550 m³/hr
Total Head Range	Up to 100 Meters
Operating Speed	1,450 RPM & 2,900 RPM (50 Hz) / 1,760 & 3,500 RPM (60 Hz)
Max Working Pressure (MAWP)	≤ 16 kg/cm² (16 Bar)
Fluid Temperature Range	−10°C to +120°C
Minimum Efficiency Index	MEI ≥ 0.7
Casing & Cover Material	Cast Iron / CF8M (SS316) / CF8 (SS304)
Impeller Material	Cast Iron / Bronze / CF8M / CF8 (Enclosed Balanced Design)
Shaft & Sleeve Material	Carbon Steel / SS410 / SS316 / SS304 with Stainless Steel Sleeve
Stuffing Box Sealing	Gland Packing (Standard) / Mechanical Seal (DIN & Cartridge Types)
Bearing Lubrication	Grease-Lubricated (Standard) / Oil-Lubricated (Optional)
Best Used For	HVAC Systems, Cooling Towers, Municipal Water Distribution, Firefighting & Industrial Utilities

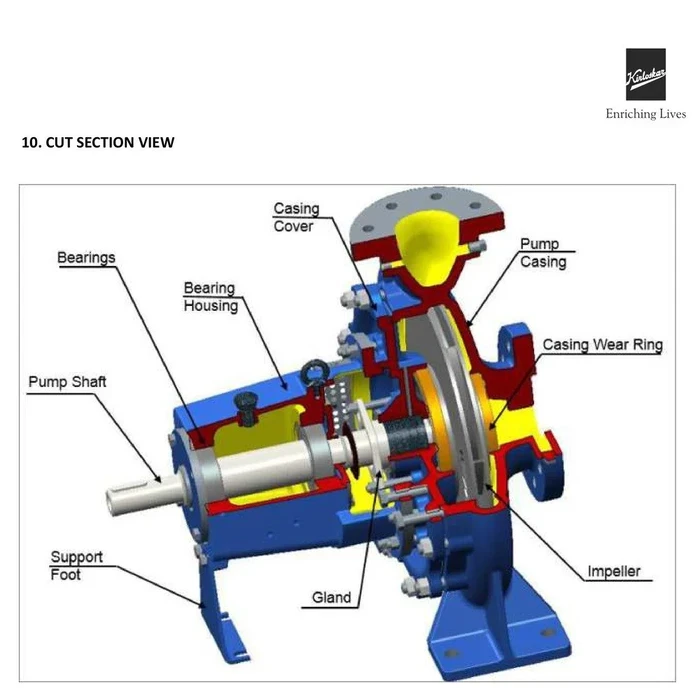

Back-Pull-Out Architecture (EN733 / ISO 2858): Enables rapid disassembly and servicing of the rotating assembly without detaching suction/discharge pipework or moving the motor.
Superior Hydraulic Efficiency (MEI >= 0.7): Optimized hydraulic volute geometry minimizes energy consumption and maintains continuous high-efficiency operation up to 550 m3/hr.
Dry Shaft Anti-Corrosion Design: The main drive shaft is completely shielded from liquid contact by a stainless steel sleeve and precision gaskets, preventing rust and mechanical wear.
Axial Thrust Neutralization: Dynamically balanced impellers utilize rear back-vanes or balancing holes to neutralize axial hydraulic thrust, drastically extending bearing operational life.
High Working Pressure & Thermal Tolerance: Built to safely handle maximum operating pressures up to 16 kg/cm2 and fluid temperatures from -10°C to +120°C across facilities in Nepal.
