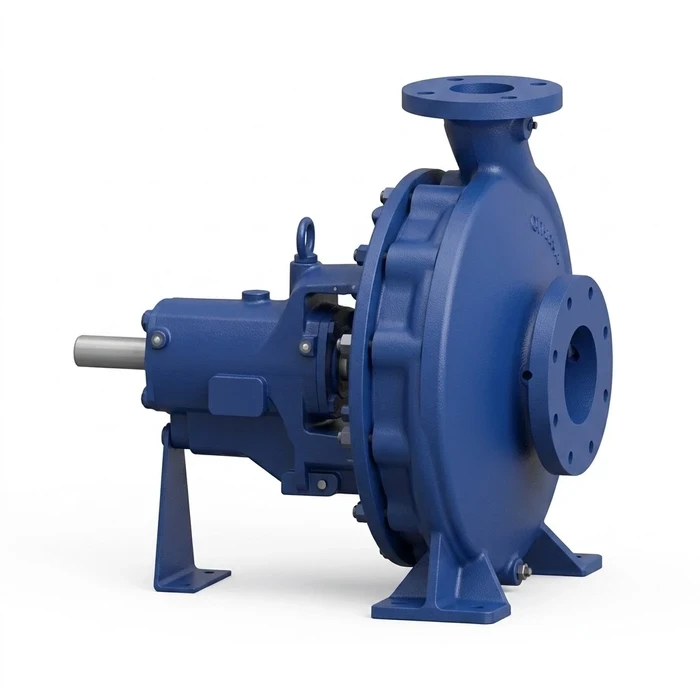

Kirloskar GK Series Heavy-Duty Back-Pull-Out End-Suction Centrifugal Pump | 500 m3/hr High-Flow Industrial Clear Water Pump for HVAC, Utilities & Municipal Supply

Description

Specification	Parameter
Brand	Kirloskar
Series	GK Series
Pump Type	Horizontal Single-Stage Centrifugal End-Suction (Back-Pull-Out)
Delivery Size Range	32 mm up to 200 mm
Discharge Capacity	Up to 500 m3/hr
Total Head Range	Up to 80 Meters (Extending higher in specialized process variations)
Operating Speed	1,450 RPM & 2,900 RPM (50 Hz)
Max Working Pressure (MAWP)	<= 16 kg/cm2 (16 Bar)
Fluid Temperature Range	-10°C to +90°C
Casing & Cover Material	Heavy-Duty Cast Iron (IS 210 FG 260)
Impeller Material	Cast Iron / Bronze / Stainless Steel (Enclosed Dynamically Balanced)
Pump Shaft Material	Carbon Steel (CS 45C8) / Stainless Steel (SS410 / SS304)
Shaft Sleeve Material	High-Grade Stainless Steel (SS410 / SS316)
Casing Wear Rings	Replaceable Cast Iron / Bronze
Stuffing Box Sealing	Gland Packing (Standard) / Mechanical Seal Options
Bearing Lubrication	Grease-Lubricated Deep Groove Ball Bearings
Best Used For	Municipal Water Supply, Industrial Utilities, HVAC Cooling Circuits & Firefighting Systems

Back-Pull-Out & Spacer Coupling Design: Allows fast inspection and servicing of the rotating assembly without unbolting suction/delivery piping connections or removing the drive motor.
Corrosion-Proof Dry Shaft Architecture: The high-tensile drive shaft is fully protected from liquid contact by an interlocking stainless steel shaft sleeve, preventing rust and mechanical erosion.
Dynamically Balanced Enclosed Impellers: Precision-balanced impellers minimize mechanical vibration, suppress operational noise, and reduce bearing wear over long continuous runs.
Replaceable Casing Wear Rings: Fitted with renewable wear rings in cast iron or bronze that prevent permanent casing erosion and preserve long-term volumetric pumping efficiency.
High Working Pressure & Thermal Tolerance: Built to withstand maximum operating pressures up to 16 kg/cm2 and fluid temperatures from -10°C to +90°C across industrial sites in Nepal.
