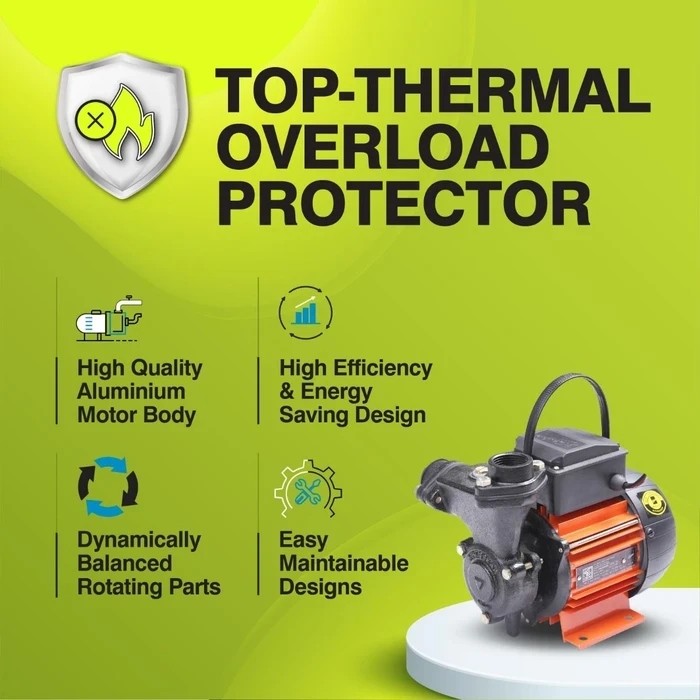

Kirloskar Jalraaj Ultra 0.5 HP Single-Phase Self-Priming Monoblock Water Pump | 26m Head & 1800 LPH Flow with Brass Impeller & Mechanical Seal

Description

Specification	Parameter
Brand	Kirloskar
Product Series / Model	Jalraaj Ultra / JALRAAJ ULTRA
Pump Type	Surface / Self-Priming Monoblock Pump
Motor Power	0.50 HP (0.37 kW)
Rated Voltage / Frequency	220V AC, 1-Phase, 50 Hz
Operating Speed	2700 RPM
Number of Stages	1 (Single-Stage)
Suction & Delivery Port Size	25 mm x 25 mm (1" x 1")
Total Head Range	6 – 26 Meters
Discharge Capacity Range	430 – 1800 LPH (Liters Per Hour)
Impeller Material	High-Grade Brass
Delivery Casing Material	Heavy-Duty Cast Iron
Motor Body Material	High-Thermal-Dissipation Aluminium
Pump Shaft Material	Carbon Steel
Sealing Type	Precision Mechanical Seal
Gross Weight	8.0 kg
Product Dimensions	29.0 x 25.5 x 15.5 cm
Net Contents	1 Pumpset Unit, 1 Strainer
Best Used For	Domestic Overhead Tanks, Bungalow Water Supply, Garden Sprinklers & Sump Boosting

Durable Hybrid Body Construction: Built with an extruded aluminium motor body for rapid thermal dissipation paired with a heavy-duty cast iron delivery casing.
Corrosion-Resistant Brass Impeller: Features a precision-machined brass impeller that prevents rust seizing and ensures smooth fluid acceleration up to 2700 RPM.
Leak-Proof Mechanical Seal: Equipped with a high-grade mechanical seal assembly that ensures zero fluid leakage and protects internal motor bearings.
Efficient 0.50 HP Self-Priming Motor: Powered by an energy-saving single-phase 220V motor delivering a head range of 6 to 26 meters and discharge rates up to 1800 LPH.
Ultra-Compact & Lightweight 8kg Build: Configured with standardized 25 x 25 mm (1" x 1") ports and an included suction strainer for quick, space-saving installation across homes in Nepal.
