Kirloskar KAM Series Heavy-Duty High-Discharge Centrifugal Monobloc Pump | CED Anti-Rust Coated Water Pump for Flood Irrigation, Construction & Bulk Transfer

Description

Specification	Parameter
Brand	Kirloskar
Series	KAM Series
Pump Type	Surface High-Discharge Centrifugal Monobloc Pump
Power Range	0.37 kW to 1.10 kW (0.5 HP to 1.5 HP)
Operating Speed	~2,760 to 2,880 RPM (2-Pole)
Operating Voltage	Single Phase: 120V–220V (Low Voltage) / 180V–240V (Standard), 50 Hz

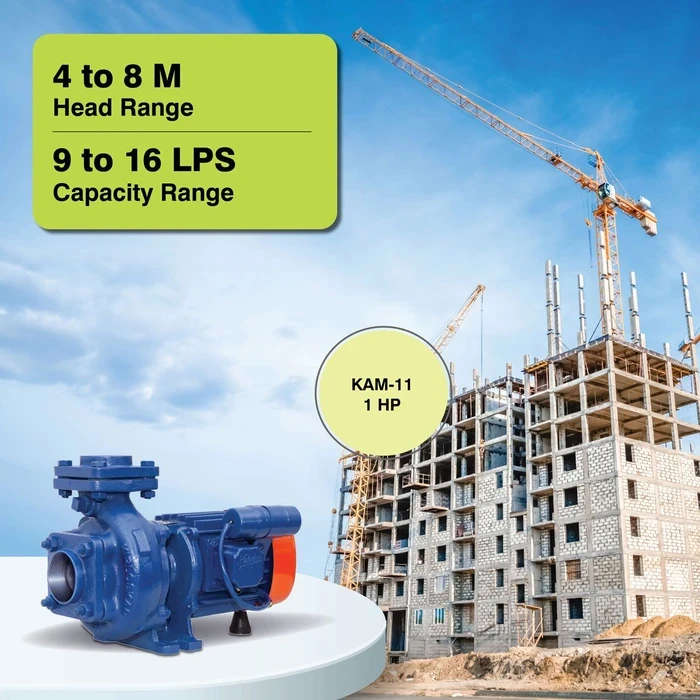

Total Head Range	Up to 19 Meters
Discharge Capacity	Up to 16 Liters per Second (LPS) / Up to 930 LPM
Insulation Class	Class B / Class F
Enclosure Protection	IP44
Surface Treatment	Cathodic Electro Deposition (CED) Anti-Rust Coating
Impeller Material	Heavy-Duty Cast Iron
Casing & Motor Body	Heavy-Duty Cast Iron
Pump Shaft Material	C-40 Carbon Steel / Stainless Steel
Best Used For	Agricultural Flood Irrigation, Lawn Sprinklers, Reservoir Transfer, Dewatering & Construction

Massive High-Discharge Flow Capacity: Delivers high volumetric fluid displacement up to 16 LPS (930 LPM) with dynamic heads up to 19 meters, ideal for agricultural flooding and rapid reservoir filling.

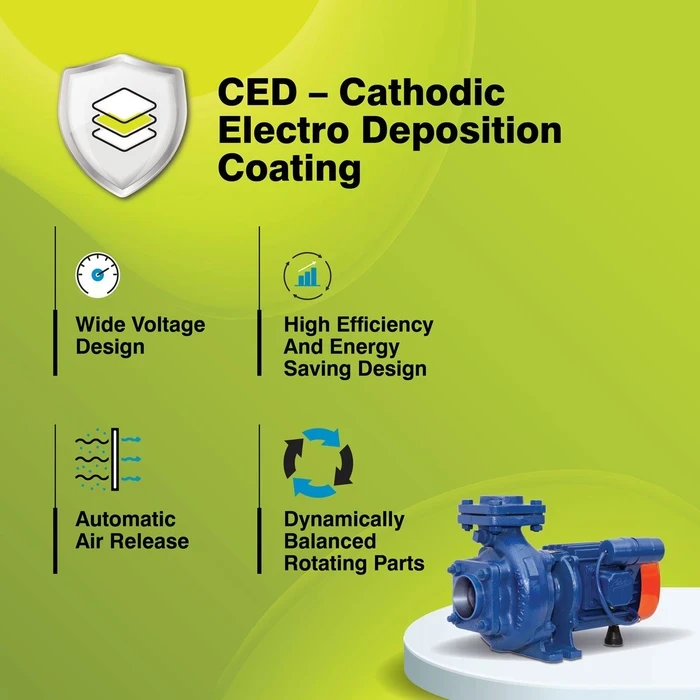

Cathodic Electro Deposition (CED) Coating: Cast iron components are treated with advanced CED anti-corrosion coating, providing comprehensive rust protection and long operational life.
Flatter Efficiency Curve & Overload Protection: Maintains consistent energy efficiency across wide operational duties and protects motor windings from overloading during low-head, high-volume flow.
Automatic Air Release System: Features an integrated self-venting mechanism that automatically expels air pockets upon startup to ensure quick, hassle-free priming.
Wide Voltage Tolerance & Low-Vibration Build: Built with dynamically balanced rotating parts and a resilient motor supporting voltage drops down to 120V, delivering smooth performance across job sites in Nepal.
