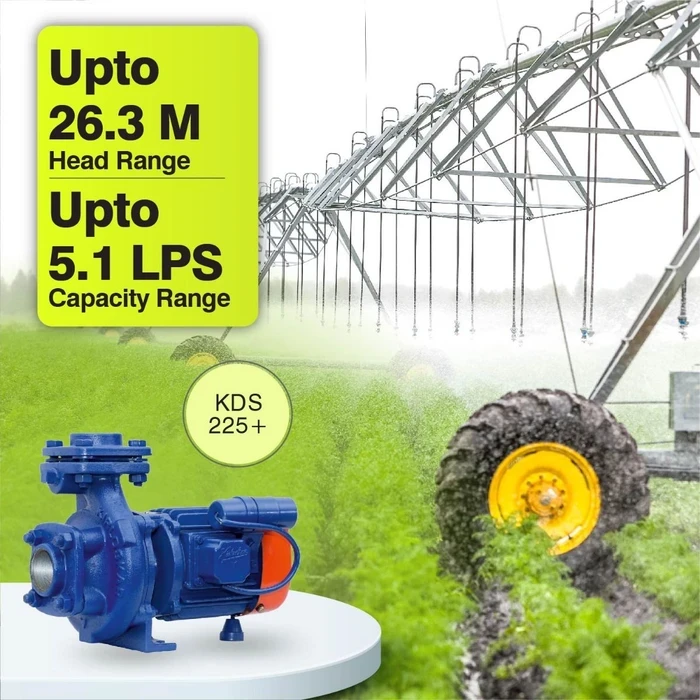

Kirloskar KDS Series Heavy-Duty Centrifugal Monobloc Pump | CED Anti-Rust Coated High-Efficiency Water Pump for Agriculture, Buildings & Industrial Transfer

Description

Specification	Parameter
Brand	Kirloskar
Series	KDS Series
Pump Type	Surface Centrifugal Monobloc Pump
Power Range	0.37 kW to 22 kW (0.5 HP to 30 HP)
Operating Speed	~2,760 to 2,930 RPM (2-Pole)
Operating Voltage	Single Phase (180V–240V) / Three Phase (300V–440V), 50 Hz
Total Head Range	Up to 76 Meters
Discharge Capacity	Up to 49 Liters per Second (LPS)
Insulation Class	Class B (up to 7.5 HP) / Class F (above 7.5 HP)
Enclosure Protection	IP44 / IP55
Surface Treatment	Cathodic Electro Deposition (CED) Anti-Corrosion Coating
Materials of Construction	Cast Iron/Noryl Impeller, Cast Iron Casing & Body, Carbon/Stainless Steel Shaft
Sealing Type	Mechanical Seal or Gland Packed
Best Used For	Domestic Water Supply, Multi-Story Buildings, Agriculture, Cooling Towers & Industrial Transfer

Cathodic Electro Deposition (CED) Coating: Cast iron components feature advanced CED coating delivering 5x greater corrosion resistance over conventional paint finishes.
Flatter Efficiency Curve & Overload Protection: Maintains consistent energy efficiency across varying heads and prevents motor overheating even when operating at lower-than-rated head pressures.
Automatic Air Release System: Automatically expels trapped air during startup to ensure immediate, smooth priming without manual vent operation.
Wide Voltage Operating Design: Built to withstand supply voltage fluctuations (180V–240V for 1-Phase, 300V–440V for 3-Phase), reducing the risk of motor burnouts.
Dynamically Balanced Rotating Assembly: Precision-balanced impellers and shafts minimize operating vibration, suppress noise, and extend internal bearing service life across installations in Nepal.
