Kirloskar KDT / KDT+ Series Two-Stage Centrifugal Monobloc Pump | 102m High-Head CED Anti-Rust Coated Water Pump for HVAC, Firefighting & Industrial Boosting

Description

Specification	Parameter
Brand	Kirloskar
Series	KDT / KDT+ Series
Pump Type	Two-Stage High-Speed Centrifugal Monobloc (Volute Casing)
Power Range	0.75 kW to 15.0 kW (1.0 HP to 20.0 HP)
Operating Speed	~2,900 to 3,000 RPM (2-Pole High-Speed)
Operating Voltage	Single-Phase (180V–240V) / Three-Phase (300V–440V Wide Voltage), 50 Hz
Total Head Range	8 to 102 Meters
Discharge Capacity	Up to 19.5 Liters per Second (LPS)
Insulation Class	Class B / Class F
Enclosure Protection	IP44 / IP55
Surface Treatment	Cathodic Electro Deposition (CED) Anti-Corrosion Coating
Impeller Material	Cast Iron / Bronze / Stainless Steel (Dual Back-to-Back Setup)
Casing & Motor Body	Heavy-Duty Cast Iron
Shaft & Sleeve	Carbon Steel / Stainless Steel with Bronze Sleeve
Sealing Type	Mechanical Seal / Gland Packed
Best Used For	Industrial Water Supply, HVAC Systems, Cooling Towers, Firefighting & High-Pressure Irrigation

Two-Stage Back-to-Back Impellers: Opposing dual-impeller arrangement neutralizes hydraulic axial thrust, minimizing mechanical wear and significantly extending bearing operational life.

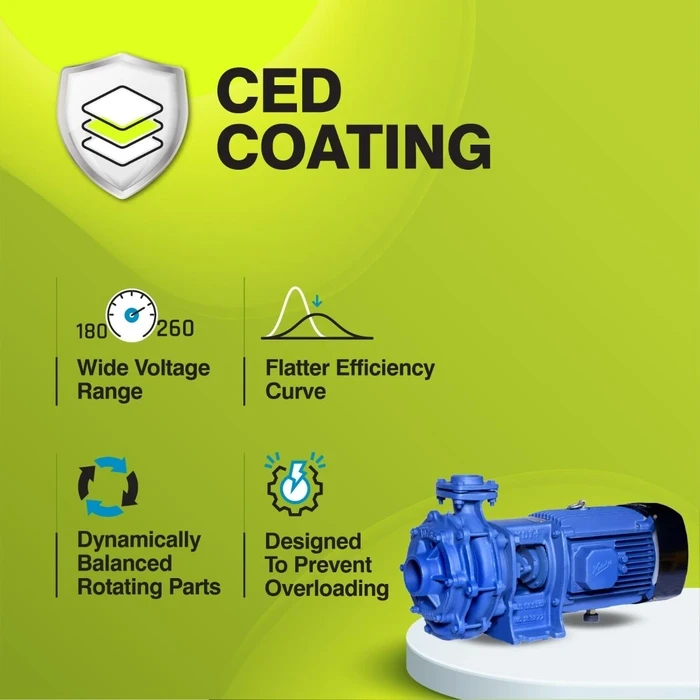

Cathodic Electro Deposition (CED) Coating: Cast iron components are treated with advanced CED coating technology, delivering 5x greater corrosion and rust resistance over standard paints.
Massive 102-Meter Dynamic Head: Engineered to produce extreme high-pressure fluid delivery reaching up to 102 meters head and flow capacities scaling up to 19.5 LPS.
Automatic Air Release & Overload Protection: Self-venting system ensures quick, hassle-free startup priming while the motor architecture prevents burnout during low-head operation.
Wide Voltage Three-Phase & Single-Phase Design: Built to operate smoothly through power grid fluctuations (180V–240V 1-Phase / 300V–440V 3-Phase) across commercial and industrial sites in Nepal.
