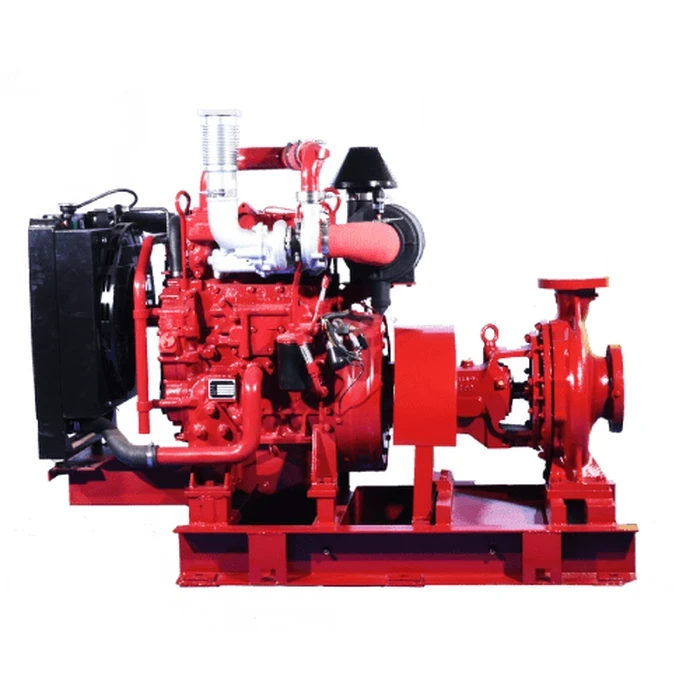

Kirloskar KFE Series Diesel Fire Engine Pump Set | NFPA 20 Compliant Skid & Trailer Mounted Emergency Firefighting Centrifugal Pump (Up to 1000+ $m^3/hr$ & 150m Head)

Description

Specification	Parameter
Brand	Kirloskar
Series	KFE Series
Pump Type	Diesel Engine-Driven Fire Fighting Centrifugal Pump Set
Design Standards	NFPA 20 Compliant Guidelines
Drive Configuration	Heavy-Duty Industrial Diesel Engine (Direct-Coupled)
Operating Speed	~1,450 RPM & ~2,900 RPM (4-Pole / 2-Pole)
Discharge Capacity	Up to 1,000+ m3/hr (Modular flow tiers)
Total Head Range	Up to 150+ Meters
Max Working Pressure (MAWP)	Up to 16 Bar
Engine Cooling Type	Raw Water Heat Exchanger Recirculation / Heavy-Duty Radiator
Starting Mechanism	Heavy-Duty Dual Battery Bank Electric Start with Manual Backup
Casing Material	Heavy-Duty Cast Iron (IS 210 FG 260) / Ductile Iron
Impeller Material	Bronze / Stainless Steel (CF8 / CF8M) / Cast Iron
Pump Shaft & Sleeves	High-Tensile Carbon Steel / Stainless Steel (SS410 / SS316) with Bronze/SS Sleeves
Casing Wear Rings	Replaceable Bronze Wear Rings
Mounting Format	Heavy Structural Steel Skid / Towable Road Trailer Package
Best Used For	Industrial Hydrant Networks, Oil & Gas Depots, Mobile Fire Brigades & Disaster Response Units

Grid-Independent Diesel Power: Driven by a dedicated heavy-duty industrial diesel engine, ensuring 100% operational readiness during total electrical blackout emergencies.
Strict NFPA 20 Compliance & Rising Curve: Features a continuously rising head-capacity performance curve toward shut-off, preventing engine overloading and ensuring safe hydrant line pressure.
Heavy-Duty Dual-Battery Starting System: Equipped with redundant dual-battery electric start banks alongside manual emergency backup for instant ignition after extended idle periods.
Engineered Heat-Exchanger & Radiator Cooling: Incorporates engine cooling via raw water recirculation heat exchangers or heavy-duty radiators for continuous thermal stability during long firefighting runs.
Rugged Skid & Mobile Trailer Chassis: Built on a heavy structural steel baseplate or towable all-terrain trailer chassis to absorb mechanical vibration and perform across rough sites in Nepal.
