Kirloskar KOS Series Heavy-Duty Cast Iron Openwell Submersible Pump | CED Anti-Rust Coated Water-Cooled Three-Phase Pump for Irrigation, Sumps & Municipal Supply

Description

Specification	Parameter
Brand	Kirloskar
Series	KOS Series
Pump Type	Heavy-Duty Centrifugal Openwell Submersible Pump
Power Range	0.75 kW to 11.13 kW (1.0 HP to 15.0 HP)
Power Supply	Three-Phase, 200V – 440V (Wide Voltage Design) / Single-Phase Options on select models, 50 Hz
Operating Speed	~2,840 to 2,900 RPM (2-Pole)
Motor Type	Water-Cooled (Filled with Potable Water)
Total Head Range	6 to 76 Meters
Discharge Capacity	Up to 110 $m^3/hr$ (Up to 42 LPS)
Surface Treatment	Cathodic Electro Deposition (CED) Anti-Corrosion Coating
Body & Casing Material	Heavy-Duty Cast Iron
Impeller Material	Heavy-Duty Cast Iron
Pump Shaft Material	High-Grade Stainless Steel
Best Used For	Agricultural Irrigation, Open Wells, Community Water Supply, Industrial Utilities & High-Rise Buildings

Zero-Priming Underwater Design: Operates fully submerged inside open wells, sumps, and reservoirs, eliminating foot valves, suction pipe leaks, and tedious manual priming.
Potable Water-Cooled Motor: Incorporates an eco-friendly, clean-water-filled motor design for active internal thermal regulation and prevention of winding burnouts during long duty cycles.
Cathodic Electro Deposition (CED) Coating: Cast iron components are treated with CED anti-corrosion coating to provide superior rust resistance and extended underwater durability.

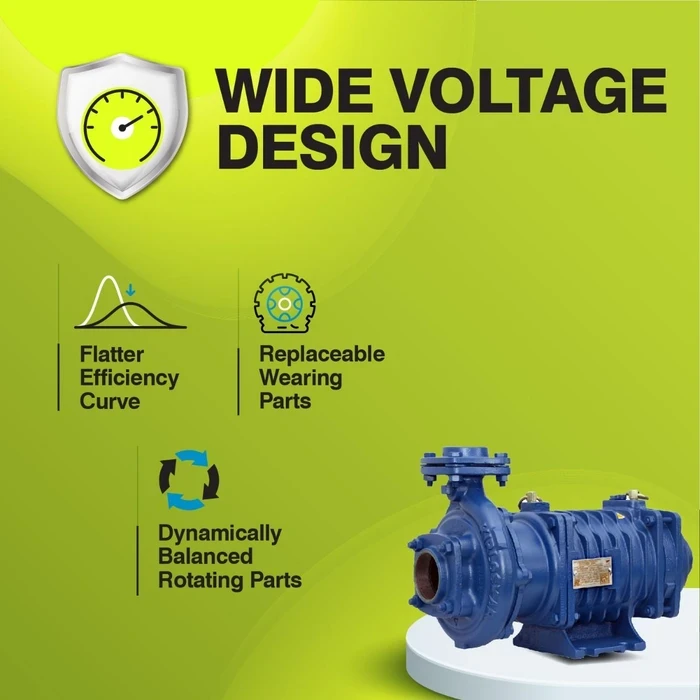

Wide Voltage Three-Phase Operation (200V–440V): Engineered with a resilient wide-voltage winding structure that resists electrical surges and prevents low-voltage motor stalling.
Heavy-Duty High-Head & High-Flow Output: Delivers high volumetric discharge rates up to 110 $m^3/hr$ and total dynamic head reach up to 76 meters across demanding installations in Nepal.
