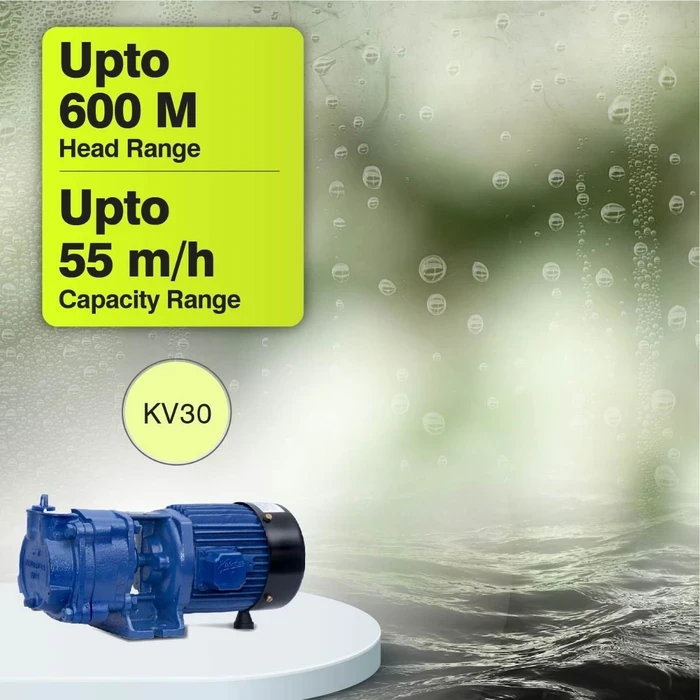

Kirloskar KV Series Water-Ring Vacuum Pump | High-Speed Centrifugal Gas Evacuation & Pump Priming Unit with Stainless Steel/Bronze Rotor

Description

Specification	Parameter
Brand	Kirloskar
Series	KV Series
Pump Type	Horizontal Centrifugal Monobloc Water-Ring Vacuum Pump
Power Range	1.0 HP (0.75 kW) to 3.0 HP (2.20 kW)
Rated Speed	~2,700 to 3,000 RPM
Operating Voltage	Single-Phase (180V–240V) / Three-Phase (300V–440V), 50 Hz
Ultimate Vacuum	Up to 600 – 650 mm of Hg (Mercury)
Air Flow Rate	Up to 55 $m^3/hr$
Insulation Class	Class B
Enclosure Protection	IP44 (IP55 optional for 3-Phase)
Rotor / Impeller Material	High-Grade Stainless Steel / Bronze
Casing & Motor Body	Heavy-Duty Cast Iron
Pump Shaft Material	Carbon Steel (Stainless Steel optional)
Best Used For	Large Centrifugal Pump Priming, Distillation, Industrial Filtration, Degassing & Bottle Filling

Ultimate Vacuum Performance (600–650 mm Hg): Delivers powerful vacuum pull up to 650 mm of Mercury with airflow extraction capacities reaching 55 $m^3/hr$ for rapid system priming and gas evacuation.
Corrosion-Resistant Stainless Steel / Bronze Rotor: Features precision-balanced impellers that eliminate corrosive degradation, fluid friction, and mechanical seizing under continuous vapor contact.
Heavy-Duty Cast Iron Construction: Built with an industrial-grade cast iron motor body and delivery casing that provides high rigidity and dampens operational vibrations.

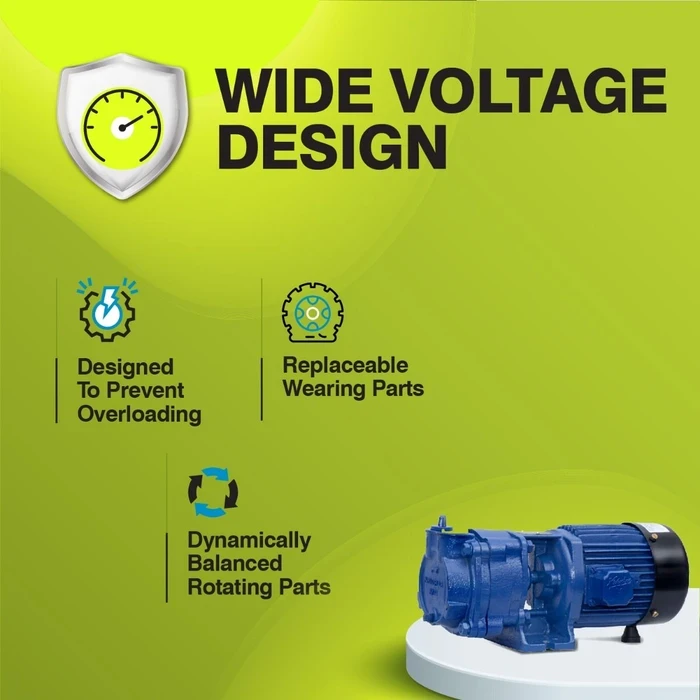

Wide Voltage Tolerance & Overload Protection: Engineered to run smoothly across voltage fluctuations (180V–240V for 1-Phase, 300V–440V for 3-Phase) with built-in motor overload protection.
Modular Serviceability & Dynamic Balancing: Precision-balanced rotating assembly extends bearing life, while modular wearing parts ensure straightforward maintenance across processing facilities in Nepal.
