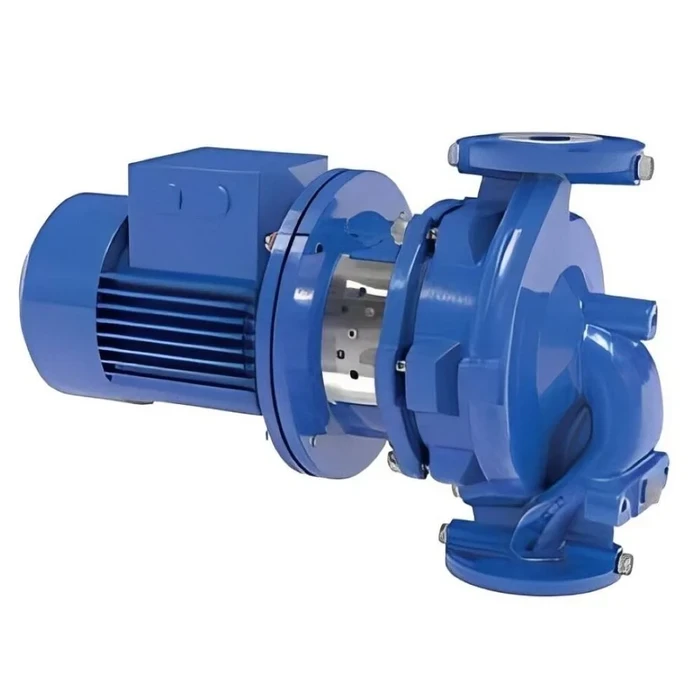

Kirloskar KW-LC Series Vertical In-Line Centrifugal Pump | 350 m3/hr & 95m Head Space-Saving PN16 Long-Coupled Pump for HVAC & High-Rise Water Systems

Description

Specification	Parameter
Brand	Kirloskar
Series	KW-LC Series
Pump Type	Vertical In-Line Single-Stage Centrifugal Pump (Long Coupled)
Operating Speed	~1,450 RPM & ~2,900 RPM (2-Pole / 4-Pole), 50 Hz / 60 Hz
Port Size Range (In-Line)	32 mm to 150 mm (Equal Suction & Delivery Diameters)
Discharge Capacity	Up to 350 m3/hr
Total Head Range	Up to 95 Meters
Working Pressure (MAWP)	Up to 16 Bar (PN16)
Fluid Temperature Tolerance	-15°C to +120°C
Casing / Body Material	Cast Iron (IS 210 FG 260) / Ductile Iron
Impeller Material	Cast Iron / Bronze / Stainless Steel (CF8 / CF8M)
Pump Shaft Material	Stainless Steel (AISI 410 / AISI 316)
Mechanical Seal Faces	Carbon vs. Ceramic / Silicon Carbide vs. Silicon Carbide
Casing Wear Rings	Replaceable Bronze / Cast Iron
Motor Coupling	Rigid or Spacer Coupling to Standard Vertical Motor Flange
Best Used For	HVAC Chilled & Condenser Water Loops, District Cooling, High-Rise Plumbing & Booster Systems

Direct In-Line Port Configuration: Suction and delivery ports lie on the same centerline, allowing the pump to install directly into existing straight pipework like a valve without offset piping.

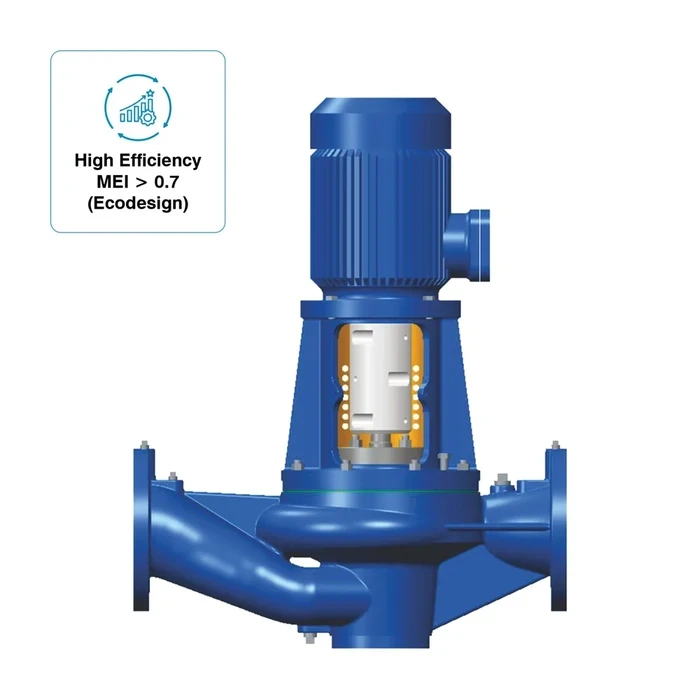

Space-Saving Vertical Architecture: Vertical long-coupled layout drastically reduces required plant room floor space compared to conventional horizontal end-suction models.
Low-Vibration Balanced Operation: Precision-balanced impellers and rigid shaft mountings suppress mechanical vibration and operating noise, ideal for noise-sensitive commercial buildings.
High-Grade Leak-Proof Mechanical Sealing: Equipped with advanced Silicon Carbide or Carbon/Ceramic seal faces, ensuring zero leakage across fluid temperatures from -15°C to +120°C.
Broad Hydraulic Output (PN16): Delivers fluid circulation scaling up to 350 m3/hr flow and 95 meters head under working pressures up to 16 bar across commercial and industrial facilities in Nepal.
