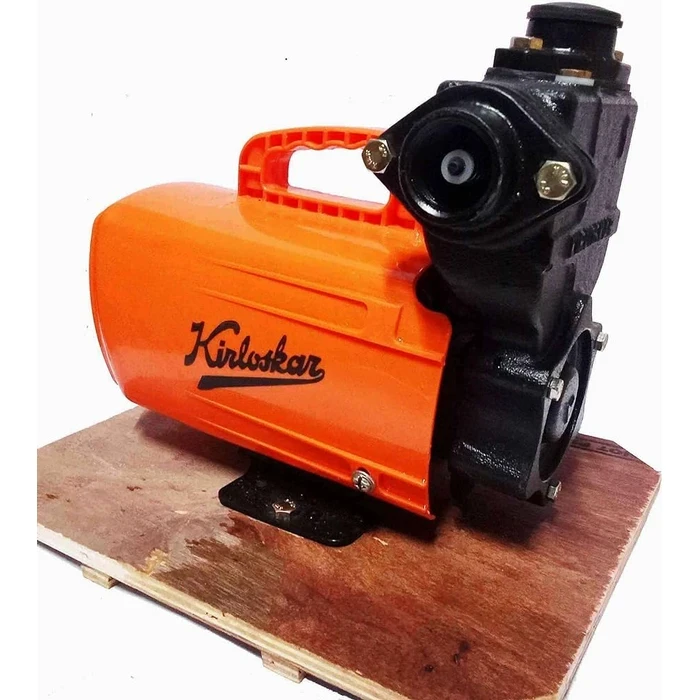

Kirloskar Mini-30C 0.5 HP Single-Phase Self-Priming Monoblock Water Pump | 28m Head & 3182 LPH Flow with Brass Impeller & Cast Iron Body

Description

Specification	Parameter
Brand	Kirloskar
Product Series / Model	Mini Series / MINI-30C
Pump Type	Surface / Self-Priming Monoblock Pump
Motor Power	0.50 HP (0.37 kW)
Rated Voltage / Frequency	220V AC, 1-Phase, 50 Hz
Operating Speed	2740 RPM
Number of Stages	1 (Single-Stage)
Suction & Delivery Port Size	25 mm x 25 mm (1" x 1")
Total Head Range	6 – 28 Meters
Discharge Capacity Range	727 – 3182 LPH (Liters Per Hour)
Impeller Material	High-Grade Brass
Body & Casing Material	Heavy-Duty Cast Iron
Pump Shaft Material	Carbon Steel
Gross Weight	16.0 kg
Product Dimensions	35.5 x 32.0 x 28.6 cm
Net Contents	1 Pumpset Unit, 1 Strainer
Best Used For	Domestic Overhead Tanks, Residential Water Supply, Gardens & Sump Boosting

Heavy-Duty Cast Iron Construction: Engineered with a rugged cast iron motor body and delivery casing to resist physical impact, dampen operational vibration, and extend working life.
Corrosion-Resistant Brass Impeller: Outfitted with a precision-machined brass impeller that prevents rust formation and delivers smooth fluid acceleration up to 2740 RPM.
Efficient 0.50 HP Self-Priming Motor: Powered by an energy-efficient 0.50 HP single-phase motor designed to lift water from shallow sumps and mains without requiring manual re-priming.

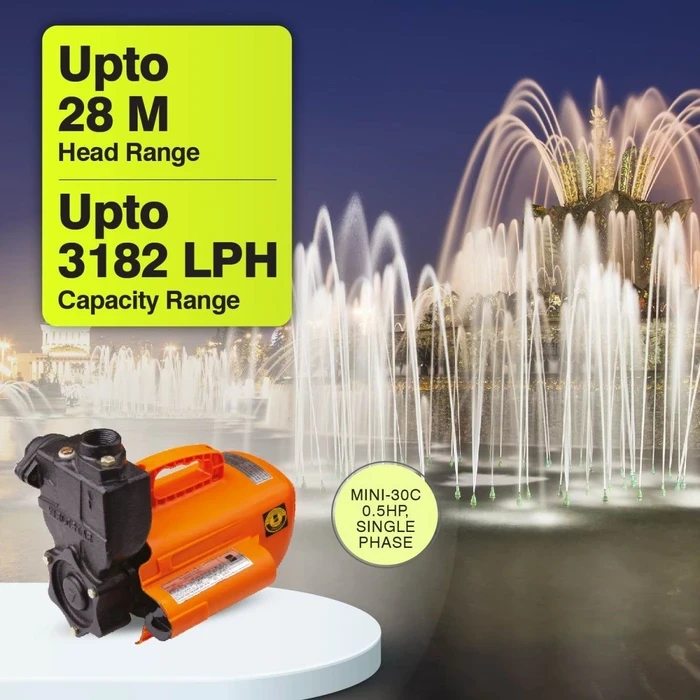

Dynamic Head & Flow Delivery: Generates a robust total head reach of 6 to 28 meters with high-volume discharge capacities scaling up to 3182 LPH for rapid tank filling.
Standardized 25mm (1") Inlet/Outlet Ports: Features 25 x 25 mm threaded connections and includes a dedicated suction strainer for quick plumbing integration across homes in Nepal.
