Kirloskar Mini-40C 1.0 HP Single-Phase Self-Priming Monoblock Water Pump | 40m High-Head & 3010 LPH Flow with Brass Impeller & Aluminium Body

Description

Specification	Parameter
Brand	Kirloskar
Product Series / Model	Mini Series / MINI-40C
Pump Type	Surface / Self-Priming Monoblock Pump
Motor Power	1.00 HP (0.75 kW)
Rated Voltage / Frequency	220V AC, 1-Phase, 50 Hz
Operating Speed	2700 RPM
Number of Stages	1 (Single-Stage)
Suction & Delivery Port Size	25 mm x 25 mm (1" x 1")
Total Head Range	6 – 40 Meters
Discharge Capacity Range	790 – 3010 LPH (Liters Per Hour)
Impeller Material	High-Grade Brass
Motor Body Material	High-Thermal-Dissipation Aluminium
Delivery Casing Material	Heavy-Duty Cast Iron
Pump Shaft Material	Carbon Steel
Gross Weight	12.0 kg
Product Dimensions	32.5 x 27.5 x 18.0 cm
Net Contents	1 Pumpset Unit, 1 Strainer
Best Used For	Multi-Story Overhead Tanks, Domestic Water Supply, Gardens & Sump Boosting

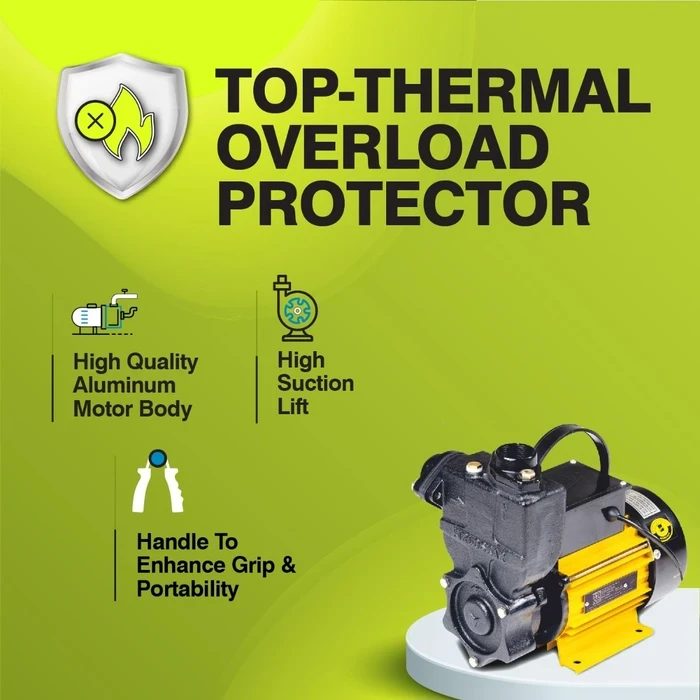

Durable Hybrid Body Construction: Built with an extruded aluminium motor body for fast heat dissipation and a rugged cast iron delivery casing to withstand high hydraulic pressures.
Corrosion-Resistant Brass Impeller: Features a precision-machined brass impeller that prevents rust seizing, reduces wear, and ensures steady water acceleration up to 2700 RPM.
Powerful 1.00 HP Self-Priming Motor: Equipped with an energy-efficient 1.0 HP single-phase motor that effortlessly evacuates air from suction lines for quick, hassle-free startup.

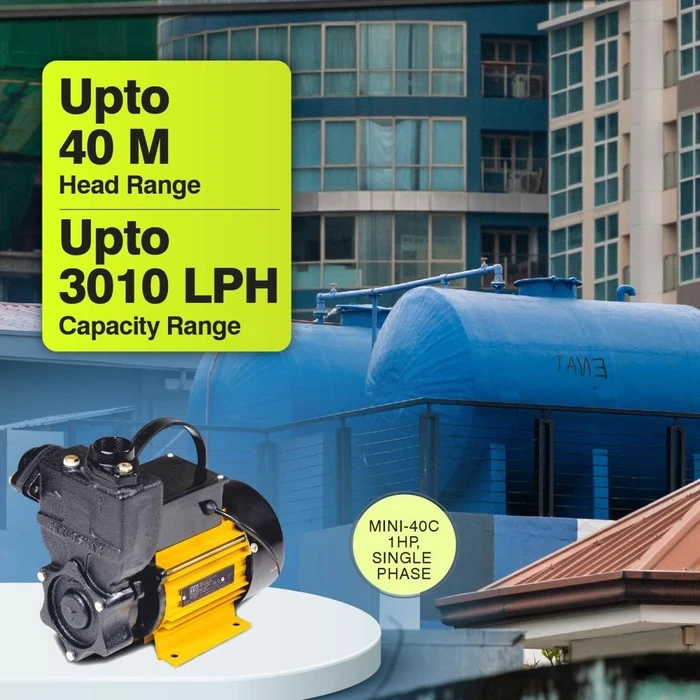

Extended 40-Meter Dynamic Head: Delivers an impressive head range of 6 to 40 meters with high-volume output up to 3010 LPH, making it ideal for multi-story overhead tank lifting.
Compact & Standardized 25mm Ports: Configured with 25 x 25 mm (1" x 1") inlet and outlet ports and an included strainer within a compact 12kg chassis for easy residential installation across Nepal.
