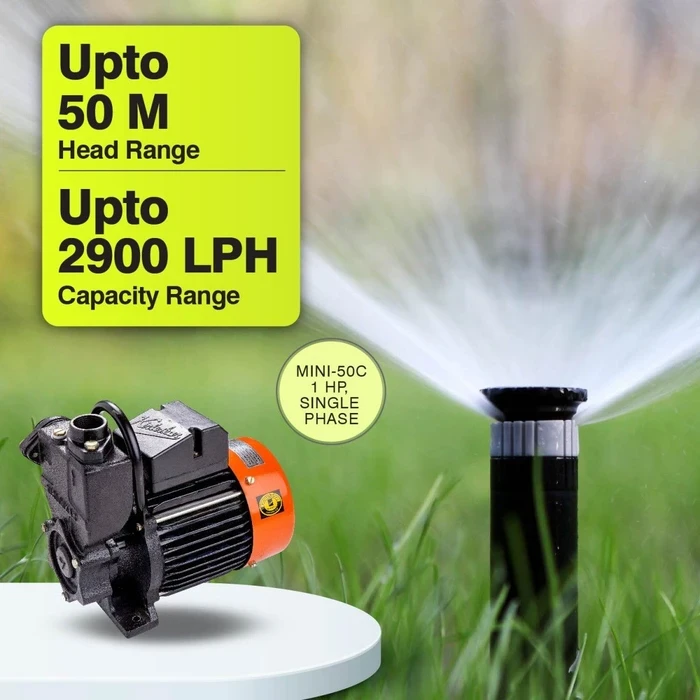

Kirloskar Mini-50C 1.0 HP Single-Phase Self-Priming Monoblock Water Pump | High-Head 50m & 2900 LPH Flow with Brass Impeller & All-Cast-Iron Body

Description

Specification	Parameter
Brand	Kirloskar
Product Series / Model	Mini Series / MINI-50C
Pump Type	Surface / Self-Priming Monoblock Pump
Motor Power	1.00 HP (0.75 kW)
Rated Voltage / Frequency	230V AC, 1-Phase, 50 Hz
Operating Speed	2700 RPM
Number of Stages	1 (Single-Stage)
Suction & Delivery Port Size	25 mm x 25 mm (1" x 1")
Total Head Range	10 – 50 Meters
Discharge Capacity Range	520 – 2900 LPH (Liters Per Hour)
Impeller Material	High-Grade Brass
Motor Body Material	Heavy-Duty Cast Iron
Delivery Casing Material	Heavy-Duty Cast Iron
Pump Shaft Material	Carbon Steel
Gross Weight	21.0 kg
Product Dimensions	37.1 x 32.7 x 26.5 cm
Net Contents	1 Pumpset Unit, 1 Strainer
Best Used For	Multi-Story Overhead Tanks, High-Head Residential Water Supply, Gardens & Sump Boosting

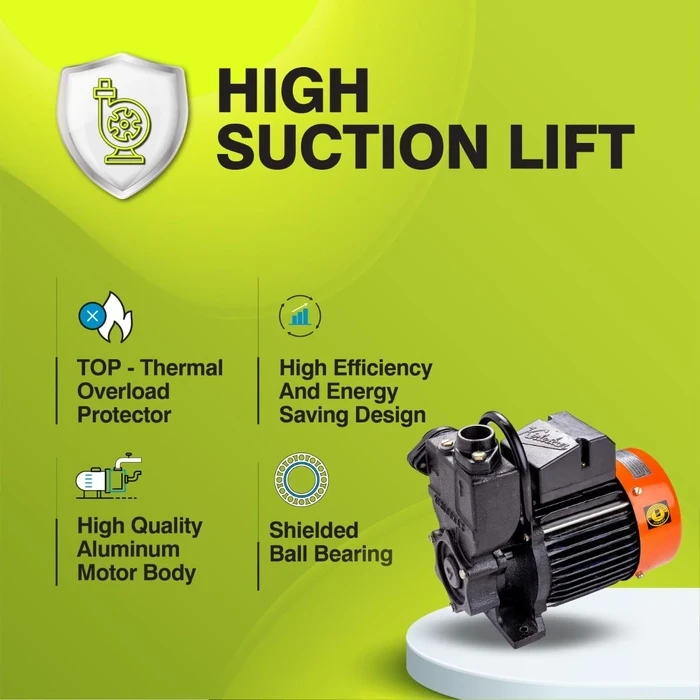

Heavy-Duty All-Cast-Iron Construction: Built with an industrial-grade cast iron motor body and delivery casing to ensure maximum mechanical strength and dampen operational vibrations.
Corrosion-Resistant Brass Impeller: Outfitted with a precision-machined brass impeller that prevents rust seizing and maintains consistent fluid dynamics up to 2700 RPM.
High-Lift 50-Meter Dynamic Head: Engineered to deliver a massive total head range of 10 to 50 meters with flow rates up to 2900 LPH, perfect for multi-story residential overhead tanks.
Self-Priming 1.00 HP Electric Motor: Powered by an efficient 1.0 HP single-phase motor running on 230V / 50 Hz, designed to lift water from shallow sumps and mains without repetitive manual re-priming.
Standardized 25mm (1") Connections: Includes 25 x 25 mm inlet/outlet ports and a dedicated suction strainer for seamless integration into home and commercial plumbing across Nepal.
