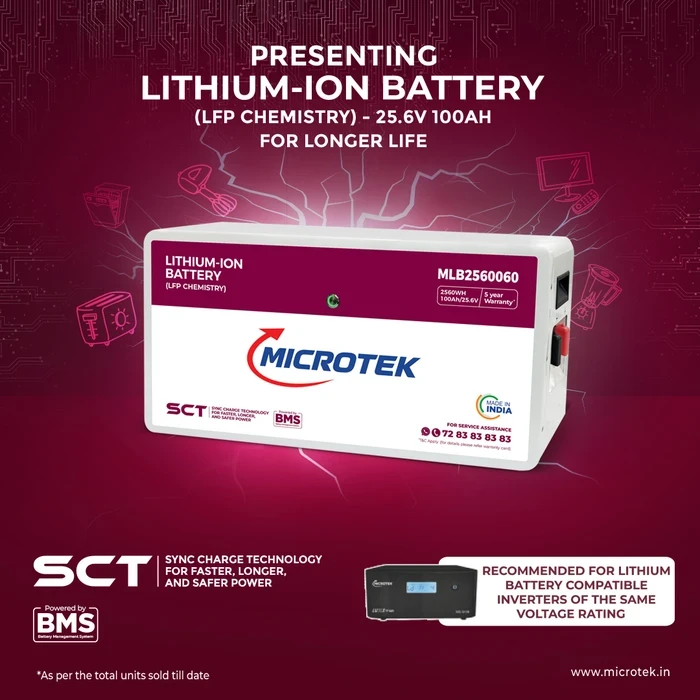

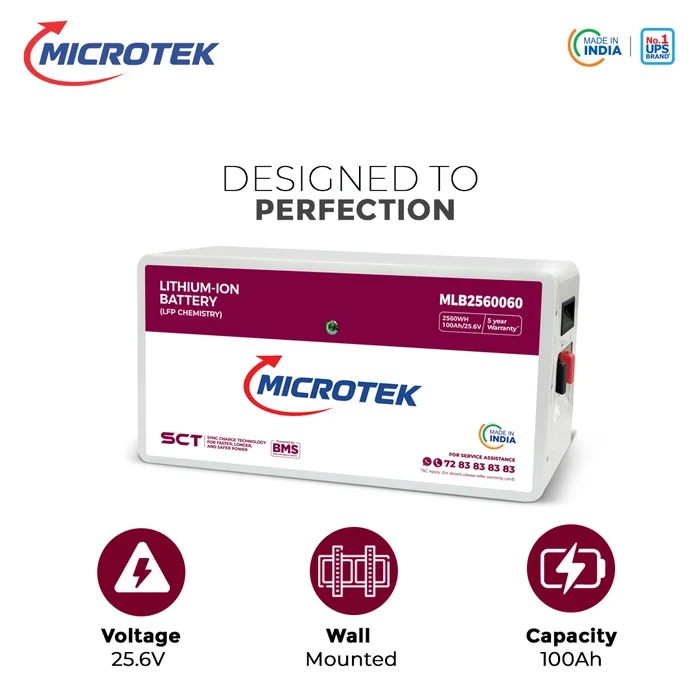

Microtek 25.6V 100Ah 2.56kWh Industrial LiFePO4 Lithium Battery | Smart BMS Controlled Prismatic Cell Deep Cycle Power Storage Block | MLB2560060
| Specification : | |
| Brand | Microtek |
| Model | MLB2560060 |
| Battery Chemistry Type | Lithium Iron Phosphate ($LiFePO_4$) |
| Cell Structural Style | High-Density Prismatic Cells / 8S1P Configuration |
| Nominal Voltage Parameter | 25.6 V |
| Nominal Capacity Baseline | 100 Ah |
| Total Nominal Energy Storage | 2.56 kWh |
| Operating Voltage Window | 22.4 V to 28.8 V |
| Charging Voltage Parameter | 28.8 V |
| Discharge Cut-off Limit | 22.4 V |
| Standard / Max Charge Current | 20 A / 50 A |
| Continuous / Peak Discharge Current | 100 A Continuous / 250 A Peak (for 1.5 seconds) |
| Internal Resistance Index | Less than 30 mΩ |
| Cycle Life Durability | Greater than 3,500 cycles at 80% Depth of Discharge (DOD) |
| Design Lifespan Rating | 10 plus Years |
| Operating Temperature (Charge/Discharge) | 0°C to 45°C / -20°C to 60°C |
| Built-in Safety Protections | Overcharge, Over-discharge, Over-current, Short Circuit, and Temperature Protection |
| Chassis Weight / Dimensions | 26.1 kg / 53 cm x 18 cm x 27.5 cm |
| Ideal Applications | Off-Grid Solar Systems, Telecommunication Networks, Industrial UPS Systems, and High-Load Commercial Power Backups |
-
Advanced Prismatic LiFePO4 Chemistry: Formulated with high-grade Lithium Iron Phosphate prismatic cells inside an 8S1P configuration, delivering superior thermal stability and maximum operational safety.
-
Smart Integrated BMS Architecture: Outfitted with an intelligent, built-in Battery Management System that actively defends the cell group from overcharging, over-discharging, over-current spikes, short circuits, and thermal limits.
-
Massive 2.56 kWh Energy Core: Packs a robust 25.6V / 100Ah capacity line that outputs 2.56 kilowatt-hours of clean power, making it perfect for high-load appliances, off-grid solar links, and industrial backups.
-
Elite Deep-Cycle Lifespan Rating: Engineered to provide a long-lasting design life of over 10 years, delivering more than 3,500 complete operational cycles at a demanding 80% Depth of Discharge baseline.
-
High-Amp Fast Charge & Discharge Channels: Supports a quick 20A standard charge (50A max) paired with a heavy 100A continuous discharge threshold and a 250A peak burst window for high-surge machines.
