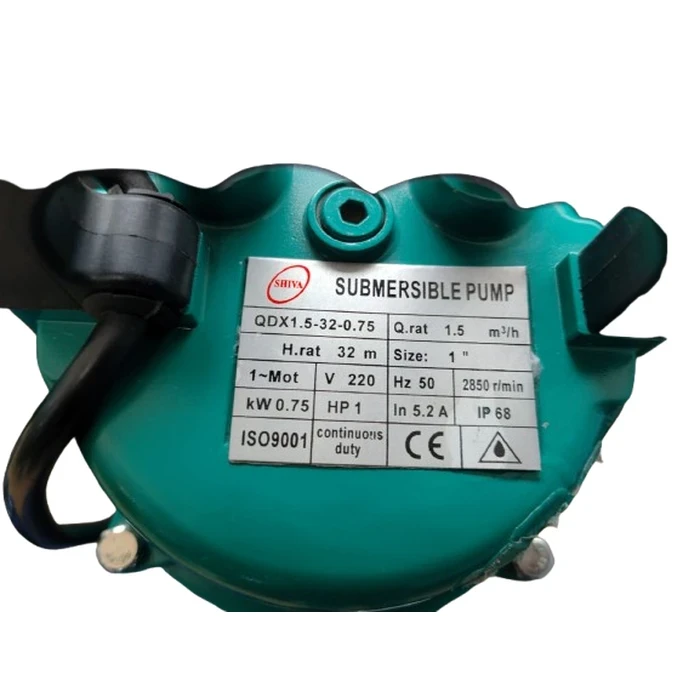

Shiva QDX Openwell Submersible Water Pump Series (0.5 to 3.0 HP) | ISO Certified Copper-Wound Motor with Thermal Overload Protection & High Head Performance

Description

Specification	Parameter
Brand / Certification	Shiva (ISO Certified)
Series / Model Type	QDX Openwell Submersible Pump Series
Power Output Range	0.5 Horsepower to 3.0 Horsepower (0.75kW showcased on 1HP variant)
Operating Voltage	220V – 240V AC (Single Phase)
Frequency	50 Hz
Discharge / Outlet Size	1 Inch (Standard Pipe Fitting)
Flow Rate (1HP Variant)	1.5 m3/h
Maximum Head (1HP Variant)	Up to 32 Meters
Cooling Mechanism	Water Cooled
Construction Materials	Stainless Steel & Cast Iron (Model Dependent)
Safety Feature	Built-in Thermal Overload Protection
Best Used For	Domestic Water Supply, Agricultural Irrigation, Garden Sprinkling & Groundwater Pumping across Nepal

Powerful Copper-Wound Motor: Equipped with a high-efficiency copper motor (available from 0.5 HP to 3.0 HP variants) ensuring long-lasting durability and optimal energy conversion.
High Head & Lifting Capacity: Delivers exceptional head pressure (up to 32 meters on 1HP configurations), making it ideal for deep water lifting and multi-story supply.
Thermal Overload Protection: Features built-in safety controls that automatically safeguard motor windings from overheating during continuous or erratic voltage usage.
Rust-Free Corrosion Resistance: Constructed with high-grade stainless steel and cast iron components to resist rust degradation in harsh water environments across Nepal.
Silent Submerged Operation: Engineered with a water-cooled motor housing that dampens noise and vibration, providing quiet and efficient fluid transfer.
