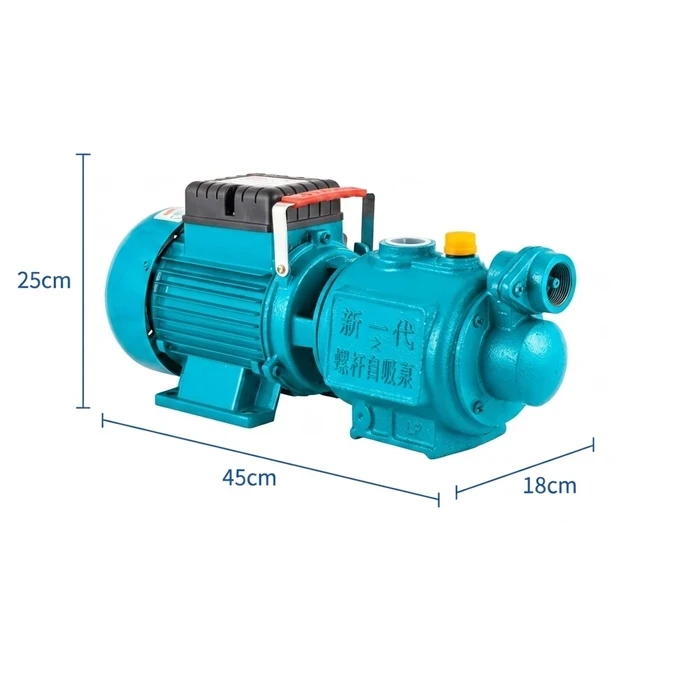

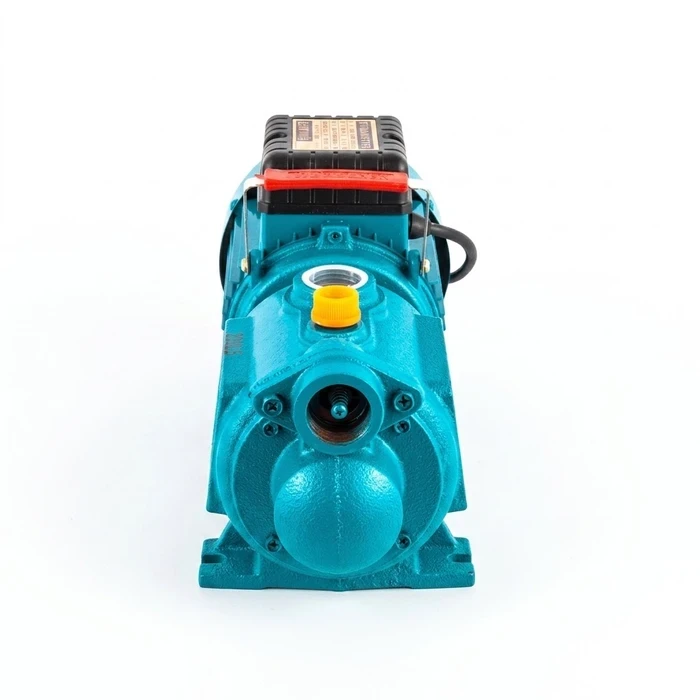

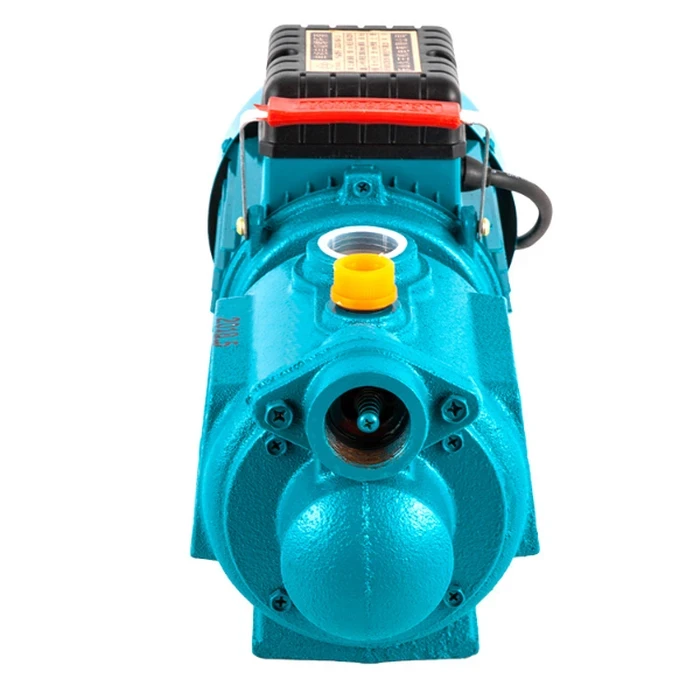

Shiva ZGD Cast Iron Super Suction Water Pump Series (1.0 HP & 1.5 HP) | Heavy-Duty Self-Priming Screw Impeller Pump with Thermal Overload Protection

Description

Specification	Parameter
Brand / Series	Shiva ZGD Cast Iron Super Suction Series
Available Power Ratings	1.0 HP (0.75 kW) & 1.5 HP (1.10 kW) Variants
Motor Type	Single-Phase, 100% Copper Winding
Operating Voltage Range	220V – 240V AC, 50 Hz (Designed for Voltage Fluctuations)
Motor Speed	~2,850 / 2,860 RPM
Priming Capability	Self-Priming with Deep Suction Lift
Max Head Range	45 – 60 m (1.0 HP) / 70 – 100 m (1.5 HP)
Flow Rate Capacity	40 – 60 LPM (1.0 HP) / 50 – 80 LPM (1.5 HP)
Pipe Size (Inlet x Outlet)	25 mm x 25 mm (1" x 1") across both variants
Body & Impeller Material	Heavy-Duty Cast Iron Casing & ZGD Screw/Worm Impeller
Safety Protection	Built-in Thermal Overload Protector (TOP)
Best Used For	Domestic Water Supply, Overhead Tanks, Multi-Story Buildings, Pressure Boosting & Small Farm Irrigation across Nepal

100% Copper Winding Motor: Powered by a high-efficiency single-phase copper motor operating at ~2,850 RPM to ensure optimal energy conversion and long-term durability.
Rugged Cast Iron Construction: Built with a heavy-duty cast iron outer casing that offers exceptional thermal stability, impact resistance, and longevity for tough outdoor installations.
Screw/Worm Impeller Technology: Utilizes an advanced screw-worm mechanism instead of standard centrifugal impellers to generate massive discharge pressure and lift water from challenging depths.
Extreme High-Head Lifting Range: Delivers impressive head pressure ranging from 45 to 60 meters (1.0 HP) and up to 70 to 100 meters (1.5 HP) for multi-story buildings and long-distance transfers.
Built-In Thermal Overload Protection (TOP): Equipped with an automatic safety cutoff to protect motor windings against overheating during voltage fluctuations across Nepal.
