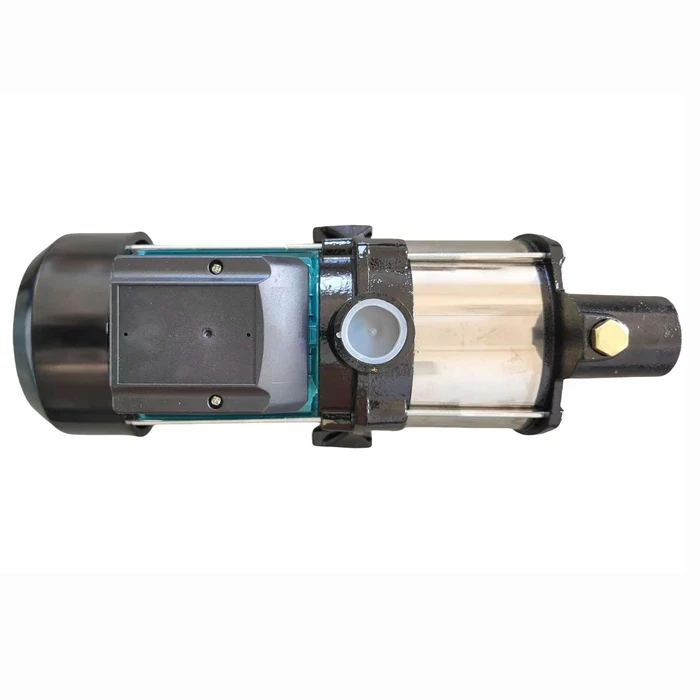

Shiva ZGD SS Super Suction Water Pump Series (1.0 HP & 1.5 HP) | Stainless Steel Self-Priming High-Head Peripheral Pump with Thermal Overload Protection

Description

Specification	Parameter
Brand / Series	Shiva ZGD SS Super Suction Series
Available Power Ratings	1.0 HP (0.75 kW) & 1.5 HP (1.10 kW) Variants
Motor Type	Single-Phase, 100% Copper Winding
Operating Voltage Range	220V – 240V AC, 50 Hz (Wide Voltage Design)
Motor Speed	~2,850 RPM
Suction Lift Capacity	Up to 8 Meters
Max Head Range	50 – 60 m (1.0 HP) / 70 – 80+ m (1.5 HP)
Flow Rate Capacity	50 – 80 LPM (1.0 HP) / 60 – 100 LPM (1.5 HP)
Pipe Size (Inlet x Outlet)	25 mm x 25 mm (1" x 1") across both variants
Body & Impeller Material	Rust-Resistant Stainless Steel (SS) Casing & Screw/Vortex SS Impeller
Safety Protection	Built-in Thermal Overload Protector (TOP)
Best Used For	Multi-Story Buildings, Pressure Boosting, Long-Distance Water Transfer & Agricultural Sprinklers across Nepal

100% Copper Winding Motor: Powered by a high-efficiency single-phase copper motor operating at ~2,850 RPM for optimal energy conversion and long-lasting durability.
Super Suction Lift Capability: Engineered with close-tolerance internal screw chambers to swiftly prime and lift water from depths up to 8 meters.
Extreme High-Head Performance: Delivers massive head pressure ranging from 50 to 60 meters (1.0 HP) and up to 70 to 80+ meters (1.5 HP) for multi-story buildings.
Rust-Resistant Stainless Steel Build: Features a robust stainless steel outer casing and high-pressure screw/vortex impeller to prevent scale buildup and rust contamination.
Built-In Thermal Overload Protection (TOP): Equipped with advanced safety cutoffs to safeguard motor windings against burnouts during voltage fluctuations across Nepal.
