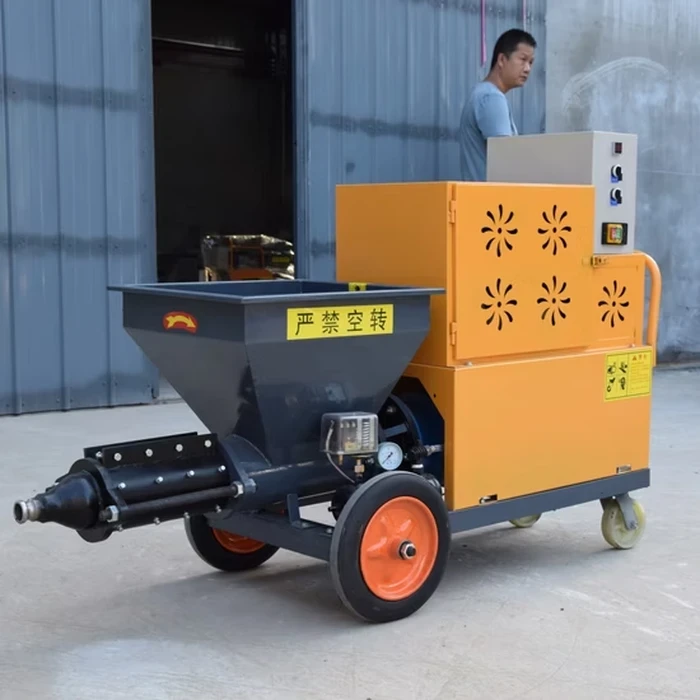

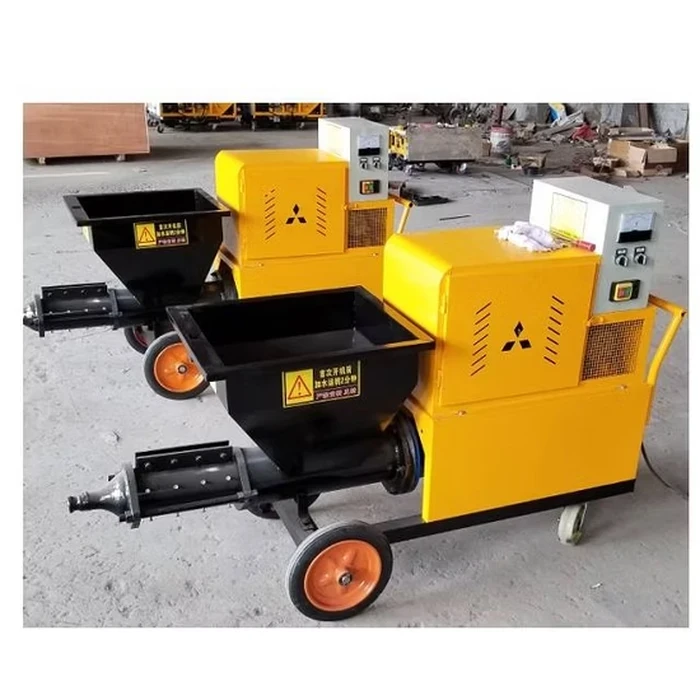

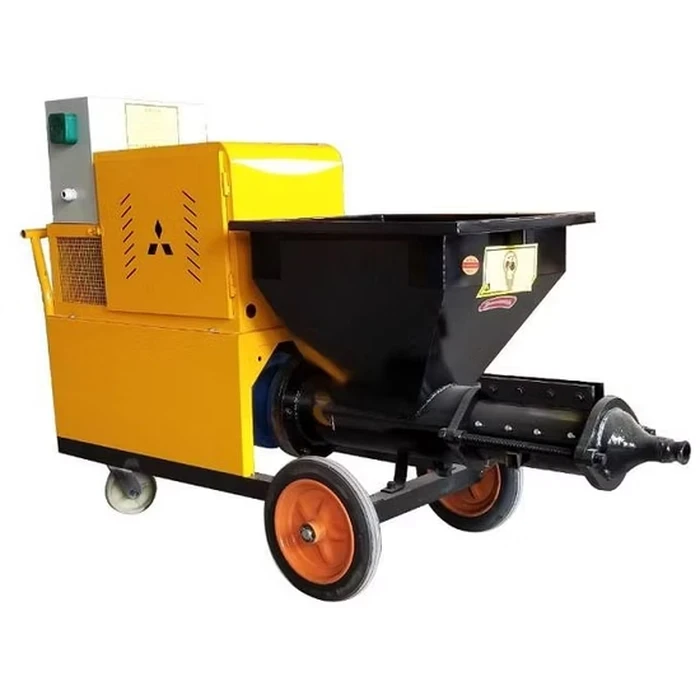

Tiger Automatic Wall Plastering Machine | 5.5KW Pumping Motor & 2.5KW Built-in Air Compressor | 60L Hopper & 3m³/Hour Conveying Flow Spray Renderer | AY-511
| Specification Category | Tiger Wall Plastering Machine Details |
| Model Number | AY-511 |
| Gross Capacity | 60 Liters Mortar Hopper Volume |
| Cooling Type (Conveying Flow) | 3 Cubic Meters per Hour (3m³/Hour) Continuous Spray |
| Compressor (Built-In Unit) | 2.5KW Integrated Pneumatic Air Compressor |
| Energy Rating (Drive Motor) | 5.5KW Heavy-Duty Electric Motor Core |
| Net Dimensions | 1500 x 700 x 900 Millimeters Packing Stack |
| Shelving (Transmission Limits) | Vertical Distance: 20M | Horizontal Distance: 30M |
| Body Material | Reinforced Carbon Steel & Wear-Resistant Alloy Pump |
| Glass Type (Grain Capacity) | Handles Maximum Aggregate Aggregate Sizes: 5mm - 6mm |
| Security | Pressure Relief Safety Valve & Main Emergency Stop |
| Portability (Net Weight) | 160 kg Structural Frame with Ground Moving Casters |
| Lighting (Electrical Grid) | 380V Industrial Three-Phase Input Voltage |
| Gas Type (Application) | Cement Mortar, Lime Plaster, Gypsum, Concrete Walls |
-
High-Volume 3m³/Hour Spray Output: Replaces slow hand-troweling with an automated continuous pumping mechanism that projects 3 cubic meters of structural mortar per hour.
-
Dual-Power Industrial Motor System: Combines a high-torque 5.5kW main pump motor with an auxiliary 2.5kW compressor to maintain relentless pneumatic spraying force.
-
Extended Transmission Range Matrix: Engineered to reliably transport mixed mortar across a vertical climb distance of 20 meters or a horizontal pipe layout length of 30 meters.
-
60L Heavy-Duty Mud Hopper: Features an expansive 60-Liter storage bin designed to process grain sizes up to 5-6mm, cutting down on machine stoppage during big wall runs.
-
Mobile 160kg Rigid Steel Workstation: Fabricated inside an impact-resistant alloy chassis mounted on heavy ground wheels to blend field stability with easy room-to-room tracking.
