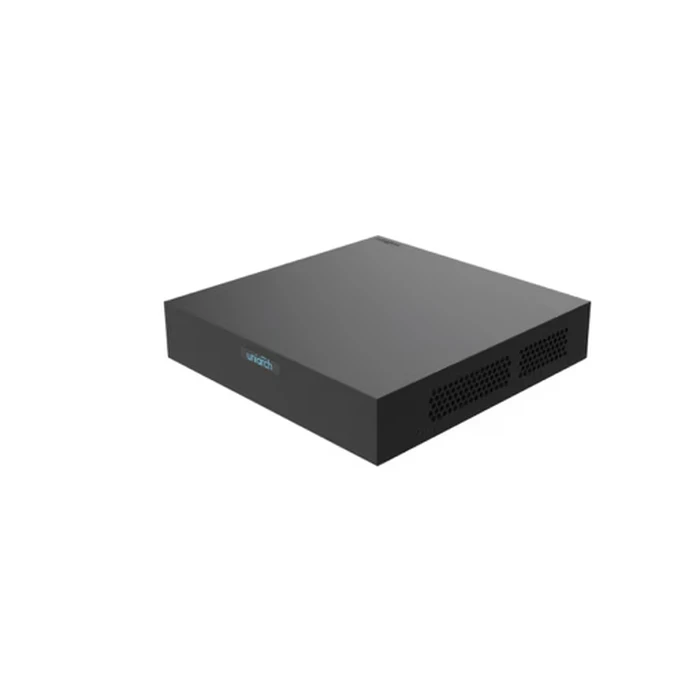

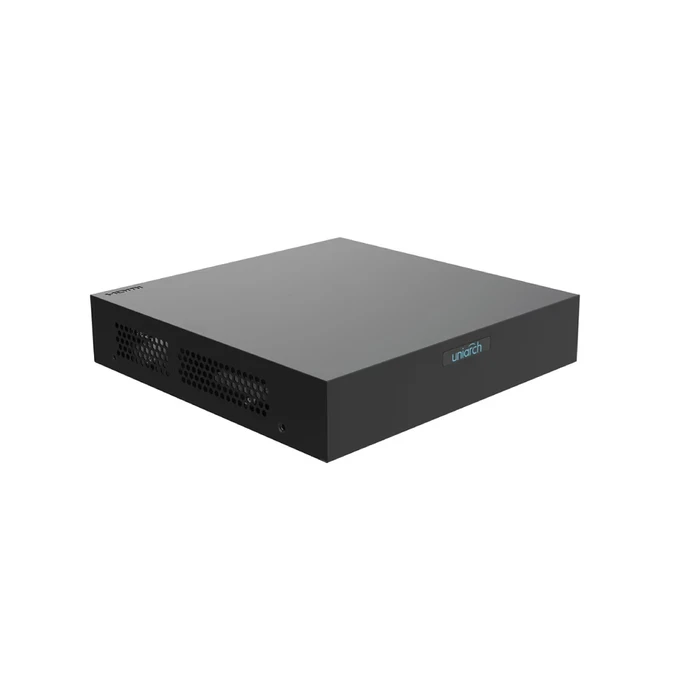

Uniarch 4 Channel 1080P/5MP/6MP PoE Network Video Recorder with 4-Port Plug & Play PoE, Ultra 265, 1 SATA Up to 6TB & HDMI/VGA Output | Model No. NVR-104S3-P4-ECO
| Specification : | |
| Brand Profile | Uniarch |
| Model No. | NVR-104S3-P4-ECO |
| IP Video Input Channels | 4-Channel IP Camera Inputs |
| PoE Interfaces & Budget | 4 RJ45 10M/100M Ports (IEEE 802.3af/at) / Max 30W Total PoE Power |
| Recording Resolutions | 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Decoding Capability | 2 x 6MP @ 30fps / 4 x 5MP @ 25fps / 4 x 4MP @ 25fps / 4 x 1080P @ 30fps |
| System Bandwidth | 64 Mbps Incoming Bandwidth / 48 Mbps Outgoing Bandwidth |
| Video Compression Standards | Ultra 265, H.265, H.264 |
| Display Outputs | 1x HDMI (up to 1920x1080), 1x VGA (up to 1920x1080), Simultaneous Display |
| Audio Output Interface | 1-Channel 3.5 mm Audio Output (G.711A, G.711U Codecs) |
| Storage Capacity | 1 SATA Interface (Supports up to 6 TB Capacity) |
| External Interfaces | 1x RJ45 10M/100M Network Port, 2x Rear USB 2.0 Ports |
| IPC Analytics Support | Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD), Behavior Search |
| Power Supply Interface | DC 48V / 1A (Power Consumption <= 9W without HDD) |
| Chassis Dimensions & Weight | 190 mm x 195 mm x 42 mm (7.5" x 7.7" x 1.6") / <= 1.0 kg (without HDD) |
| Working Environment | -10 degrees C to 55 degrees C (14 degrees F to 131 degrees F), Humidity <= 90% RH |
| Certifications & Access | CE, FCC, RoHS, WEEE, IE10/11, Chrome 45+, Edge 79+, Firefox 52+ |
| Ideal Applications | Residential Security, Small Offices, Retail Shops, and Small Commercial Facilities |
-
4-Channel IP Video & Plug-and-Play PoE Ports: Features 4 independent RJ45 10M/100M PoE interfaces (IEEE 802.3af/at, 30W total budget) for single-cable camera connectivity.
-
6MP Video Recording & 64 Mbps Bandwidth: Supports IP video recording up to 6MP resolution with 64 Mbps incoming and 48 Mbps outgoing network bandwidth capabilities.
-
Ultra 265 / H.265 Decoding & 6TB Storage Support: Efficient Ultra 265 compression reduces bandwidth and storage demands across 1 SATA HDD interface supporting up to 6TB capacity.
-
Simultaneous HDMI & Full HD VGA Video Outputs: Delivers synchronized live view and playback displays via HDMI and VGA ports at resolutions up to 1920 x 1080 at 60 Hz.
-
IPC Smart Analytics & Alarm Integration: Integrates advanced camera smart features, including Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD), motion alarms, and behavior search.
