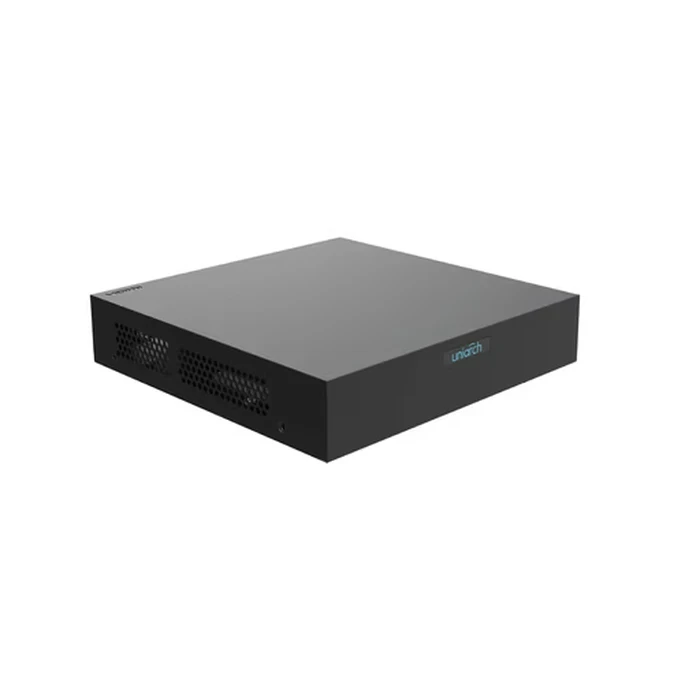

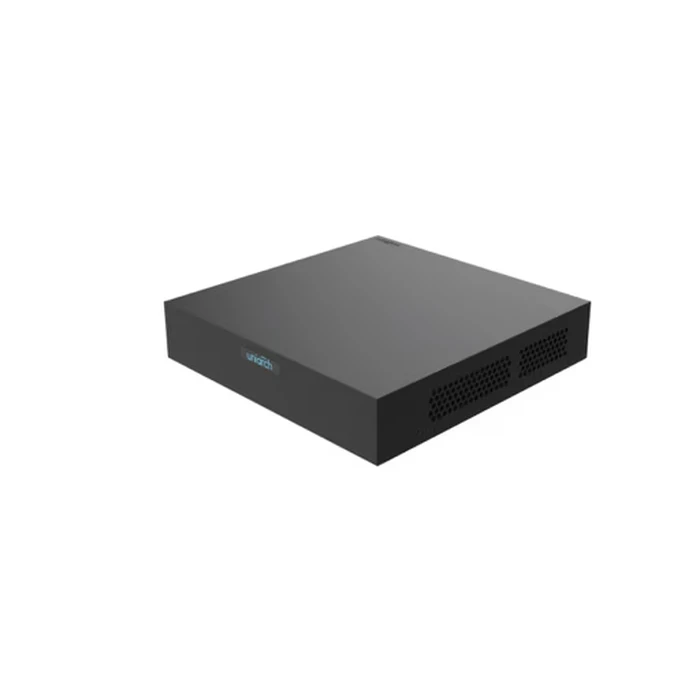

Uniarch 8 Channel 1080P/5MP/6MP PoE Network Video Recorder with 8-Port Plug & Play PoE, Ultra 265, 1 SATA Up to 6TB & HDMI/VGA Output | Model No. NVR-108S3-P8-ECO
| Specification : | |
| Brand Profile | Uniarch |
| Model No. | NVR-108S3-P8-ECO |
| IP Video Input Channels | 8-Channel IP Camera Inputs |
| PoE Interfaces | 8 RJ45 10M/100M Ports (IEEE 802.3af/at) |
| Recording Resolutions | 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Decoding Capability | 2 x 6MP @ 30fps / 4 x 5MP @ 30fps / 4 x 4MP @ 30fps / 6 x 1080P @ 30fps / 8 x 720P @ 30fps |
| System Bandwidth | 64 Mbps Incoming Bandwidth / 48 Mbps Outgoing Bandwidth |
| Video Compression Standards | Ultra 265, H.265, H.264 |
| Display Outputs | 1x HDMI (up to 1920x1080), 1x VGA (up to 1920x1080), Simultaneous Display |
| Audio Output Interface | 1-Channel RCA Audio Output |
| Storage Capacity | 1 SATA 3.5" HDD Interface (Supports up to 6 TB Capacity) |
| External Interfaces | 1x RJ45 10M/100M Network Port, 2x USB 2.0 Ports |
| IPC Analytics Support | Smart Intrusion Prevention (SIP 4-ch), Line Crossing, Area Intrusion, Human Body Detection |
| Power Supply Interface | DC 52V (Power Consumption <= 9W without HDD) |
| Chassis Dimensions & Weight | 190 mm (W) x 195 mm (D) x 46 mm (H) / 1.0 kg (without HDD) |
| Certifications & Remote Access | Web Browser, Smartphone App, PC Software |
| Ideal Applications | Residential Security, Retail Shops, Offices, and Commercial Facilities |
-
8-Channel IP Video & Plug-and-Play PoE Ports: Features 8 independent RJ45 10M/100M PoE interfaces (IEEE 802.3af/at) for single-cable camera connectivity and power transmission.
-
6MP Video Recording & 64 Mbps Bandwidth: Supports IP video recording up to 6MP resolution with 64 Mbps incoming and 48 Mbps outgoing network bandwidth capabilities.
-
Ultra 265 / H.265 Decoding & 6TB Storage Support: Efficient Ultra 265 compression reduces bandwidth and storage demands across 1 SATA HDD interface supporting up to 6TB capacity.
-
Simultaneous HDMI & Full HD VGA Video Outputs: Delivers synchronized live view and playback displays via HDMI and VGA ports at resolutions up to 1920 x 1080 at 60 Hz.
-
Camera Smart Analytics & Alarm Integration: Supports advanced IPC smart analytics, including 4-channel Smart Intrusion Prevention (SIP), line crossing, area intrusion, and human body detection.
