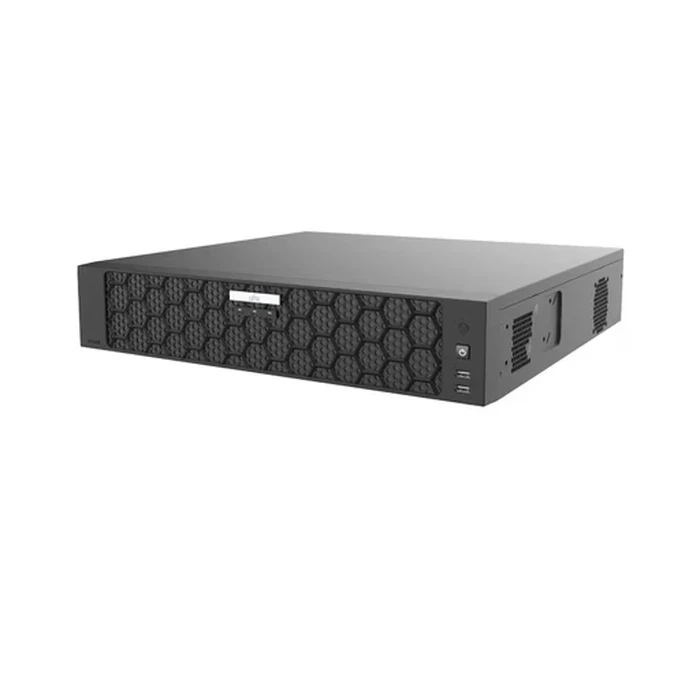

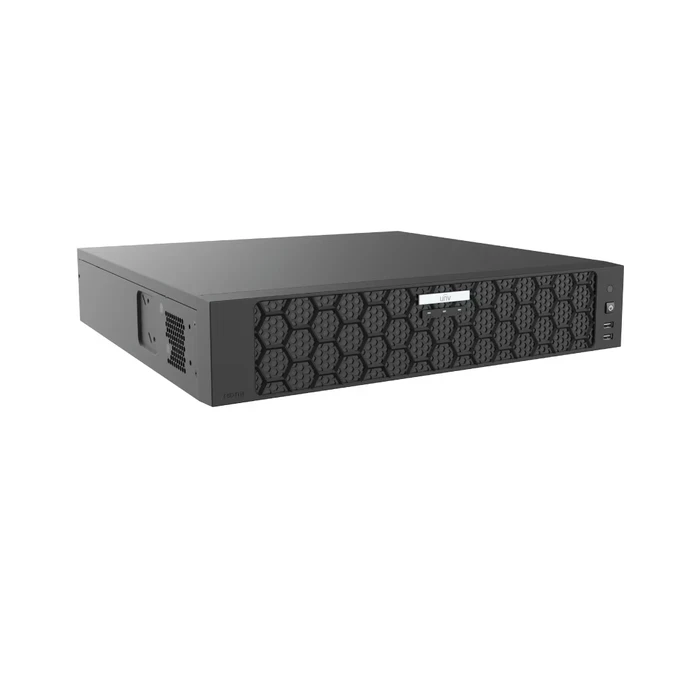

UNV 128-Channel 2U Rackmount Enterprise NVR with 8 SATA Bays, Dual 4K HDMI, RAID & eSATA Support | NVR508-128E-R
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | NVR508-128E-R |
| Product Category | Enterprise 128-Channel Network Video Recorder (2U Rackmount) |
| IP Video Input Capacity | 128 Channels |
| System Bandwidth | 384 Mbps Incoming / 384 Mbps Outgoing |
| Decoding Compression Standards | Ultra 265 / H.265 / H.264 / G.711A / G.711U |
| Maximum Recording Resolution | Up to 32 Megapixels |
| Video Display Outputs | HDMI1: 4K (3840 x 2160) / HDMI2: 4K (3840 x 2160) / VGA: 1080P |
| Storage Interfaces & Capacity | 8 SATA Bays (Hot-Swappable) / Up to 24 TB per HDD (192 TB Max Internal) |
| Storage Expansion & RAID | 1 x eSATA Interface / RAID 0, 1, 5, 6, 10 |
| Smart AI Analytics Support | Face Detection, LPR (25,000 Vehicle Library), People Counting, and Heat Maps |
| Network Interfaces | 2 x RJ45 10M/100M/1000M Self-Adaptive Ethernet Ports |
| Alarm & Peripheral Interfaces | 16-ch Alarm In / 10-ch Alarm Out / RS485 / RS232 / 2 x USB 2.0 / 2 x USB 3.0 |
| Power Supply & Consumption | AC 100V to 240V / Consumption: <= 35W (Without HDDs) |
| Chassis Dimensions & Weight | 442 mm x 448 mm x 93 mm (2U Height) / <= 6.0 kg |
| Ideal Applications | Enterprise Campuses, Shopping Malls, Industrial Plants, Airports, and Central Command Centers |
-
128-Channel IP Processing & 384Mbps Throughput: Manages up to 128 high-definition IP camera inputs with 384 Mbps incoming and 384 Mbps outgoing bandwidth for smooth multi-channel live viewing and recording.
-
8 SATA Hot-Swap Bays & Hardware RAID Array: Houses 8 SATA interfaces supporting up to 24 TB per disk (up to 192 TB total internal storage) with hot-swappable trays and RAID 0, 1, 5, 6, and 10 array support.
-
Dual 4K Ultra-HD HDMI Display Outputs: Equipped with dual 4K HDMI outputs (3840 x 2160) and VGA output for multi-monitor setup and control room video management.
-
Deep Learning Smart AI & Vehicle Library: Features advanced IPC analytics including Face Detection, License Plate Recognition (LPR) with up to 25,000 vehicle image storage, People Counting, and Heat Maps.
-
eSATA Expansion & Enterprise Connectivity: Offers an external eSATA port for extended storage arrays, dual 10/100/1000M Ethernet ports, 16 alarm inputs, and 10 alarm outputs in a 2U rack-mount form factor.
