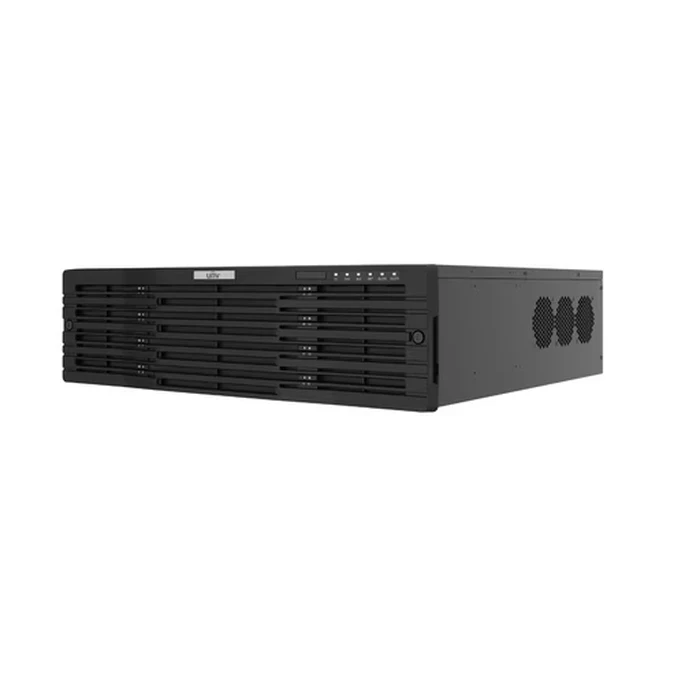

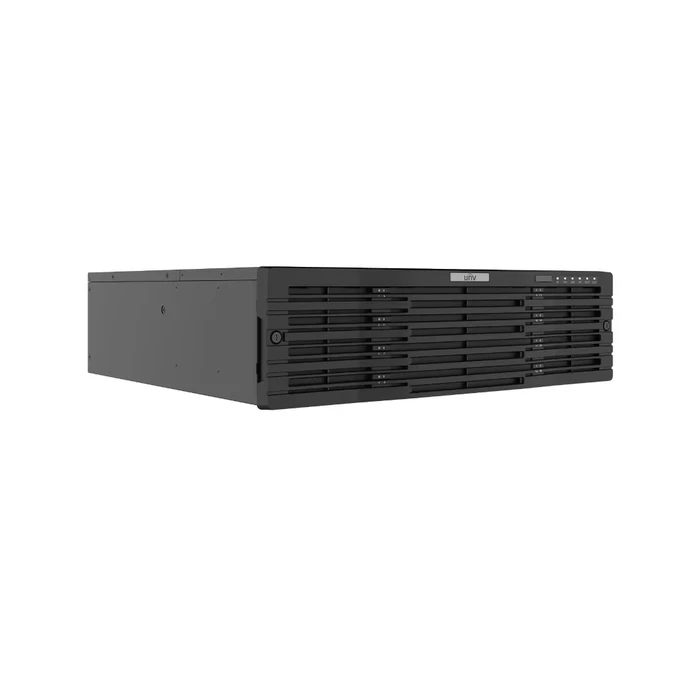

UNV 128-Channel 3U Rackmount Enterprise NVR with 16 SATA Bays, 8K HDMI, RAID & Redundant Power | NVR516-128E-R
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | NVR516-128E-R |
| Product Category | Enterprise 128-Channel Network Video Recorder (3U Rackmount) |
| IP Video Input Capacity | 128 Channels |
| System Bandwidth | 640 Mbps Incoming / 640 Mbps Outgoing |
| Decoding Compression Standards | Ultra 265 / H.265 / H.264 / G.711A / G.711U |
| Maximum Recording Resolution | Up to 32 Megapixels |
| Video Display Outputs | HDMI1: 8K (7680 x 4320) / HDMI2: 4K (3840 x 2160) / VGA: 1080P |
| Storage Interfaces & Capacity | 16 SATA Bays (Hot-Swappable) / Up to 24 TB per HDD (384 TB Max) |
| Disk Array & Redundancy | RAID 0, 1, 5, 6, 10, 50, 60 / Redundant Storage & Power Supply Support |
| Smart AI Analytics Support | Face Detection, LPR, Vehicle/Human Search, People Counting, and Heat Maps |
| Network Interfaces | 2 x RJ45 10M/100M/1000M Self-Adaptive Ethernet Ports |
| Alarm & Peripheral Interfaces | 16-ch Alarm In / 10-ch Alarm Out / RS485 / RS232 / 2 x USB 2.0 / 2 x USB 3.0 |
| Power Supply & Consumption | AC 100V to 240V / Consumption: <= 50W (Without HDDs) |
| Chassis Dimensions & Weight | 482 mm x 533 mm x 131 mm (3U Height) / <= 6.5 kg |
| Ideal Applications | Enterprise Campuses, Shopping Malls, Industrial Plants, Airports, and Central Command Centers |
-
128-Channel IP Video Processing & 640Mbps Throughput: Supports up to 128 high-definition IP camera inputs with massive 640 Mbps incoming and outgoing bandwidth for lag-free live monitoring and recording.
-
16 SATA Hot-Swap Bays & Flexible RAID Protection: Features 16 SATA interfaces supporting up to 24 TB per disk (up to 384 TB total storage) with hot-swappable drive trays and RAID 0, 1, 5, 6, 10, 50, and 60 array support.
-
8K Ultra-HD Video Display Output: Equipped with a primary HDMI output capable of 8K resolution (7680 x 4320) and a secondary 4K HDMI output for high-detail video wall management.
-
Deep Learning Smart AI Analytics: Supports advanced IPC analytics including Face Detection, License Plate Recognition (LPR), Vehicle Search, Human Tracking, People Counting, and Heat Maps.
-
Enterprise Redundancy & Heavy-Duty 3U Build: Features a redundant power supply option, dual 10/100/1000M Ethernet ports, 16 alarm inputs, and 10 alarm outputs housed in a rugged 3U rack-mount chassis.
