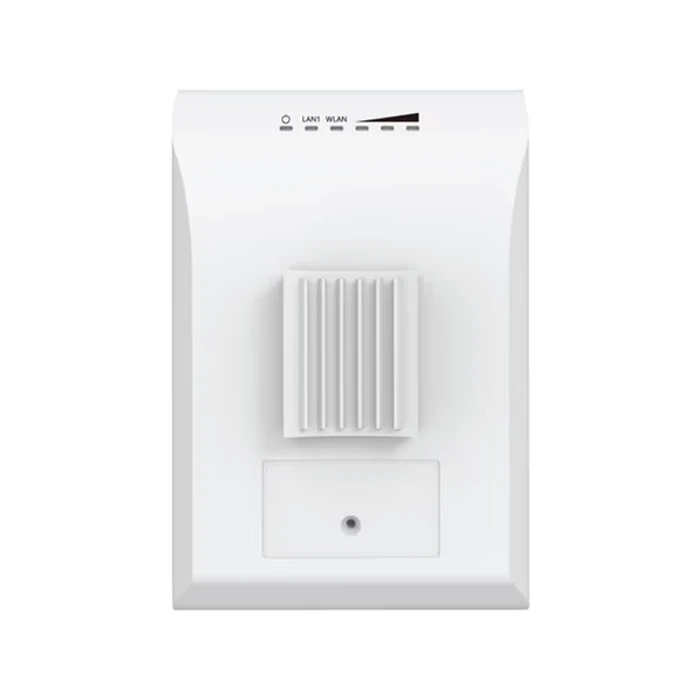

UNV 1.5km 5GHz 12dBi Outdoor Industrial Wireless Bridge (Pair Set) with IP65 Weatherproofing & Passive PoE | WLN-EB5N-IN
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | WLN-EB5N-IN |
| Product Category | Outdoor High-Performance Industrial Wireless Bridge |
| Transmission Distance | 0 to 1.5 Kilometers (Point-to-Point) |
| Wireless Standard & Frequency | IEEE 802.11a/n (5GHz Band: 4920–6100 MHz supported range) |
| Antenna Gain & Beam Width | Integrated 12dBi Directional Antenna / Beamwidth: 35° H × 35° V |
| Maximum Transmit Power | 24 dBm |
| Physical Interfaces | 2 x 10/100 Mbps RJ45 Ports |
| Power Supply & Power Draw | 12V Passive PoE / Average: 4W, Maximum: 6W |
| Operating Modes | Station, WDS Station / Bridge, Router |
| Ingress & Protection Ratings | IP65 Weatherproof / ESD: Contact ±6KV, Air ±8KV / Surge: CM 2KV, DM 1KV |
| Environmental Resilience | Wind Survivability: 134 km/h / Temp: -40 °C to 65 °C |
| Hardware Core | Atheros AR9344 CPU / 64MB DDR2 RAM / 8MB Flash |
| Dimensions & Weight | 140 mm × 93 mm × 43 mm / Weight: 0.19 kg |
| Mounting Options | Pole Mounting (Supported pole diameter ≤ 55 mm) |
| Ideal Applications | Perimeter Surveillance, Construction Sites, Elevator Monitoring, and Remote Farm Links |
-
1.5km Transmission Range & Pre-Paired Setup: Delivers point-to-point wireless transmission up to 1.5 km and comes shipped in factory pre-paired sets for zero-configuration plug-and-play installation.
-
5GHz 802.11a/n with 12dBi Integrated Antenna: Operating on the 5GHz band with a high-gain 12dBi directional antenna (35° H/V beamwidth) to minimize wireless interference.
-
Industrial IP65 Outdoor Rugged Enclosure: Rated IP65 for weather resistance, capable of surviving extreme operating temperatures (-40°C to 65°C) and wind speeds up to 134 km/h.
-
Dual 10/100 Mbps Ports with Passive PoE: Outfitted with 2 Ethernet ports powered conveniently via 12V Passive PoE (average power consumption 4W, max 6W).
-
Enhanced Industrial Electrical & ESD Protection: Built with Contact ±6KV / Air ±8KV ESD protection and 2KV common mode / 1KV differential mode surge protection for outdoor stability.
