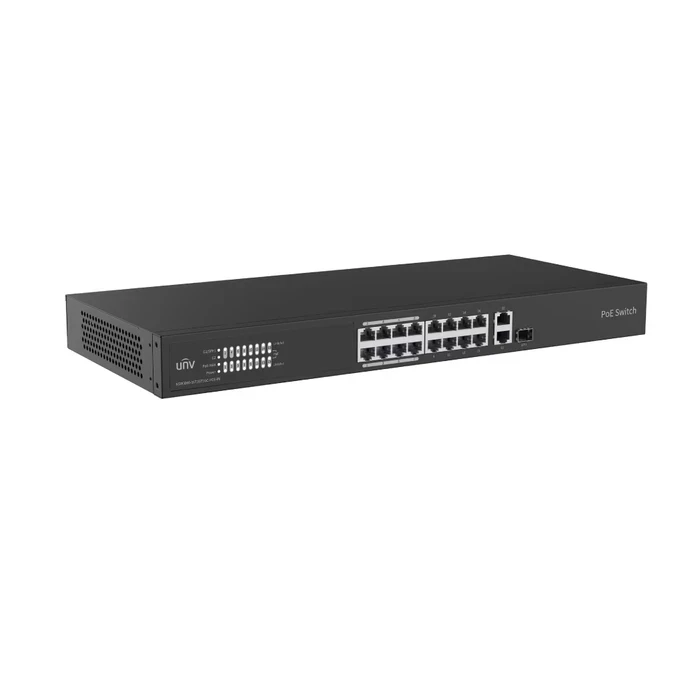

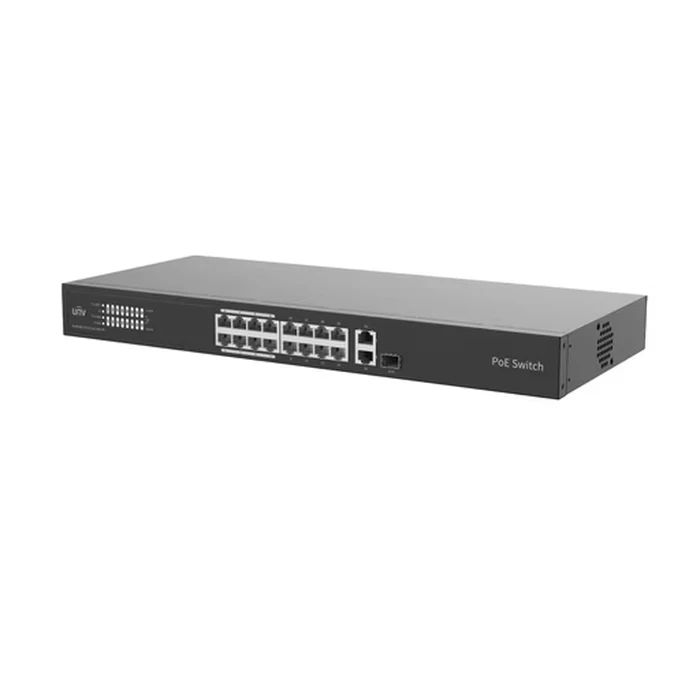

UNV 16-Port 1U Rack Mount Cloud Managed Fast Ethernet PoE Switch with 250W Budget & Gigabit Combo Uplink | NSW3000-16T1GT1GC-POE-IN
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | NSW3000-16T1GT1GC-POE-IN |
| Product Category | 16-Port 1U Rack Mount Cloud Managed Fast Ethernet PoE Switch |
| Network Port Configuration | 16 x 10/100 Mbps PoE RJ45 Ports | 1 x Gigabit RJ45 Uplink | 1 x Gigabit Combo Port |
| PoE Standards & Power Budget | IEEE 802.3af/at | Max 250W Total Power Budget (Up to 30W per single port) |
| PoE Pin Mode | Mode A (1/2+, 3/6-) & Mode B (4/5+, 7/8-) |
| Priority Ports | Ports 1 to 8 (First Priority Power & Data Forwarding) |
| Switching Capacity & Forwarding | 7.2 Gbps / 5.36 Mpps (4 Mbit Packet Buffer) |
| MAC Address Table Size | 16K Entries |
| Cloud & Network Management | Web/Cloud Interface, QR-Code Mobile Access, Remote PoE Reboot, Auto-Topology Generation |
| Long-Range & Security Features | Extend Mode up to 250m (10Mbps), Port Isolation, Loop Detection, Broadcast Storm Control, Up to 32 VLANs |
| Cooling & Enclosure | 1 Cooling Fan / All-Metal 1U Rack-Mountable Enclosure |
| Power Supply & Max Consumption | Internal AC Power (100 to 240V, 50/60Hz) / Max Power: 265W (PoE Capacity: 250W) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Dimensions & Weight | Product: 440 mm × 189.8 mm × 44 mm (1U Height) / Weight: 2.1 kg |
| Compliance Standard | NDAA Compliant |
| Ideal Applications | Enterprise IP CCTV Deployments, Commercial Buildings, and Smart Infrastructure Networks |
-
16 Fast Ethernet PoE Ports & Dual Gigabit Uplinks: Outfitted with 18 total ports, comprising 16 PoE-enabled 10/100 Mbps ports, 1 dedicated Gigabit RJ45 uplink port, and 1 Gigabit Combo port for high-bandwidth uplinks.
-
250W Total PoE Budget & Priority Allocation: Delivers a 250W PoE power budget (max 30W per port) with priority power and packet forwarding allocation on ports 1 through 8.
-
Cloud Management & Remote App Power Reset: Supports Web/Cloud management, QR-code mobile app pairing, automatic video topology discovery, and remote PoE power rebooting.
-
250m Long-Range Extend Mode & VLAN Support: Features Extend mode supporting up to 250m long-distance video/power transmission alongside port isolation and up to 32 VLANs.
-
1U Rack-Mountable Metal Chassis & NDAA Compliant: Integrated 100–240V AC internal power supply, active cooling fan, standard 1U metal rack casing (440 mm × 189.8 mm × 44 mm), and full NDAA compliance.
