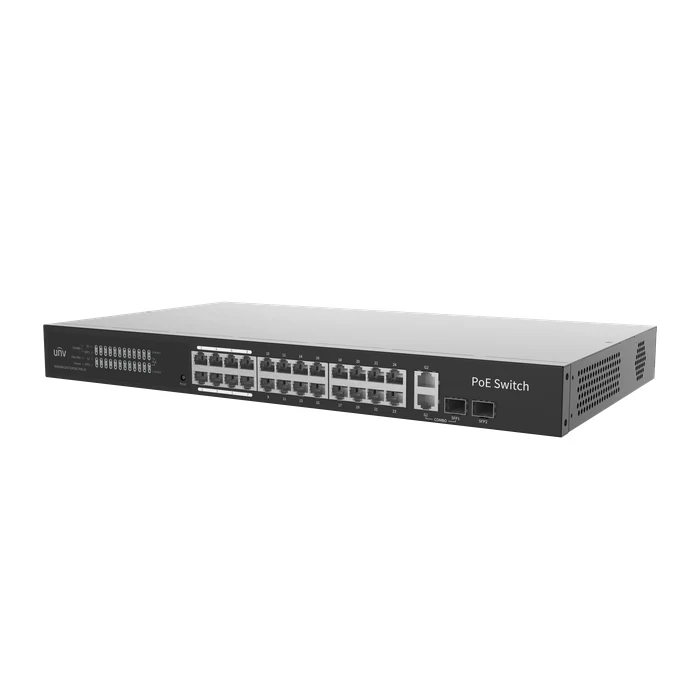

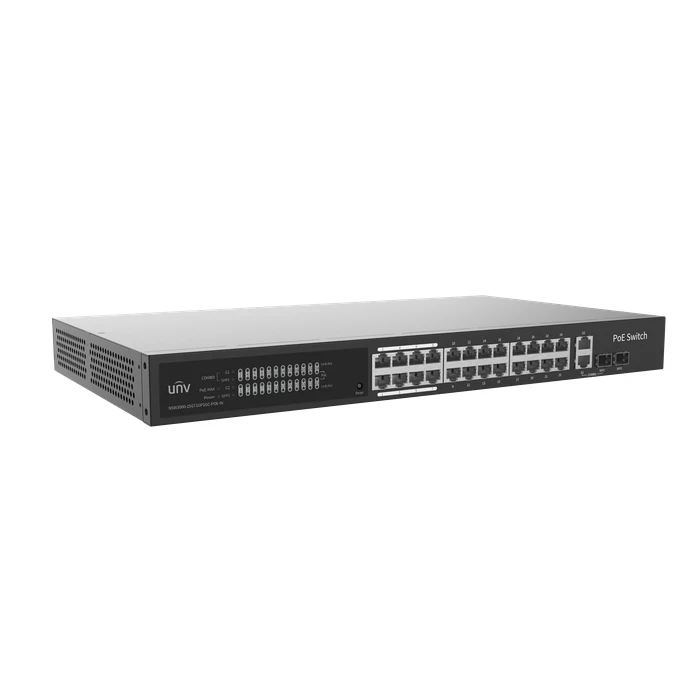

UNV 24-Port Gigabit 1U Rack Mount Cloud Managed PoE Switch with 370W Budget, SFP & Combo Uplinks | NSW3000-25GT1GP1GC-POE-IN
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | NSW3000-25GT1GP1GC-POE-IN |
| Product Category | 24-Port Gigabit Cloud Managed PoE Switch |
| Network Port Configuration | 24 x Gigabit PoE RJ45 Ports | 1 x Gigabit RJ45 Uplink | 1 x Gigabit SFP | 1 x Gigabit Combo |
| PoE Standards & Power Budget | IEEE 802.3af/at | Max 370W Total (Up to 30W per single port) |
| Switching Capacity & Forwarding | 54 Gbps / 40.176 Mpps (4M bit Packet Buffer) |
| MAC Address Table Size | 8K Entries |
| Cloud & Network Management | Web/Cloud Interface, QR-Code Mobile App Access, Remote PoE Control, Topology Mapping |
| Long-Range Transmission | Extend Mode up to 250m at 10Mbps Auto-Negotiation |
| Priority Ports | Ports 1 to 8 (First Priority Power & Data Allocation) |
| Security & Network Features | Port Isolation, Loop Detection, QoS Storm Control, Link Aggregation, Up to 32 VLANs |
| Power Supply & Max Consumption | AC 100 to 240V, 50/60Hz / Max Power: 390W |
| Cooling & Enclosure | 1 Cooling Fan / All-Metal Chassis / Rack-Mountable |
| Dimensions & Weight | 440 mm × 244.8 mm × 44 mm (1U Height) / Weight: 2.98 kg |
| Compliance Standard | NDAA Compliant |
| Ideal Applications | Enterprise IP CCTV Networks, Commercial Buildings, and Smart Office Deployments |
.
-
24 Gigabit PoE Ports with 370W Total Budget: Features 24 Gigabit PoE ports (IEEE 802.3af/at) delivering up to 30W per port and a total power budget of 370W.
-
54 Gbps Switching Throughput & Flexible Uplinks: Delivers 54 Gbps switching capacity supported by 1 dedicated Gigabit RJ45 port, 1 SFP slot, and 1 Combo port.
-
Cloud Management & Remote Mobile Control: Supports Web/Cloud management, QR-code device addition, real-time topology visualization, and remote PoE port rebooting.
-
250m Long-Range Extend Mode & Port Priority: Offers transmission and power supply up to 250 meters in Extend Mode, alongside priority power/data allocation for critical ports 1 to 8.
-
Rugged All-Metal Build & NDAA Compliant: Built with a rack-mountable metal casing, integrated cooling fan, loop detection, port isolation, and full NDAA compliance.
