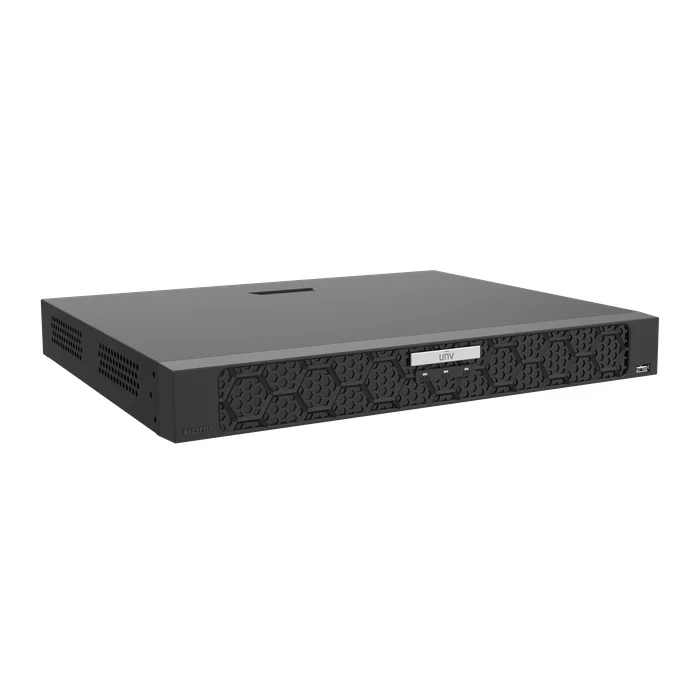

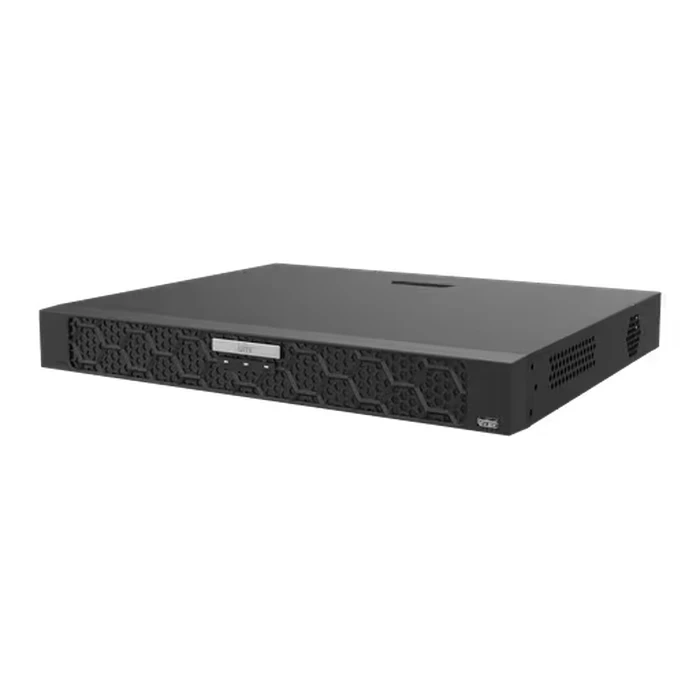

UNV 32-Channel 1U AI Network Video Recorder with 2 SATA Bays, Dual 4K HDMI, AcuSearch & Smart Intrusion Prevention | NVR502-32E-IM-G, NVR502-32E-IX-G
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code Matrix Variants | NVR502-32E-IM-G | NVR502-32E-IX-G |
| Product Category | Enterprise 32-Channel AI Network Video Recorder (1U Chassis) |
| IP Video Input Capacity | 32 Channels |
| System Bandwidth | 192 Mbps Incoming / 192 Mbps Outgoing |
| Decoding Compression Standards | Ultra 265 / H.265 / H.264 / G.711A / G.711U |
| Maximum Recording Resolution | Up to 32 Megapixels |
| Video Display Outputs | Dual HDMI (Up to 4K 3840 x 2160) / Dual VGA (1080P) Independent Output |
| Storage Interfaces & Capacity | 2 SATA Bays / Up to 24 TB per HDD (48 TB Max Internal) |
| Disk Redundancy & Grouping | Disk Group & Redundant Storage Support |
| Smart AI Analytics Support | Facial Recognition, SIP, AcuSearch, AcuTrack, SeekFree, LPR, and Behavior Analysis |
| Network Interfaces | 2 x RJ45 10M/100M/1000M Ethernet Ports (Multi-access & Load Balance) |
| Alarm & Peripheral Interfaces | 16-ch Alarm In / 4-ch Alarm Out / RS485 / RS232 / 32-ch IP Speaker / USB 2.0 & 3.0 |
| Power Supply & Consumption | DC 12V, 5A / Consumption: Less than or equal to 25W (Without HDDs) |
| Chassis Dimensions & Weight | 380 mm x 322.4 mm x 53 mm (1U Height) / 1.87 kg |
| Compliance & Standards | NDAA Compliant / CE, FCC, UL, RoHS, WEEE |
| Ideal Applications | Commercial Complexes, Retail Chains, Educational Institutes, Factories, and Control Rooms |
-
32-Channel IP Processing & 192Mbps Throughput: Manages up to 32 high-definition IP camera inputs with 192 Mbps incoming and 192 Mbps outgoing bandwidth for smooth multi-channel live viewing and recording.
-
2 SATA HDD Bays Supporting Up to 48TB Storage: Houses 2 SATA interfaces supporting up to 24 TB per disk (up to 48 TB total internal storage) alongside disk grouping and redundant storage modes.
-
Dual 4K HDMI & Dual VGA Independent Display: Features 2 HDMI outputs (supporting 4K resolution) and 2 VGA outputs with independent display output support for multi-screen monitoring setups.
-
Advanced Deep Learning AI & Behavioral Analytics: Powered by NVR-side AI capable of Facial Recognition, Smart Intrusion Prevention (SIP), AcuSearch, AcuTrack, People Flow Counting, and Behavioral Alerts (Helmet, Smoking, Flame, Fall, and Fight Detection).
-
Enterprise Connectivity & NDAA Compliance: Equipped with dual Gigabit Ethernet ports, 16 alarm inputs, 4 alarm outputs, 32-channel IP speaker support, and full NDAA compliance housed in a 1U chassis.
