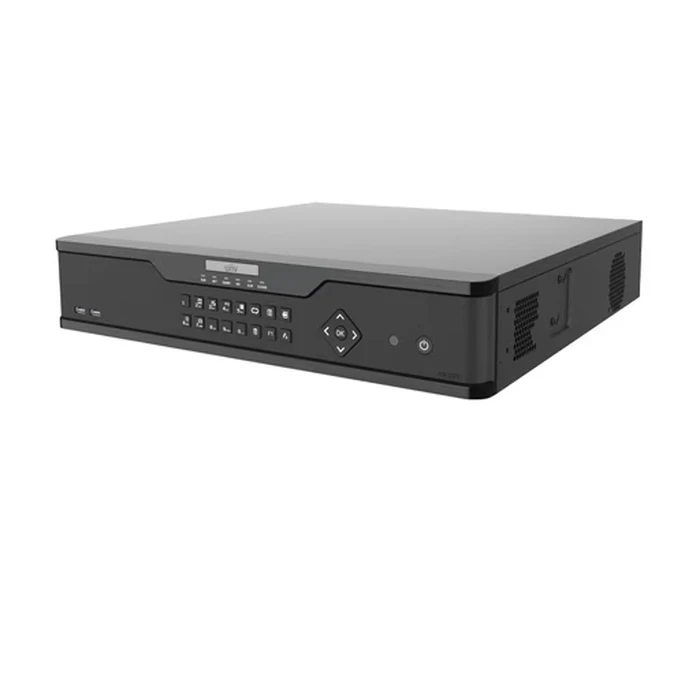

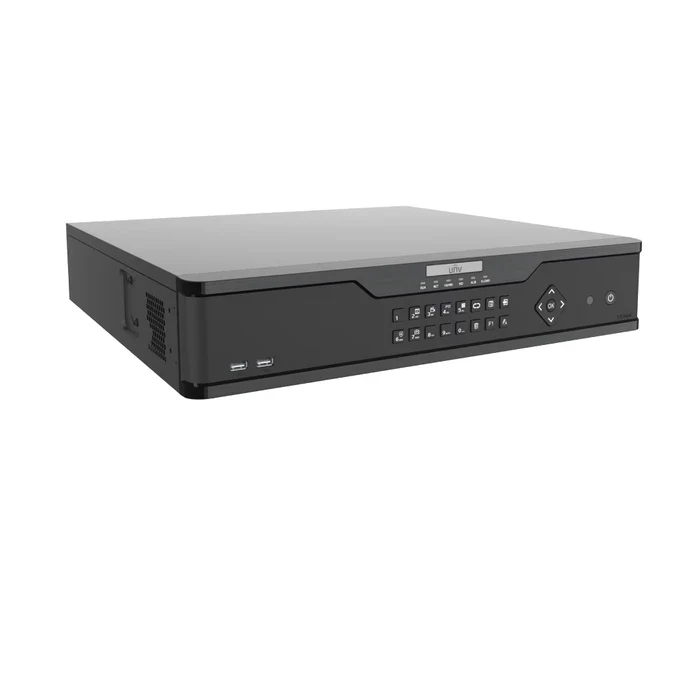

UNV 32-Channel Prime 2U Rackmount NVR with 4 SATA Bays, Dual 4K HDMI, RAID 1/5 & 16-Ch Facial Recognition | NVR304-32X
| Specification : | |
| Brand Profile | Uniview (UNV - Prime Series) |
| Model Code | NVR304-32X |
| Product Category | Enterprise 32-Channel Network Video Recorder (2U Rackmount) |
| IP Video Input Capacity | 32 Channels (UNIVIEW & ONVIF Compatible) |
| System Bandwidth | 384 Mbps Downstream / 384 Mbps Upstream |
| Decoding Compression Standards | Ultra 265 / H.265 / H.264 |
| Maximum Recording Resolution | Up to 12 Megapixels |
| Video Display Outputs | HDMI1/HDMI2: 4K (3840 x 2160) / VGA: 1080P |
| Storage Interfaces & Capacity | 4 SATA Bays / Up to 10 TB per HDD (40 TB Max Internal) |
| Disk Array & Redundancy | RAID 1, RAID 5 (Redundant Mode) |
| Smart AI Analytics Support | Facial Recognition (16-ch), SIP (16-ch), LPR (8-ch), People Counting, and Fisheye Dewarping |
| Network Interfaces | 2 x RJ45 Gigabit Ethernet Ports |
| Alarm & Peripheral Interfaces | 16-ch Alarm In / 4-ch Relay Out / RS485 / 3 x USB / 1 x eSATA |
| Power Supply & Consumption | AC 100V to 240V / Consumption: Less than 25W (Without HDDs) |
| Chassis Dimensions & Weight | 442 mm x 426 mm x 89 mm (2U Height) / 5.7 kg |
| Ideal Applications | Commercial Buildings, Educational Institutes, Retail Networks, Factories, and Control Rooms |
-
32-Channel IP Processing & 384Mbps Throughput: Manages up to 32 high-definition IP camera inputs with 384 Mbps incoming and 384 Mbps outgoing bandwidth for smooth multi-channel live viewing and recording.
-
4 SATA HDD Bays & RAID 1/5 Redundancy: Features 4 SATA interfaces supporting up to 10 TB per disk (up to 40 TB total internal storage) alongside hardware RAID 1 and RAID 5 array support for protected video archives.
-
Dual 4K Ultra-HD HDMI & Independent VGA Outputs: Equipped with dual 4K HDMI outputs (3840 x 2160) and a VGA output for flexible multi-monitor viewing in control room setups.
-
Deep Learning Facial Recognition & LPR: Includes 16 channels of AI Facial Recognition, 16 channels of Smart Intrusion Prevention (SIP), 8 channels of License Plate Recognition (LPR), and Fisheye Dewarping.
-
Enterprise Connectivity & Low-Power 2U Build: Offers 2 RJ45 Gigabit Ethernet ports, 16 alarm inputs, 4 relay outputs, eSATA backup support, and low power consumption (under 25W without HDDs) in a 2U rack-mount chassis.
