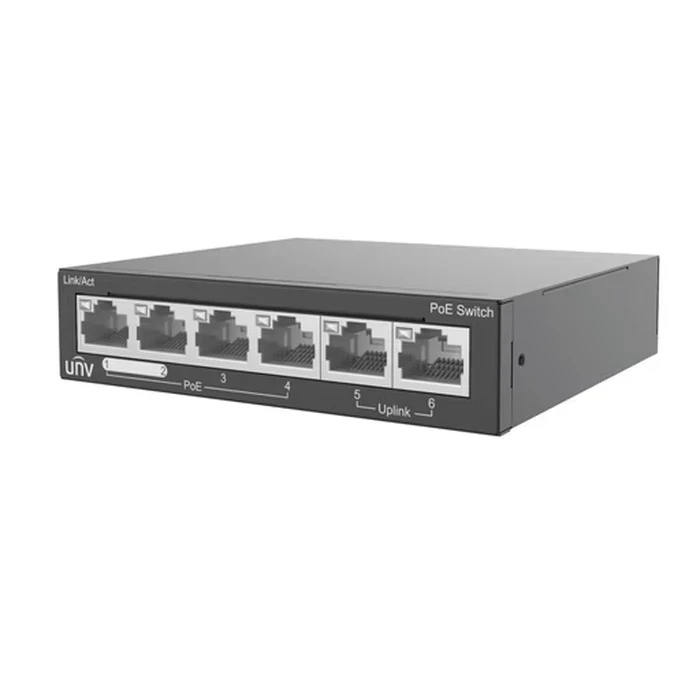

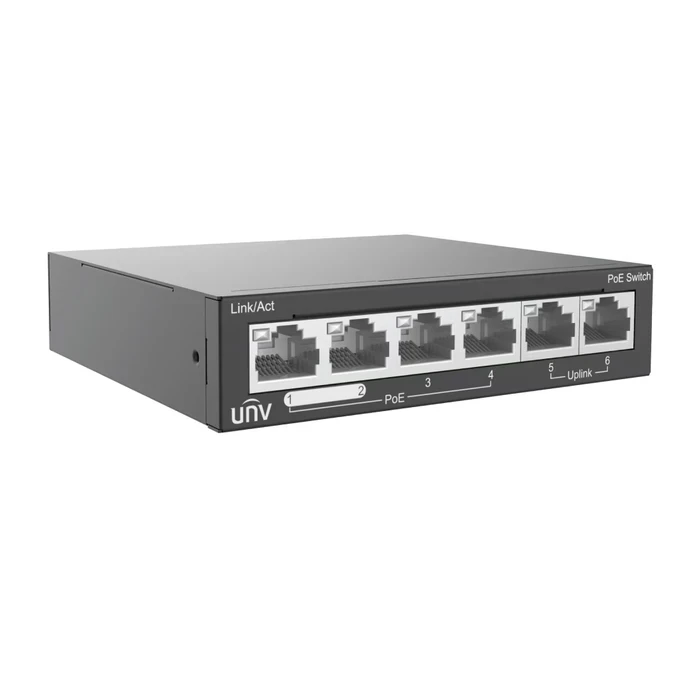

UNV 4-Port Fast Ethernet Unmanaged PoE Switch V2 with 65W Budget, Priority Ports & 250m Extend Mode | NSW2020-6T-POE-IN-V2
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | NSW2020-6T-POE-IN-V2 |
| Product Category | 4-Port Fast Ethernet Unmanaged PoE Switch (V2 Revision) |
| Network Port Configuration | 4 x 100 Mbps PoE RJ45 Ports | 2 x 100 Mbps RJ45 Uplink Ports (6 Ports Total) |
| PoE Standards & Power Budget | IEEE 802.3af/at | Max 65W Total Power Budget (Up to 30W per single port) |
| PoE Pin Mode | Mode A (1/2+, 3/6-) & Mode B (4/5+, 7/8-) |
| Priority Ports | Ports 1 to 2 (First Priority Power & Packet Delivery) |
| Switching Capacity & Forwarding | 1.2 Gbps / 0.90 Mpps (570K bit Packet Buffer Optimization) |
| MAC Address Table Size | 2K Entries |
| Selectable Working Modes | Default (Normal Mode) / EXTEND (Surveillance Mode up to 250m) |
| Cooling System & Chassis | Fanless (Silent Operation) / All-Metal Enclosure |
| Power Supply & Max Consumption | Internal AC Power (100 to 240V, 50/60Hz) / Max Power: 75W (PoE Capacity: 65W) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions & Weight | Product: 169 mm × 132 mm × 40 mm / Weight: 0.65 kg |
| Compliance Standard | NDAA Compliant |
| Ideal Applications | Compact CCTV Camera Deployments, Retail Outlets, and Small Office Networks |
-
4 PoE Fast Ethernet Ports & 2 Uplinks: Outfitted with 6 total 100 Mbps RJ45 ports, comprising 4 PoE-enabled ports for IP device powering and 2 dedicated uplink ports.
-
Upgraded 65W PoE Power Budget & Port Priority: Delivers up to 65W total PoE capacity (max 30W on a single port) with priority power allocation on ports 1 and 2 for mission-critical cameras.
-
250m Extend Mode & 570K Buffer: Features selectable Extend mode supporting up to 250-meter long-range video transmission alongside an enhanced 570K bit packet buffer to eliminate video lag.
-
Internal AC Power Supply & Dual PoE Pin Modes: Integrated 100–240V AC power module eliminating external power bricks, supporting Mode A (1236) and Mode B (4578) power delivery.
-
NDAA Compliant & Fanless Metal Enclosure: Fully NDAA compliant, built inside a durable metal chassis (169 mm × 132 mm × 40 mm, 0.65 kg) operating silently without cooling fans.
