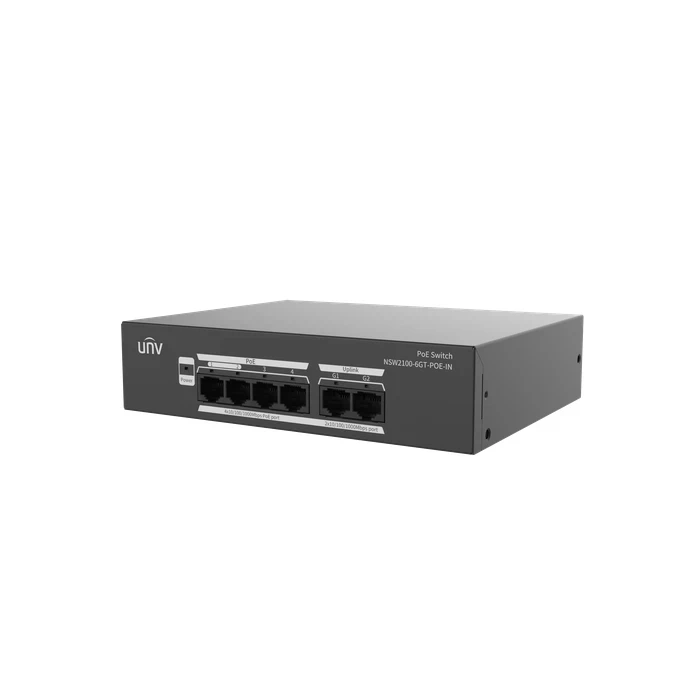

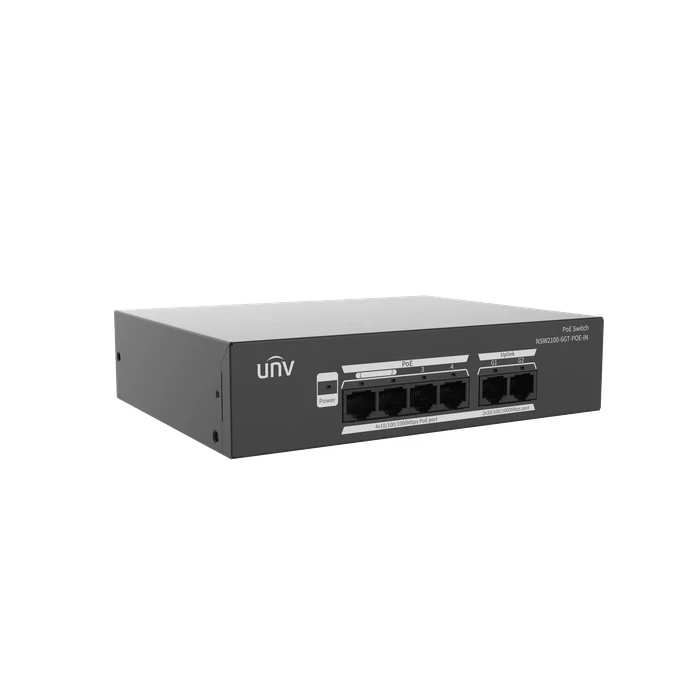

UNV 4-Port Gigabit Cloud Managed PoE Switch with 65W Budget, 2 Gigabit Uplinks & 250m Extend Mode | NSW2100-6GT-POE-IN
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | NSW2100-6GT-POE-IN |
| Product Category | 4-Port Gigabit Cloud Managed PoE Switch |
| Network Port Configuration | 4 x Gigabit PoE RJ45 Ports | 2 x Gigabit RJ45 Uplink Ports (6 Ports Total) |
| PoE Standards & Power Budget | IEEE 802.3af/at | Max 65W Total Power Budget (Up to 30W per single port) |
| PoE Pin Mode | Mode A (1/2+, 3/6-) & Mode B (4/5+, 7/8-) |
| Priority Ports | Ports 1 to 2 (First Priority Power Allocation) |
| Switching Capacity & Forwarding | 12 Gbps / 8.92 Mpps (1 Mbit Packet Buffer) |
| MAC Address Table Size | 2K Entries (Up to 32 Static MACs) |
| Cloud & Network Management | Web Interface, QR-Code Mobile App Access, Remote PoE Reboot, Port Flow Statistics |
| Long-Range & Security Features | Extend Mode up to 250m (10Mbps), Port Isolation, Loop Detection, Up to 6 VLANs, Link Aggregation |
| Cooling System & Chassis | Fanless (Silent Operation) / All-Metal Enclosure |
| Power Supply & Max Consumption | Internal AC Power (100 to 240V, 50/60Hz) / Max Power: 70W (PoE Capacity: 65W) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Dimensions & Weight | Product: 169 mm × 132 mm × 40 mm / Weight: 0.65 kg |
| Compliance Standard | NDAA Compliant |
| Ideal Applications | High-Definition CCTV Camera Deployments, Retail Stores, and Small Office Gigabit Networks |
-
4 Gigabit PoE Ports & 2 Gigabit Uplinks: Outfitted with 6 total Gigabit RJ45 ports, comprising 4 PoE-enabled 10/100/1000 Mbps ports for high-bandwidth IP devices and 2 Gigabit uplink ports.
-
65W Total PoE Budget & Port Priority: Delivers a 65W total PoE power budget (max 30W on a single port) with priority power allocation on ports 1 and 2 for mission-critical cameras.
-
Cloud App Management & Remote Power Reset: Supports Web/Cloud login, QR-code app pairing for real-time monitoring, and remote PoE power rebooting directly from mobile devices.
-
250m Long-Range Extend Mode & Security Features: Features Extend mode supporting up to 250m long-distance transmission alongside port isolation, loop detection, and link aggregation.
-
Fanless All-Metal Build & NDAA Compliant: Integrated 100–240V AC internal power supply, silent fanless thermal design, durable metal casing (169 mm × 132 mm × 40 mm, 0.65 kg), and full NDAA compliance.
