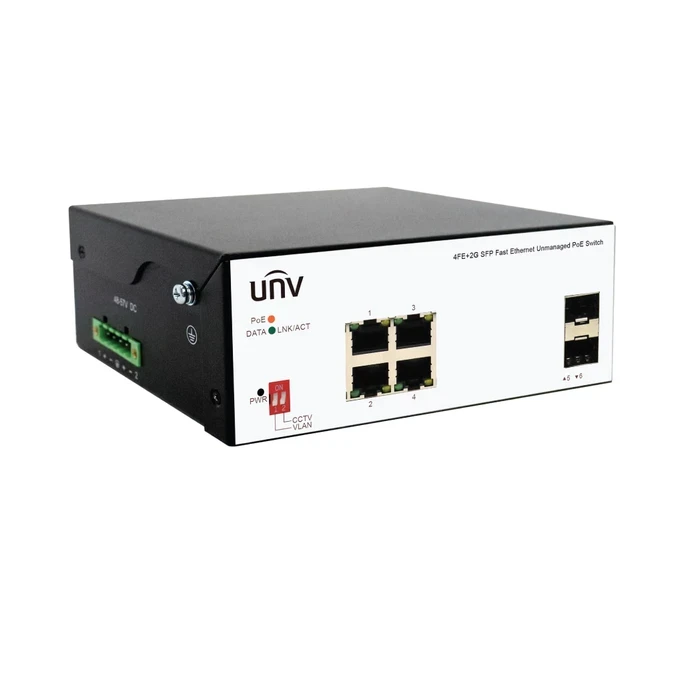

UNV 4-Port Industrial Fast Ethernet PoE Switch with 2 Gigabit SFP Slots & Harsh Environment Protection | ISW2000-4T2GP-POE-IN
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | ISW2000-4T2GP-POE-IN |
| Product Category | 4-Port Industrial Unmanaged PoE Network Switch |
| Network Port Configuration | 4 x 10/100 Mbps PoE RJ45 Ports | 2 x 1000 Mbps SFP Slots (6 Ports Total) |
| PoE Standards & Power Input | IEEE 802.3af/at | External DC 48–57V Input (Max System Power: 75W) |
| Switching Capacity & Forwarding | 4.8 Gbps / 3.57 Mpps (2 Mbit Packet Buffer) |
| MAC Address & Jumbo Frame | 4K MAC Table / 16KBytes Jumbo Frame Support |
| Transfer Mode & IEEE Standards | Store-and-Forward / IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3af, 802.3at |
| Surge & ESD Protection Rating | ESD: Contact ±6KV, Air ±8KV | Surge: Differential ±2KV, Common ±4KV |
| Status Indicators | PWR (Power), LNK/ACT (Link & Activity), PoE, DATA |
| Operating Temperature Range | -30 °C to 65 °C (-22 °F to 149 °F) |
| Operating Humidity | 5% to 95% RH (Non-condensing) |
| Chassis Dimensions | 145 mm × 109 mm × 58 mm |
| Ideal Applications | Industrial Automation, Outdoor CCTV Networks, Transport Systems, and Perimeter Security |
-
4 PoE Fast Ethernet Ports & 2 Gigabit SFP Slots: Features 4 Fast Ethernet (10/100 Mbps) PoE ports for camera power delivery and 2 dedicated Gigabit SFP optical slots for high-speed fiber uplinks.
-
4.8 Gbps Switching Capacity & 16K Jumbo Frames: Delivers a 4.8 Gbps switching capacity and 3.57 Mpps forwarding rate with 16KBytes Jumbo Frame support for data flow.
-
Rugged Wide-Temperature Industrial Build: Engineered to operate continuously across extreme environmental temperatures ranging from -30°C to 65°C (-22°F to 149°F).
-
Enhanced Industrial Electrical & ESD Protection: Built with Contact ±6KV / Air ±8KV ESD resistance and ±4KV common mode / ±2KV differential mode surge protection against power fluctuations.
-

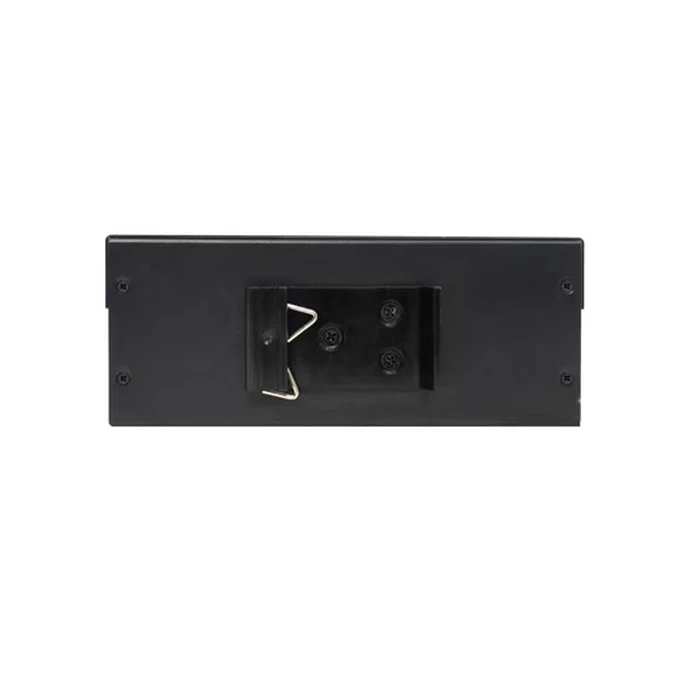

DIN-Rail & Enclosure-Ready Form Factor: Compact hardware dimensions (145 mm × 109 mm × 58 mm) designed for effortless installation inside industrial control panels and outdoor enclosures.
