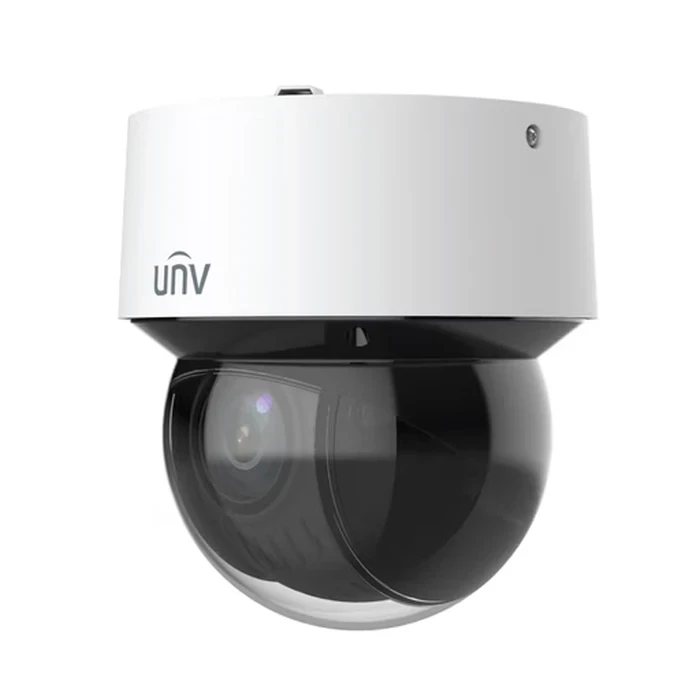

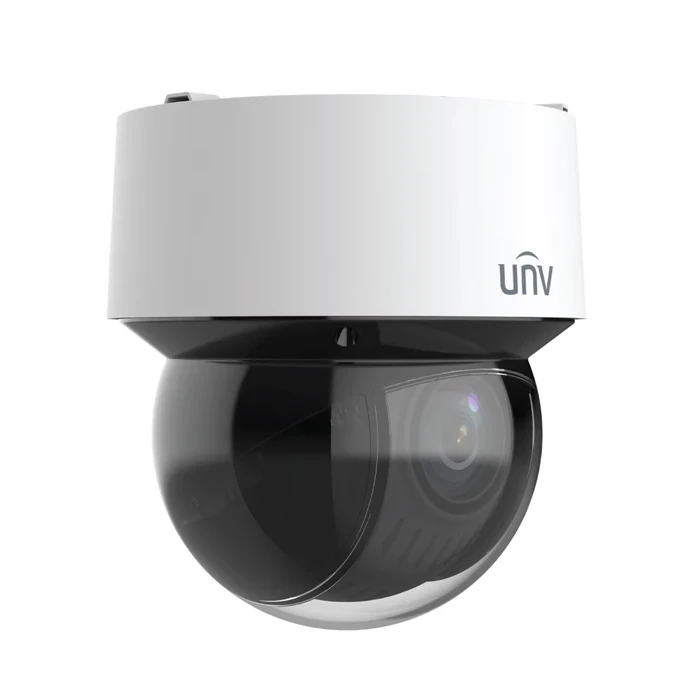

UNV 4MP 16X LightHunter IR Outdoor Network PTZ Dome Camera with Auto Tracking, 100m Smart IR & IK10 Vandal Rating | IPC6434LR-X16-VG1
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | IPC6434LR-X16-VG1 |
| Product Category | 4MP 16X LightHunter Network PTZ Dome Camera |
| Image Sensor | 1/2.9" CMOS Sensor |
| Video Resolution & Frame Rate | 4MP (2688 x 1520) @ 30 fps (Main Stream) |
| Focal Length & Optical Zoom | 5.5 mm to 88 mm (16X Optical Zoom) |
| Field of View (H / V / D) | Horizontal: 50.85° to 3.47° | Vertical: 29.94° to 1.95° |
| Night Vision & Illumination Range | Smart IR up to 100 m (328 ft) / 850 nm Wavelength |
| Low Light Sensitivity | Color: 0.005 Lux (F1.78, AGC ON), 0 Lux with IR |
| Wide Dynamic Range (WDR) | 120 dB True WDR |
| Video Compression Standards | Ultra 265 / H.265 / H.264 / MJPEG |
| Smart AI Analytics | Auto Tracking (Human/Vehicle Filter) & Smart Intrusion Prevention (SIP) |
| Audio & Alarm Interfaces | 1-ch Audio In / 1-ch Audio Out | 2-ch Alarm In / 1-ch Alarm Out | RS485 |
| Local Edge Storage | MicroSD Slot (Supports up to 512 GB) | ANR & NAS (NFS) |
| PTZ Movement Range | Pan: 360° Endless (0.1°/s to 240°/s) | Tilt: -5° to 90° Auto Flip (0.1°/s to 120°/s) |
| Power Supply & Consumption | DC 12V (±10%) / PoE+ (IEEE 802.3at) / Max 23W |
| Ingress & Impact Protection | IP66 Weatherproof / IK10 Vandal-Resistant / 6 KV Surge Protection |
| Operating Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Dimensions & Weight | Ø167 mm × 181 mm (Ø6.6" × 7.1") / 2.3 kg |
-
4MP Ultra-HD Resolution & 16X Optical Zoom: Features a 1/2.9" CMOS sensor delivering 2688 x 1520 @ 30 fps, paired with a 5.5–88 mm motorized lens with 16X optical zoom for long-distance detail identification.
-
LightHunter Technology & 100m Smart IR: Maintains clear video in low-light environments (down to 0.005 Lux) and delivers night vision up to 100 meters using Smart IR technology.
-
AI Auto Tracking & Smart Intrusion Prevention: Powered by deep-learning algorithms for human and vehicle target classification, supporting automated target tracking and false alarm filtering.
-
120dB True WDR & Edge Storage Support: Equipped with 120 dB True WDR for high-contrast scenes and supports local recording via MicroSD card up to 512 GB along with ANR and NAS.
-
IP66 & IK10 Vandal-Proof Durable Construction: Enclosed in a compact dome casing rated IP66 for weather protection and IK10 for high-impact vandal resistance, supported by 6 KV surge protection.
