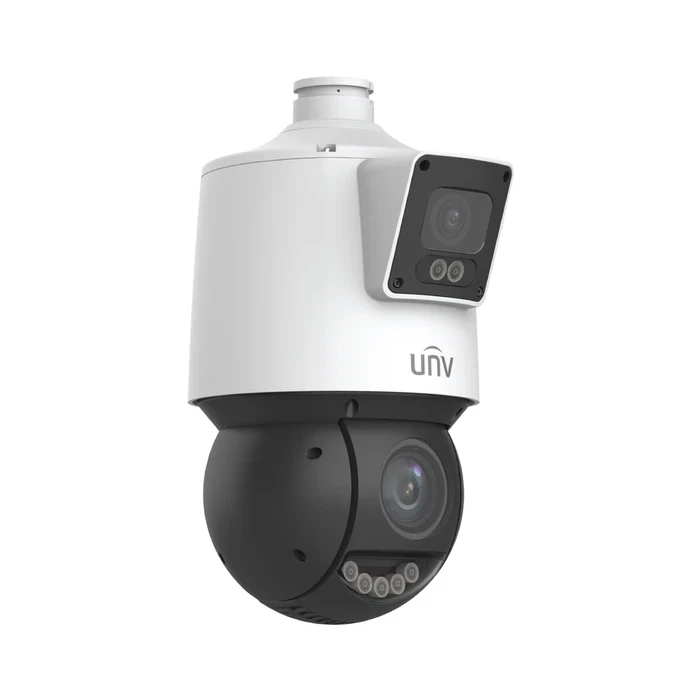

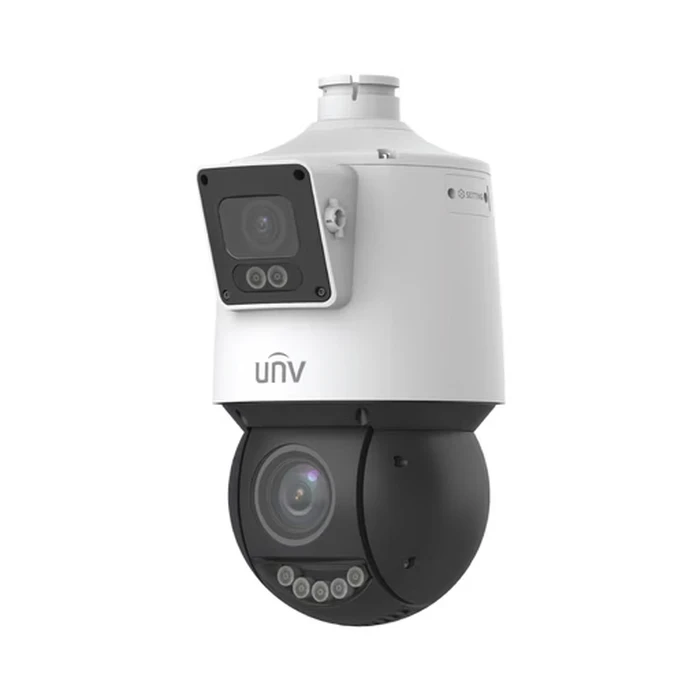

UNV 4MP 25X LightHunter Dual-Lens PTZ Network Camera with Panoramic Lenses, Smart IR & Active Tracking | IPC94144SFW-X25-F40C
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | IPC94144SFW-X25-F40C |
| Product Category | 4MP 25X LightHunter Dual-Lens Network PTZ Camera |
| Camera Configuration | Channel 1: Panoramic Fixed Lens | Channel 2: PTZ Detail Lens |
| Image Sensors | Channel 1: 1/1.8" CMOS | Channel 2: 1/2.7" CMOS |
| Video Resolution & Frame Rate | 4MP (2688 x 1520) @ 30 fps (Main Stream for both channels) |
| Focal Length & Optical Zoom | Panoramic: 4.0 mm (F1.0) | PTZ: 4.8–120 mm (25X Optical Zoom, F1.5–F3.8) |
| Night Vision & Illumination Range | Panoramic: 30 m Warm Light | PTZ: 100 m Smart IR (850 nm) |
| Low Light Sensitivity | Panoramic: 0.0005 Lux (Color) | PTZ: 0.003 Lux (Color) |
| Wide Dynamic Range (WDR) | 120 dB True WDR |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Smart AI Analytics | Smart Intrusion Prevention (Human/Vehicle Filtering), Linkage Tracking, People Counting |
| Audio Interfaces | 1-ch Audio In / 1-ch Audio Out / Built-in Speaker |
| Alarm & Serial Interfaces | 2-ch Alarm Input / 1-ch Alarm Output / 1 x RS485 Port |
| Local Edge Storage | MicroSD Slot (Supports up to 512 GB) |
| Power Supply & Consumption | DC 12V (±25%) / PoE+ (IEEE 802.3at) / Max 24W |
| Ingress & Protection Rating | IP66 Weatherproof / 4 KV Surge Protection |
| Operating Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Dimensions & Weight | 304 mm x 195 mm x 163 mm / 2.27 kg |
-
Dual-Lens Architecture (Panoramic + 25X Zoom): Combines a fixed 4.0 mm wide-angle panoramic channel with a 4.8–120 mm 25X optical zoom detail channel for total perimeter awareness without blind spots.
-
LightHunter Technology & Dual Illuminators: Features exceptional low-light sensitivity, up to 100 m Smart IR range on the PTZ channel, and up to 30 m Warm Light full-color night vision on the panoramic channel.
-
Smart AI Intrusion Prevention & Smart Linkage Tracking: Powered by deep-learning analytics for human and vehicle classification, automatically triggering the PTZ lens to track targets identified by the panoramic lens.
-
120dB True WDR & Two-Way Audio Integration: Delivers crisp image clarity in high-contrast lighting via 120 dB WDR and includes a built-in speaker and microphone interface for real-time talk-down defense.
-
Rugged IP66 Housing & Edge Storage Support: Built for harsh environments (-40°C to 65°C) with IP66 weatherproofing, 4KV surge protection, and local recording support via MicroSD card up to 512 GB.
