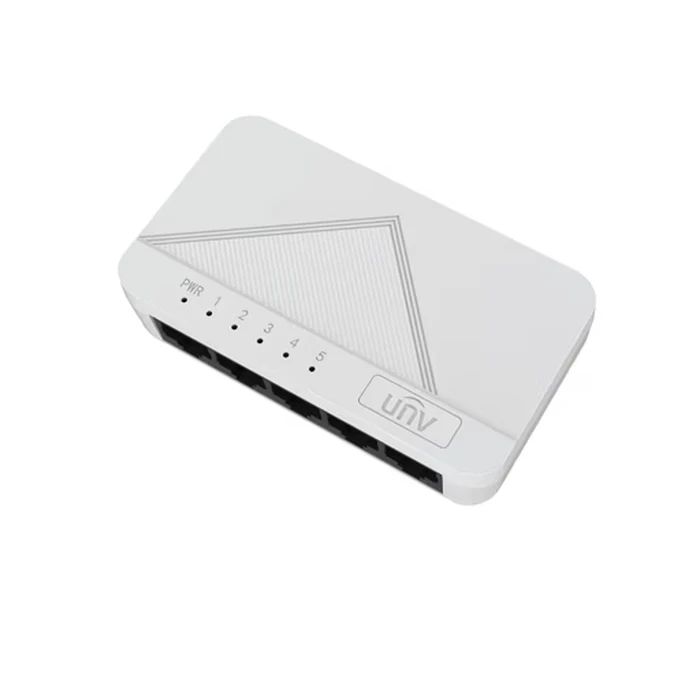

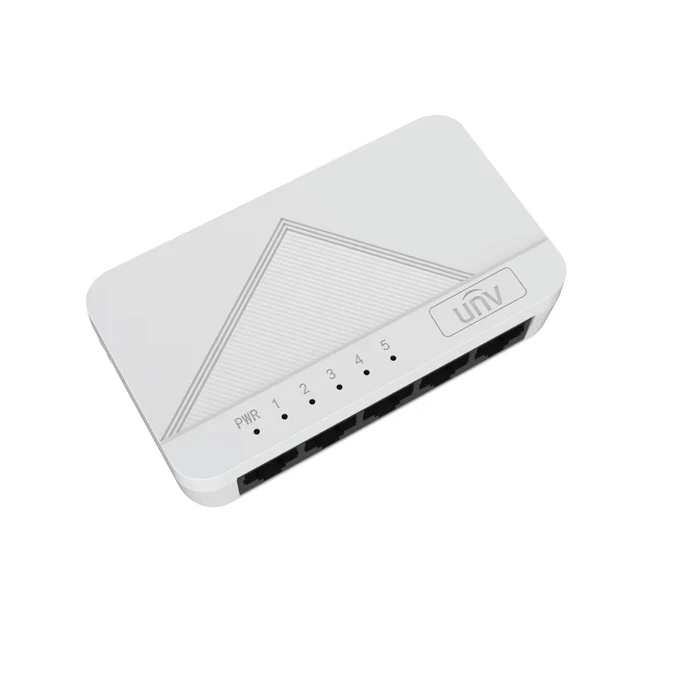

UNV 5-Port 10/100Mbps Compact Unmanaged Fast Ethernet Desktop Network Switch | NSW1010-5T-IN
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | NSW1010-5T-IN |
| Product Category | 5-Port Unmanaged Fast Ethernet Switch |
| Network Port Configuration | 5 x 10/100 Mbps RJ45 Auto-Negotiation Ports |
| Switching Capacity | 1.0 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| MAC Address Table Size | 2K Entries |
| Supported IEEE Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Cooling System | Fanless (Silent Operation) |
| Status Indicators | Power (AC Input Status), Link/Act (Network Connection & Activity) |
| Mounting Options | Desktop Mount / Wall Mount |
| Power Supply & Input | External Power Adapter (DC 5V / 1A) |
| Operating Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions & Weight | Product: 92 mm × 51 mm × 21.5 mm / Weight: 0.062 kg |
| Ideal Applications | Home Offices, Retail Outlets, Small Workgroups, and IP Surveillance Networks |
-
5 High-Speed Fast Ethernet Ports: Features 5 auto-negotiating 10/100 Mbps RJ45 ports for reliable expansion of wired networks.
-
1.0 Gbps Switching Capacity: Delivers a switching bandwidth of 1.0 Gbps and a packet forwarding performance of 0.744 Mpps for smooth data transfer.
-
Plug-and-Play Unmanaged Operation: Requires zero software configuration or setup, enabling immediate deployment out of the box.
-
Fanless & Silent Operation: Designed without cooling fans for completely silent running, ideal for desktop, classroom, and office environments.
-
Flexible Mounting & Compact Design: Ultra-compact footprint (92 mm × 51 mm × 21.5 mm) supporting both desktop and wall-mount installation options.
