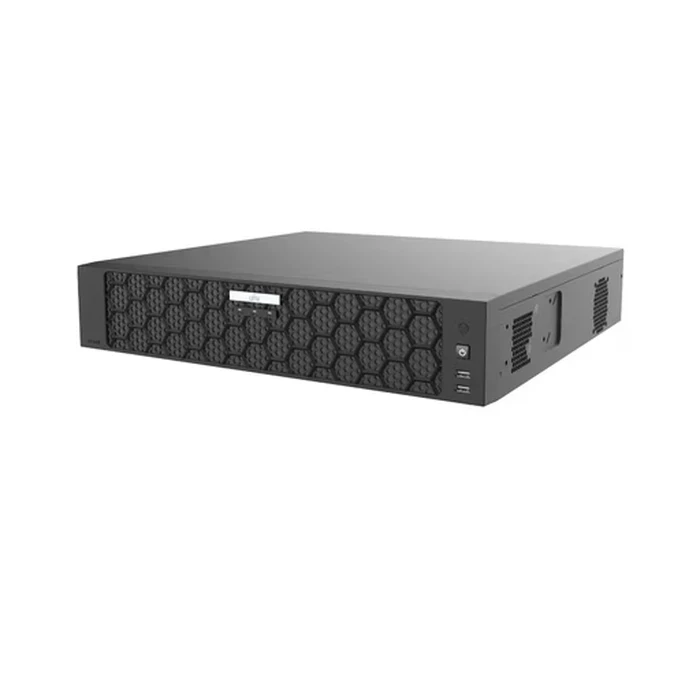

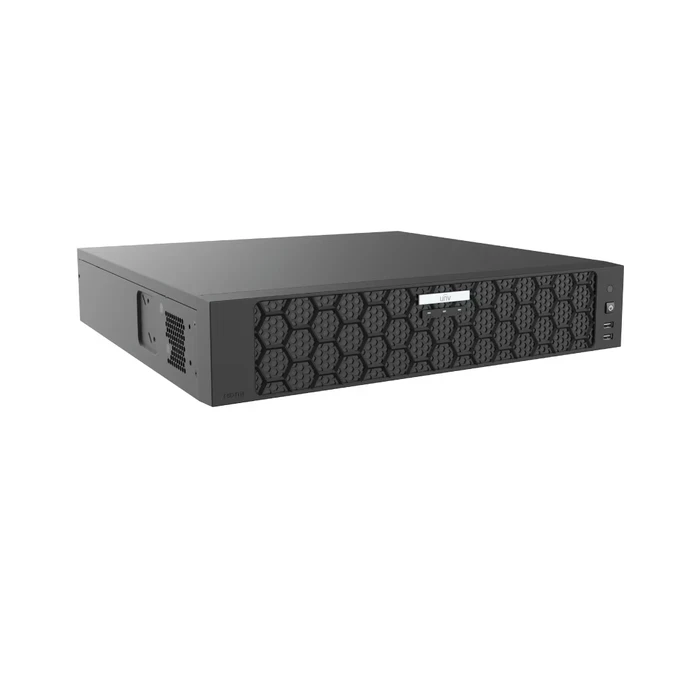

Uniview 64-Channel 2U Rackmount Enterprise NVR with 8 SATA Bays, 4K HDMI, RAID 1/5 & Dual Gigabit Ports | NVR508-64B
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | NVR508-64B |
| Product Category | Enterprise 64-Channel Network Video Recorder (2U Rackmount) |
| IP Video Input Capacity | 64 Channels |
| System Bandwidth | 320 Mbps Incoming / 160 Mbps Outgoing |
| Decoding Compression Standards | Ultra 265 / H.265 / H.264 / G.711A / G.711U |
| Maximum Recording Resolution | Up to 16 Megapixels |
| Video Display Outputs | HDMI: 4K (3840 x 2160) / VGA: 1080P (Independent/Simultaneous) |
| Storage Interfaces & Capacity | 8 SATA Bays / Up to 24 TB per HDD (192 TB Max Internal) |
| Disk Redundancy & RAID | RAID 1, RAID 5 / Disk Group & Redundant Storage Support |
| Smart AI Analytics Support | Face Detection, LPR, Vehicle/Human Search, People Counting, and Heat Maps |
| Network Interfaces | 2 x RJ45 10M/100M/1000M Self-Adaptive Ethernet Ports |
| Alarm & Peripheral Interfaces | 16-ch Alarm In / 4-ch Alarm Out / RS485 / 2 x USB 2.0 / 1 x USB 3.0 |
| Power Supply & Consumption | AC 100V to 240V / Consumption: <= 25W (Without HDDs) |
| Chassis Dimensions & Weight | 442 mm x 426 mm x 89 mm (2U Height) / <= 5.5 kg |
| Ideal Applications | Commercial Complexes, Educational Campuses, Factories, Shopping Malls, and Control Rooms |
-
64-Channel IP Processing & 320Mbps Throughput: Manages up to 64 high-definition IP camera inputs with 320 Mbps incoming and 160 Mbps outgoing bandwidth for smooth multi-channel live viewing and recording.
-
8 SATA HDD Bays & RAID 1/5 Storage Redundancy: Houses 8 SATA interfaces supporting up to 24 TB per disk (up to 192 TB total internal storage) with disk grouping and RAID 1/5 array support for data protection.
-
4K Ultra-HD HDMI & Independent VGA Outputs: Equipped with a 4K HDMI output (3840 x 2160) and an independent VGA output for versatile dual-monitor control room viewing.
-
Deep Learning Smart AI Analytics: Supports advanced IPC analytics including Face Detection, License Plate Recognition (LPR), Vehicle Search, Human Tracking, People Counting, and Heat Maps.
-
Enterprise Connectivity & Low-Power 2U Build: Features dual 10/100/1000M Ethernet ports, 16 alarm inputs, and 4 alarm outputs housed in a durable 2U rack-mount chassis with low power consumption (25W without HDDs).
