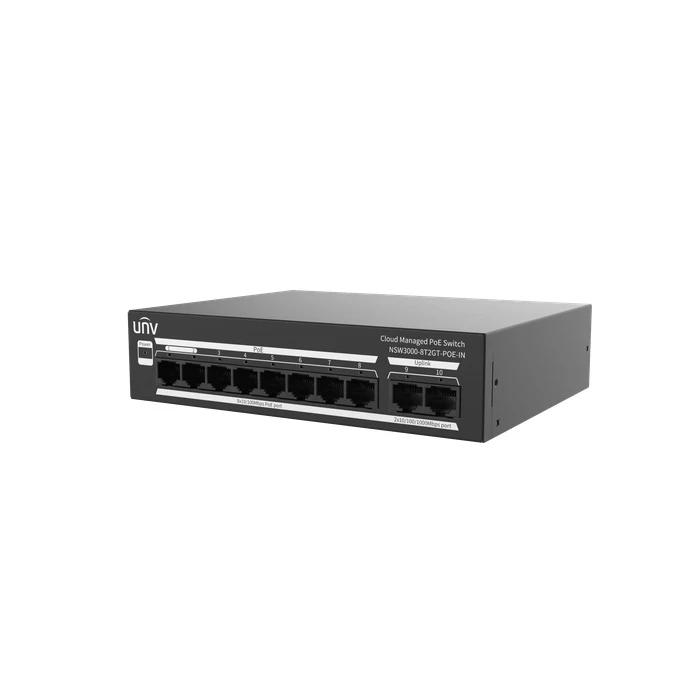

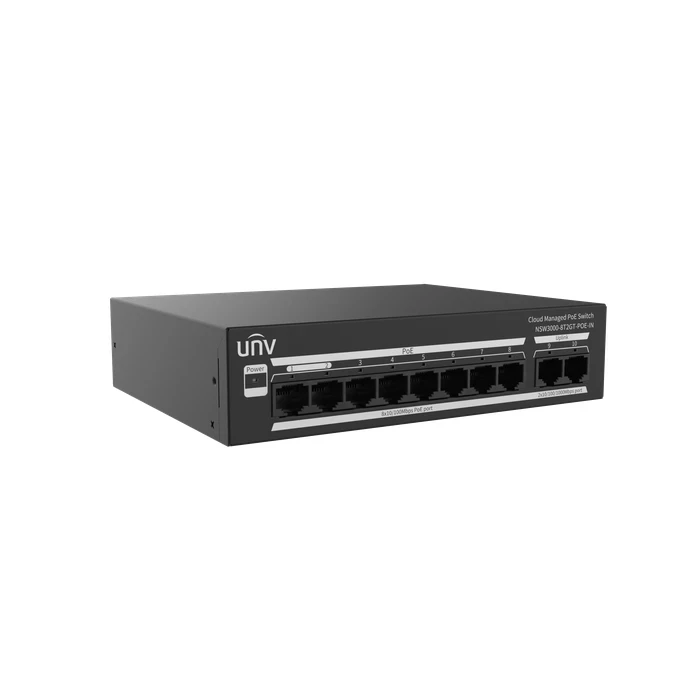

UNV 8-Port Fast Ethernet Cloud Managed PoE Switch with 120W Budget, 2 Gigabit Uplinks & 250m Extend Mode | NSW3000-8T2GT-POE-IN
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | NSW3000-8T2GT-POE-IN |
| Product Category | 8-Port Fast Ethernet Cloud Managed PoE Switch |
| Network Port Configuration | 8 x 10/100 Mbps PoE RJ45 Ports | 2 x 10/100/1000 Mbps Gigabit RJ45 Uplinks |
| PoE Standards & Power Budget | IEEE 802.3af/at | Max 120W Total Power Budget (Up to 30W per single port) |
| PoE Pin Mode | Mode A (1/2+, 3/6-) & Mode B (4/5+, 7/8-) |
| Priority Ports | Ports 1 to 2 (First Priority Power & Data Forwarding) |
| Switching Capacity & Forwarding | 5.6 Gbps / 4.17 Mpps (2 Mbit Packet Buffer) |
| MAC Address Table Size | 4K Entries |
| Cloud & Network Management | Web/Cloud Interface, QR-Code Mobile Access, Remote PoE Reboot, Auto-Topology Generation |
| Long-Range & Security Features | Extend Mode up to 250m (10Mbps), Port Isolation, Loop Detection, Broadcast Storm Control, Up to 32 VLANs |
| Cooling System & Chassis | Fanless (Silent Operation) / All-Metal Enclosure |
| Power Supply & Max Consumption | Internal AC Power (100 to 240V, 50/60Hz) / Max Power: 130W (PoE Capacity: 120W) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Dimensions & Weight | Product: 169 mm × 132 mm × 40 mm / Weight: 0.67 kg |
| Compliance Standard | NDAA Compliant |
| Ideal Applications | Commercial CCTV Camera Deployments, Retail Networks, and Smart Office Deployments |
-
8 Fast Ethernet PoE Ports & 2 Gigabit Uplinks: Outfitted with 10 total RJ45 ports, comprising 8 PoE-enabled 10/100 Mbps ports and 2 high-speed Gigabit uplink ports.
-
120W Total PoE Budget & Port Priority: Delivers a 120W PoE power budget (max 30W on a single port) with priority power and packet forwarding allocation on ports 1 and 2.
-
Cloud Management & Remote App Power Reset: Supports Web/Cloud management, QR-code mobile app pairing, automatic video topology discovery, and remote PoE power rebooting.
-
250m Long-Range Extend Mode & VLAN Support: Features Extend mode supporting up to 250m long-distance video/power transmission alongside port isolation and up to 32 VLANs.
-
Fanless All-Metal Build & NDAA Compliant: Integrated 100–240V AC power module, silent fanless thermal design, durable metal casing (169 mm × 132 mm × 40 mm), and full NDAA compliance.
