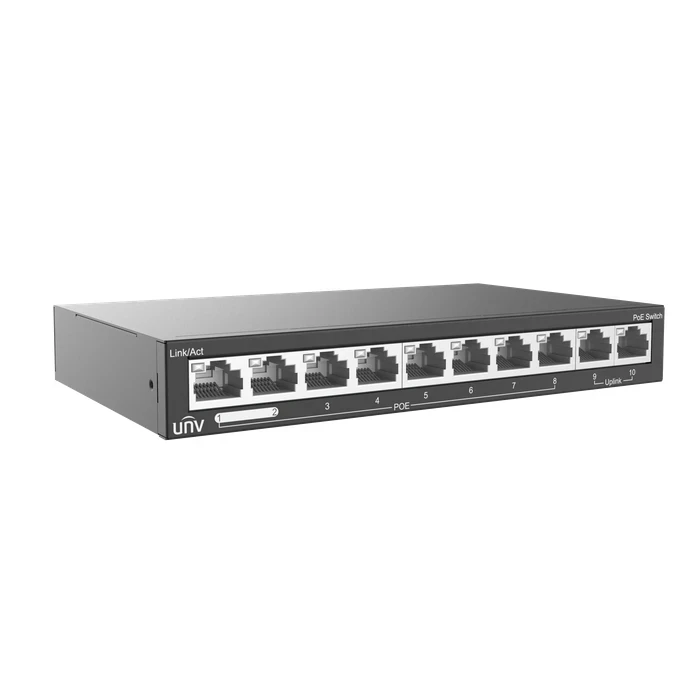

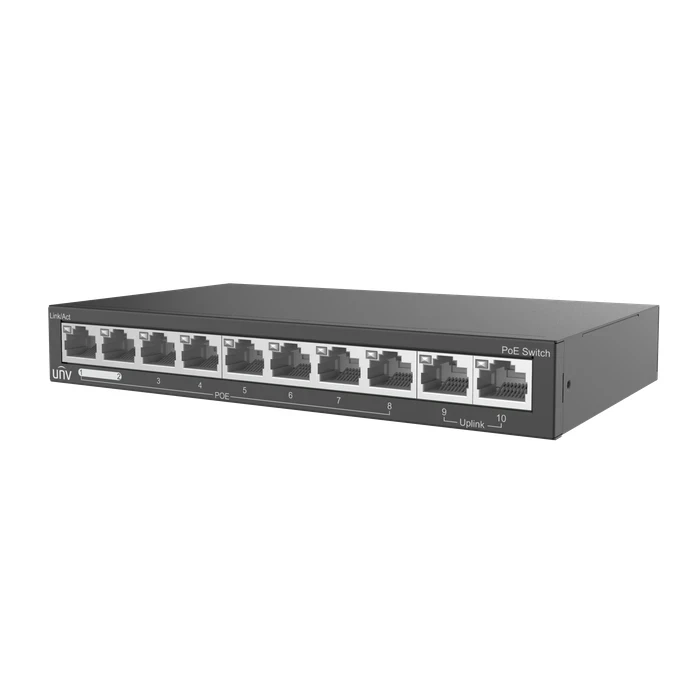

UNV 8-Port Fast Ethernet Unmanaged PoE Switch with 88W Budget, Priority Ports & 250m Extend Mode | NSW2020-10T-POE-IN
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | NSW2020-10T-POE-IN |
| Product Category | 8-Port Fast Ethernet Unmanaged PoE Switch |
| Network Port Configuration | 8 x 100 Mbps PoE RJ45 Ports | 2 x 100 Mbps RJ45 Uplink Ports (10 Ports Total) |
| PoE Standards & Power Budget | IEEE 802.3af/at | Max 88W Total Power Budget (Up to 30W per single port) |
| Priority Ports | Ports 1 to 2 (First Priority Power & Packet Delivery) |
| Switching Capacity & Forwarding | 2.0 Gbps / 1.49 Mpps (448K bit Packet Buffer Optimization) |
| MAC Address Table Size | 1K Entries |
| Selectable Working Modes | Default (Normal Mode) / EXTEND (Surveillance Mode up to 250m) |
| Cooling System & Chassis | Fanless (Silent Operation) / Ultra-Compact All-Metal Enclosure |
| Power Supply & Max Consumption | External Power Adapter (DC 48/51V) / Max Power: 94W (PoE Capacity: 88W) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions & Weight | Product: 171 mm × 103 mm × 25 mm / Weight: 0.29 kg |
| Compliance Standard | NDAA Compliant |
| Ideal Applications | Medium CCTV Camera Deployments, Retail Outlets, and Small-to-Medium Office Networks |
-
8 PoE Fast Ethernet Ports & 2 Uplinks: Outfitted with 10 total 100 Mbps RJ45 ports, comprising 8 PoE-enabled ports for IP device powering and 2 dedicated uplink ports.
-
88W PoE Power Budget & Port Priority: Delivers up to 88W total PoE capacity (max 30W on a single port) with priority power allocation on ports 1 and 2 for mission-critical cameras.
-
250m Extend Mode & Buffer Optimization: Features selectable Extend mode supporting up to 250-meter long-range video transmission alongside buffer optimization to prevent video lagging.
-
Ultra-Compact Metal Chassis & Fanless Design: Encased in a lightweight, durable metal housing (171 mm × 103 mm × 25 mm, 0.29 kg) operating silently without cooling fans.
-
NDAA Compliant & Enterprise Standards: Fully NDAA compliant, supporting IEEE 802.3af/at standards with integrated LED power and PoE-Max threshold monitoring.
