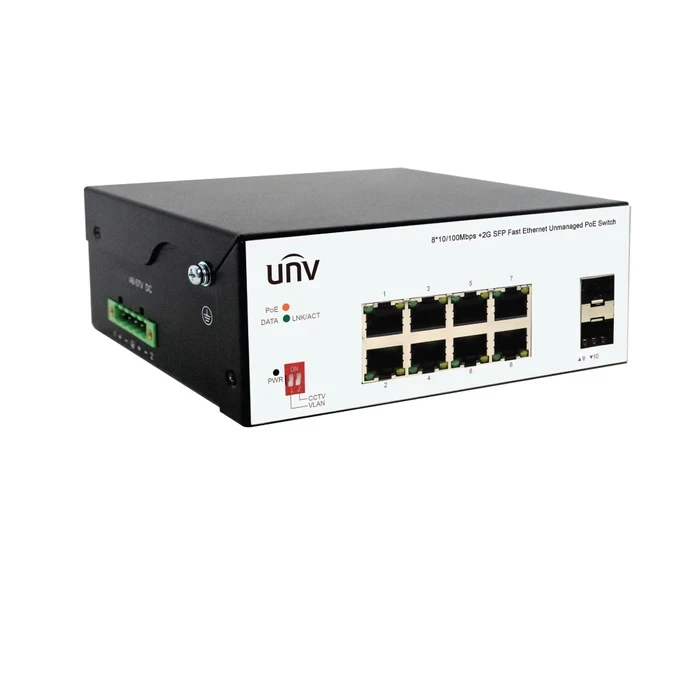

UNV 8-Port Industrial Fast Ethernet PoE Switch with 120W Budget, 2 Gigabit SFP Slots & Harsh Environment Protection | ISW2000-8T2GP-POE-IN
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | ISW2000-8T2GP-POE-IN |
| Product Category | 8-Port Industrial Unmanaged PoE Network Switch |
| Network Port Configuration | 8 x 10/100 Mbps PoE RJ45 Ports | 2 x 1000 Mbps SFP Slots (10 Ports Total) |
| PoE Standards & Power Budget | IEEE 802.3af/at | Max 120W Total PoE Budget (Up to 30W per single port) |
| Switching Capacity & Forwarding | 5.6 Gbps / 4.17 Mpps (2 Mbit Packet Buffer) |
| MAC Address & Jumbo Frame | 4K MAC Table / 16KBytes Jumbo Frame Support |
| Transfer Mode & IEEE Standards | Store-and-Forward / IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3af, 802.3at |
| Surge & ESD Protection Rating | ESD: Contact ±6KV, Air ±8KV | Surge: Differential ±2KV, Common ±4KV |
| Status Indicators | PWR (Power), LNK/ACT (Link & Activity), PoE |
| Power Supply & Max Consumption | External Adapter (DC 48–57V / AC 100–240V) | Max Power: 135W (with PoE) |
| Operating Temperature Range | -30 °C to 65 °C (-22 °F to 149 °F) |
| Operating Humidity | 5% to 95% RH (Non-condensing) |
| Chassis Dimensions | 145 mm × 109 mm × 58 mm |
| Ideal Applications | Industrial Automation, Harsh Outdoor CCTV Networks, Transport Systems, and Perimeter Security |
-
8 PoE Fast Ethernet Ports & 2 Gigabit SFP Slots: Outfitted with 8 Fast Ethernet (10/100 Mbps) PoE ports for IP camera power delivery and 2 dedicated Gigabit SFP optical slots for high-speed fiber uplinks.
-
120W Total PoE Power Budget: Delivers up to 120W of total PoE capacity (supporting IEEE 802.3af/at standards) with up to 30W on a single port for power-demanding outdoor IP devices.
-
5.6 Gbps Switching Capacity & 16K Jumbo Frames: Delivers a 5.6 Gbps switching throughput and 4.17 Mpps forwarding rate with 16KBytes Jumbo Frame support for smooth data flow.
-
Rugged Wide-Temperature Industrial Build: Engineered to operate continuously across extreme environmental temperatures ranging from -30°C to 65°C (-22°F to 149°F).
-
Enhanced Industrial Electrical & ESD Protection: Built with Contact ±6KV / Air ±8KV ESD resistance and ±4KV common mode / ±2KV differential mode surge protection against power fluctuations.
