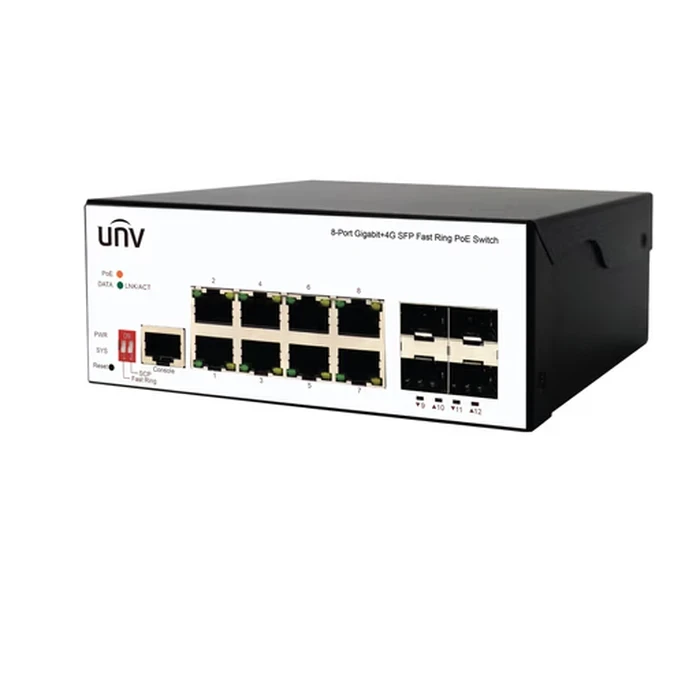

UNV 8-Port Industrial Gigabit Managed PoE Switch with 4 SFP Fiber Slots, 120W Budget & ERPS Ring Protection | ISW5000-8GT4GP-POE-IN
| Specification : | |
| Brand | Uniview (UNV) |
| Model Code | ISW5000-8GT4GP-POE-IN |
| Product Category | 8-Port Industrial Gigabit Managed PoE Switch |
| Network Port Configuration | 8 x 10/100/1000 Mbps PoE RJ45 Ports | 4 x 1000 Mbps SFP Slots (12 Ports Total) |
| PoE Standards & Power Budget | IEEE 802.3af/at | Max 120W Total PoE Budget (Up to 30W per single port) |
| PoE Pin Mode | Mode A: 1/2 (-), 3/6 (+) |
| Switching Capacity & Forwarding | 24 Gbps / 17.86 Mpps (9KBytes Jumbo Frame Support) |
| MAC Address Table Size | 8K Entries |
| Layer 2+ Network Management | Web/HTTPS, CLI (Console/Telnet/SSH), SNMP v1/v2c/v3, Syslog, NTP, DDM |
| L2/L3 Software Features | Static Routing, 4K VLANs, Selective QinQ, IGMP Snooping v1/v2/v3, LACP, QoS (8 Queues) |
| Redundancy & Security | ERPS Ring, STP/RSTP/MSTP, 802.1X, Radius/TACACS+, Dynamic ARP Inspection, L2–L4 ACL |
| Surge & ESD Protection Rating | ESD: Contact ±6KV, Air ±8KV | Surge: Differential ±2KV, Common ±4KV |
| Operating Temperature Range | -30 °C to 65 °C (-22 °F to 149 °F) |
| Chassis Dimensions & Power | 145 mm × 109 mm × 62.3 mm | DC 48–57V External Input (Adapter: AC 100–240V) |
| Ideal Applications | Industrial Automation, Highway CCTV Infrastructure, Smart Cities, and Power Substations |
-
8 Gigabit PoE Ports & 4 Gigabit SFP Slots: Outfitted with 12 total Gigabit interfaces, comprising 8 PoE-enabled 10/100/1000 Mbps RJ45 ports and 4 dedicated 1000 Mbps SFP slots for resilient fiber backhaul networks.
-
120W PoE Budget with Intelligent Management: Delivers up to 120W total PoE power (max 30W per port under IEEE 802.3af/at) complete with 24/7 PoE scheduling and automated PD alive-checking functions.
-
Advanced L2+ Management & Layer 3 Static Routing: Supports full WEB/CLI/SNMP management, Static IP Routing, IEEE 802.1Q VLANs (4K), QinQ, IGMP Snooping, LACP, and robust L2–L4 ACL security profiles.
-
ERPS Ring Redundancy & Loop Protection: Built-in ERPS (Ethernet Ring Protection Switching), STP/RSTP/MSTP, Loopback Detection, and ULPP uplink state monitoring ensure instant failover and zero down-time.
-

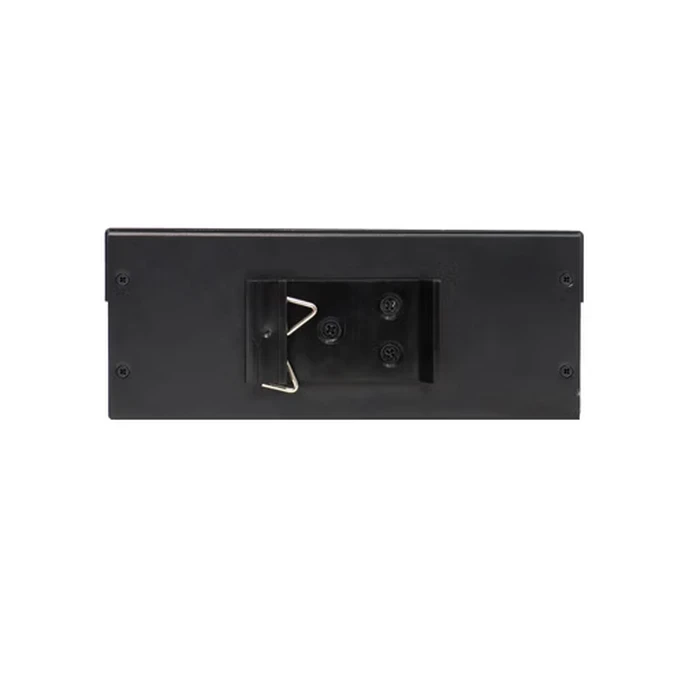

Extreme-Temperature Industrial Enclosure: Operates continuously from -30°C to 65°C with Contact ±6KV / Air ±8KV ESD resistance and ±4KV common mode surge protection inside a compact DIN-rail chassis (145 × 109 × 62.3 mm).
