UNV Cat6 UTP 24 AWG Solid Bare Copper Outdoor Bulk Cable Roll (305 Meters) with HDPE Insulation | CAB-LC3110B-E-IN
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | CAB-LC3110B-E-IN |
| Product Category | Outdoor Unshielded Twisted Pair (UTP) Cat 6 Cable |
| Cable Length | 305 Meters (1000 Feet) |
| Conductor Gauge & Material | 24 AWG Solid Oxygen-Free Copper (OFC) |
| Conductor Diameter | 0.52 +/- 0.03 mm |
| DC Resistance | Less than or equal to 95 ohms/km |
| Insulation Material | High-Density Polyethylene (HDPE) |

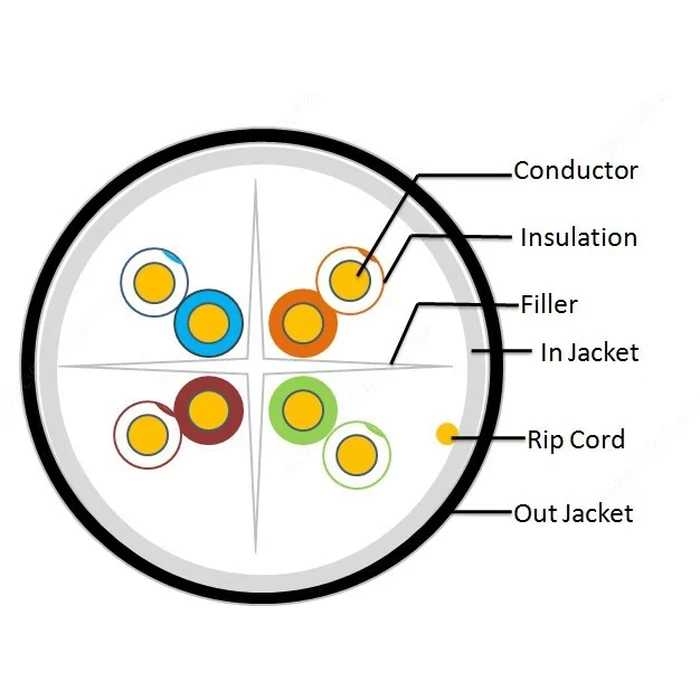

| Internal Construction | Central Crossing Backbone Separator & Rip-Cord Included |
| Outer Sheath Material | Weatherproof PVC (RoHS / REACH Compliant) |
| Outer Sheath Diameter | 5.8 +/- 0.3 mm |
| Operating Temperature | -20 degrees C to 60 degrees C |
| Test Standards Compliance | ISO/IEC11801, TIA-568-C.2 |
| Ideal Applications | Outdoor IP CCTV Cameras, Building-to-Building Network Links, Wireless AP Drops, and ISP Cabling |
-
305-Meter Continuous Spool Length: Supplied in a standard 305-meter (1000 ft) bulk carton box complete with internal rip-cord for fast, custom long-distance runs.
-
24 AWG Solid Bare Oxygen-Free Copper (OFC): Built with 0.52 mm solid pure copper conductors to ensure maximum signal conductivity, low attenuation, and optimal performance over long distances.
-
Central Crossing Backbone Separator: Features an internal spline separator between pair cores to eliminate near-end crosstalk (NEXT) and signal interference.
-
High-Density Polyethylene (HDPE) Insulation: Utilizes premium HDPE insulation over each conductor pair to preserve structural layout and signal stability under physical stress.
-
RoHS/REACH Compliant Weatherproof Sheath: Encased in a durable PVC sheath rated for operating temperatures from -20 degrees C to 60 degrees C for reliable outdoor and harsh-environment deployments.
