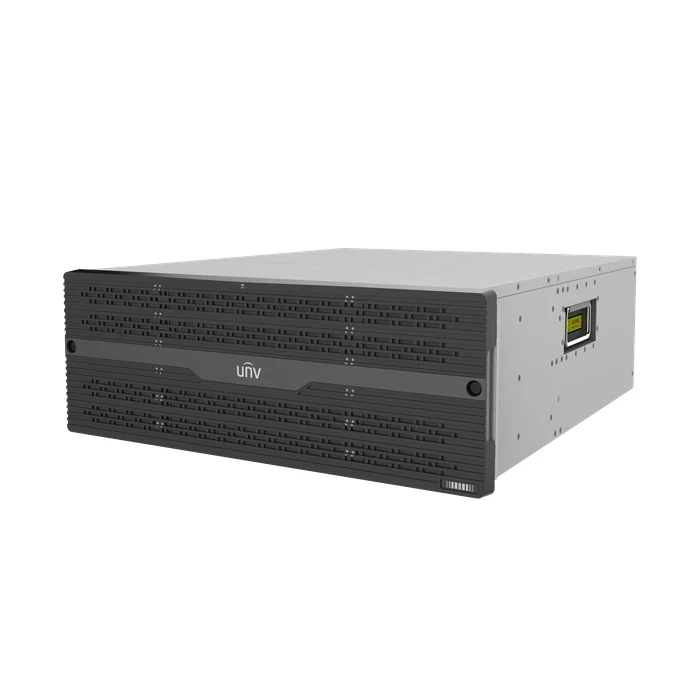

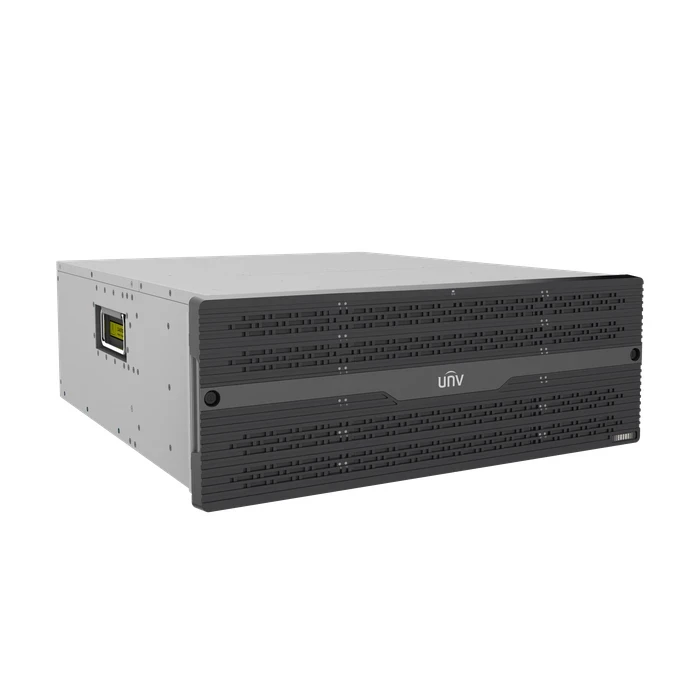

UNV 24-Bay 4U Unified Network Storage Server with Intelligent RAID (ISET), Data Safe Box UPS, 320-Ch Recording & iSCSI | Model No. VX1624-C@V3
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | VX1624-C@V3 (NI-VX1624-C) |
| Product Category | 24-Bay Unified Network Storage Server |
| Form Factor & Dimensions | 4U Rackmount Chassis / 175 mm × 482 mm × 583 mm |
| Processing & Memory | Intel 64-Bit Multi-Core Processor / 4GB ECC DDR4 RAM |
| HDD Slots & Disk Capacity | 24 SATA Hard Disk Slots / Supports 4TB to 24TB Disks |
| RAID & Array Functions | JBOD, RAID 0, 1, 5, 6 / Global & Dedicated Hot Spare / ISET & SEC Technology |
| Data Protection Features | Data Safe Box Cache Protection, Embedded UPS Battery, Super Error Correction |
| Video Performance Throughput | 320-Channel (640 Mbps) Recording | 160-Channel Forwarding | 32-Channel Playback |
| Front-End Network Interfaces | 3x 10/100/1000 Mbps GbE Ports (Optional 4-Port 2.5GE or 2/4-Port 10GE SFP+) |
| Expansion & Control Interfaces | 1x PCIe Slot, 1x VGA, 2x USB Ports, 1x RS232 (RJ45) Serial Port |
| Host Connections & Protocol | Up to 1,024 Host Connections / iSCSI & Storage Protocols |
| Power Supply & Consumption | 100V–127V / 200V–240V AC (Redundant Hot-Swap Power Modules) / Power < 331W |
| Operating Environment | Working Temp: 5°C to 40°C (Recommended: 10°C to 35°C) |
| Compliance Standard | NDAA Compliant / CE / FCC / CB / RoHS / WEEE |
| Ideal Applications | Enterprise Control Centers, Citywide Surveillance, Industrial Campuses, and Data Centers |
-
24 HDD Bays & 576TB Capacity (4U Rack Enclosure): High-density 4U enclosure housing up to 24 SATA hard drives (4TB to 24TB per disk) for up to 576TB raw storage capacity.
-
Intelligent RAID Engine (ISET) & SEC Error Correction: Instant RAID initialization, dynamic reconstruction speed adjustment, and Super Error Correction (SEC) for auto-repairing bad sectors during array operation.
-
Embedded UPS & Data Safe Box Cache Protection: Integrated online UPS and Data Safe Box memory cache protect unwritten data from loss during sudden electrical power outages.
-
320-Channel Recording & iSCSI Protocol: Supports 320-channel (640 Mbps) video recording, 160-channel forwarding, 32-channel playback, and iSCSI hosting for up to 1,024 connections.
-
High-Availability Hardware & Redundant Power: Intel 64-bit multi-core architecture with 4GB ECC DDR4 memory, redundant hot-swappable power supplies, variable-speed cooling fans, and full NDAA compliance.
