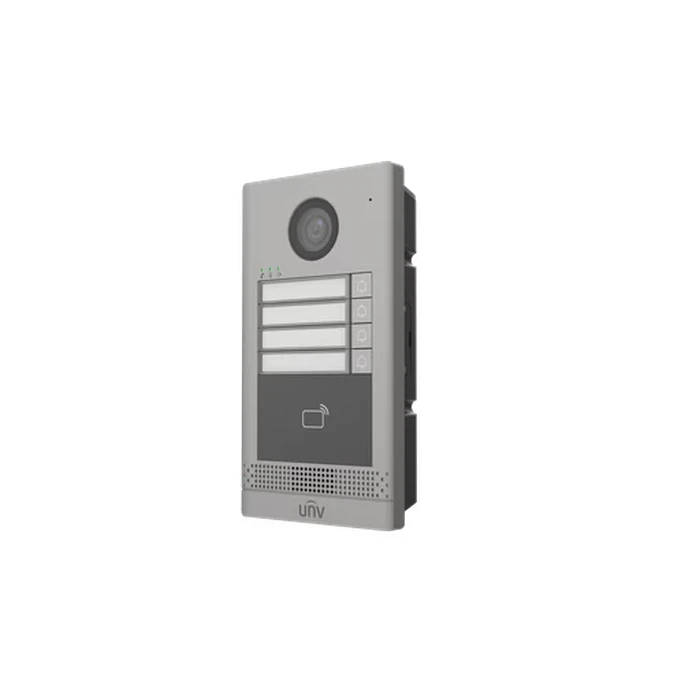

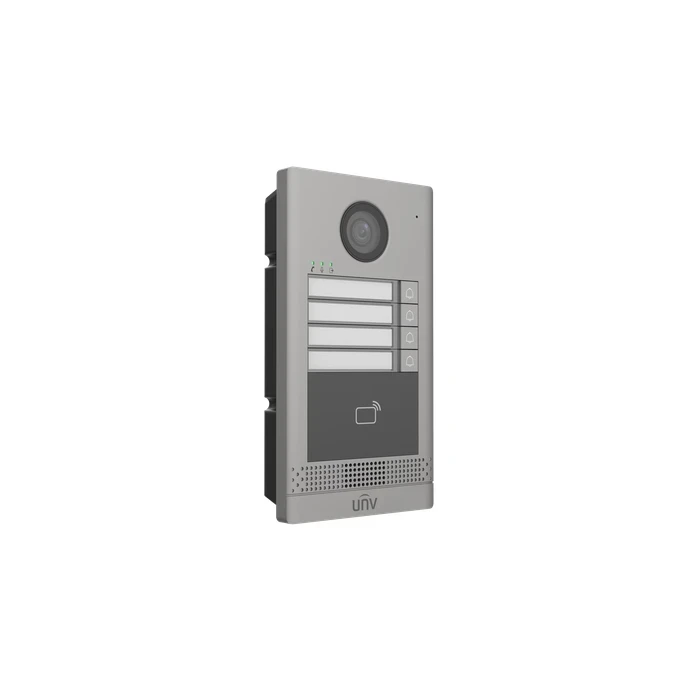

UNV 4-Call Button Villa Door Station with DWDR Camera, 10,000 IC Card Reader, Standard PoE, Dual Lock Relays & IP65/IK08 Rating | Model No. OEU-202S-HMK4
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | OEU-202S-HMK4 |
| Product Category | 4-Call Button Villa Door Station |
| Operating System | Linux OS |
| Call Buttons & Tenants | 4 Physical Call Buttons (Independent Calling) |
| Camera Lens & FOV | 2.0 MP Camera / Diagonal 127.9°, Horizontal 106.9°, Vertical 56.9° |
| Night Vision & Image Enhancement | Adaptive IR Light Compensation / Digital WDR (DWDR) |
| Card & Station Capacity | 10,000 IC Cards / Links Up to 20 Connected Indoor Stations |
| Audio Quality & Codecs | Omnidirectional Mic & Speaker / Noise Suppression, Echo Cancellation, AGC (PCM, G.711, MP3) |
| Network Interface | 1x 100Mbps Ethernet Port (Supports IEEE 802.3af PoE) |
| Door Lock & Expansion I/O | 2x Door Locks (Electric Lock/Door Magnet), 4x IO Inputs, 1x RS485, 1x Wiegand, 1x Tamper Button |
| Housing & Environmental Ratings | IP65 Weatherproof / IK08 Vandal-Proof / Operating Temp: -40°C to 60°C |
| Power Supply & Consumption | PoE (IEEE 802.3af) Max 6.48W / DC 12V ± 25% Max 5.35W |
| Mounting Option | Wall Mount |
| Dimensions & Weight | 96 mm × 176 mm × 33 mm / Weight: 680 g |
| Ideal Applications | Quadplex Villas, Four-Family Residences, Shared Commercial Offices, and Multi-Tenant Entrances |
-
4 Call Buttons for Quadplex & Multi-Tenant Setup: Features 4 independent physical call buttons designed to call separate indoor monitor stations across four-family homes or shared commercial offices.
-
10,000 IC Card Reader & 20 Indoor Station Capacity: Built-in IC card reader supports up to 10,000 card credentials and links with up to 20 connected indoor stations.
-
DWDR Camera with Adaptive IR Night Vision: Captures clear video with Digital Wide Dynamic Range (DWDR) and adaptive IR night vision across a wide 127.9° diagonal field of view.
-
IP65 Weatherproof, IK08 Vandal-Proof & Anti-Tamper: Built for extreme outdoor conditions (-40°C to 60°C) with IP65 weather resistance, IK08 impact protection, and an integrated tamper alarm switch.
-
Standard PoE, Dual Locks & Comprehensive I/O: Supports standard IEEE 802.3af PoE power (or DC 12V), 2 door lock outputs (electric lock/door magnet), 4 IO inputs, Wiegand, RS485, and clear bidirectional audio.
