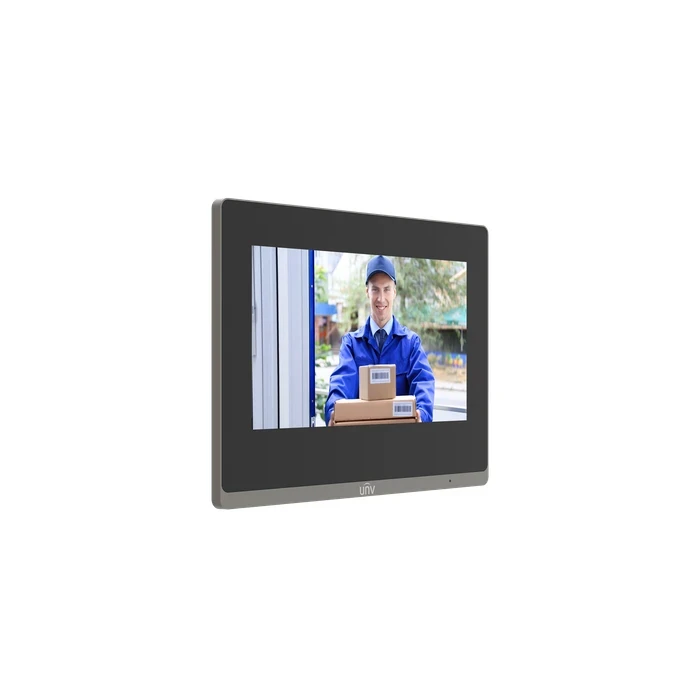

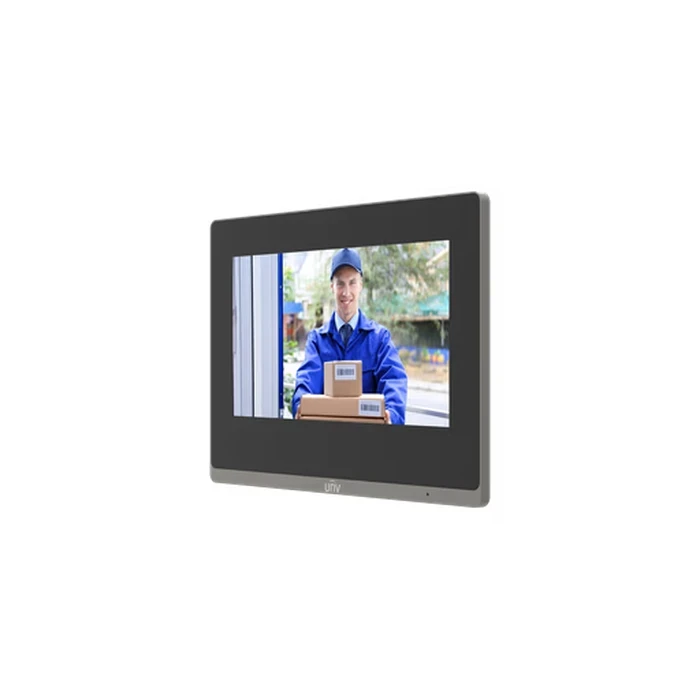

UNV 7" Ultra-Thin Touch Screen Video Door Phone Indoor Station with Wi-Fi, Standard PoE, 20-Device IP Camera Monitoring & NDAA Compliance | Model No. OEI-372S-H-W
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | OEI-372S-H-W |
| Product Category | Video Door Phone Indoor Station |
| Operating System | Linux OS |
| Screen Display | 7.0-Inch Ultra-Thin TFT LCD Capacitive Touch Screen (1024 x 600 Resolution) |
| Audio Processing | Omnidirectional Mic & Built-in Speaker / Noise Suppression, Echo Cancellation, AGC |
| Network Interfaces | 1x 100Mbps RJ45 Port / Built-in 2.4GHz Wi-Fi 4 (IEEE 802.11b/g/n) |
| System Device Capacity | Up to 20 Connected Devices (IP Cameras, Door Stations, up to 2 NVRs, Doorbells) |
| Extension Linking | Connects Up to 19 Extension Indoor Stations |
| Storage & Snapshot Capacity | TF Card Slot Expansion / 200 Screenshots / 200 Zone Alarm Records |
| I/O & Communication Interfaces | 8x IO Inputs, 2x IO Outputs, 1x RS485 Interface, 1x Power Input |
| Housing Construction | Durable ABS Enclosure with Glass Touch Panel |
| Power Supply & Consumption | DC 12V ± 25% / Standard PoE (IEEE 802.3af) | Power Consumption < 10 W |
| Operating Environment | Temperature: -10°C to +55°C / Humidity: 10% to 90% RH (Indoor Placement) |
| Compliance Standard | NDAA Compliant |
| Dimensions & Weight | 193 mm × 143 mm × 25 mm / Weight: 360 g |
| Ideal Applications | Smart Residential Apartments, Villas, Commercial Offices, and Multi-Tenant Buildings |
-
7" HD Capacitive Touch Screen: Ultra-thin 1024 x 600 HD TFT LCD glass-panel display providing clear video live views and an intuitive touch menu interface.
-
Standard PoE & 2.4GHz Wi-Fi Networking: Supports single-cable IEEE 802.3af PoE power/data installation along with 2.4GHz Wi-Fi 4 for flexible network connectivity.
-
Clear Bidirectional Audio Processing: Equipped with an omnidirectional microphone and built-in speaker featuring active noise suppression, echo cancellation, and Automatic Gain Control (AGC).
-
20 Device Connections & IP Camera Monitoring: Links with up to 20 security devices simultaneously, including outdoor door stations, IP cameras, and up to 2 NVRs for live view streaming.
-
Comprehensive Alarm I/O & NDAA Compliant: Outfitted with 8 alarm inputs, 2 alarm outputs, RS485 interface, TF card expansion slot, and full NDAA compliance for enterprise security standards.
